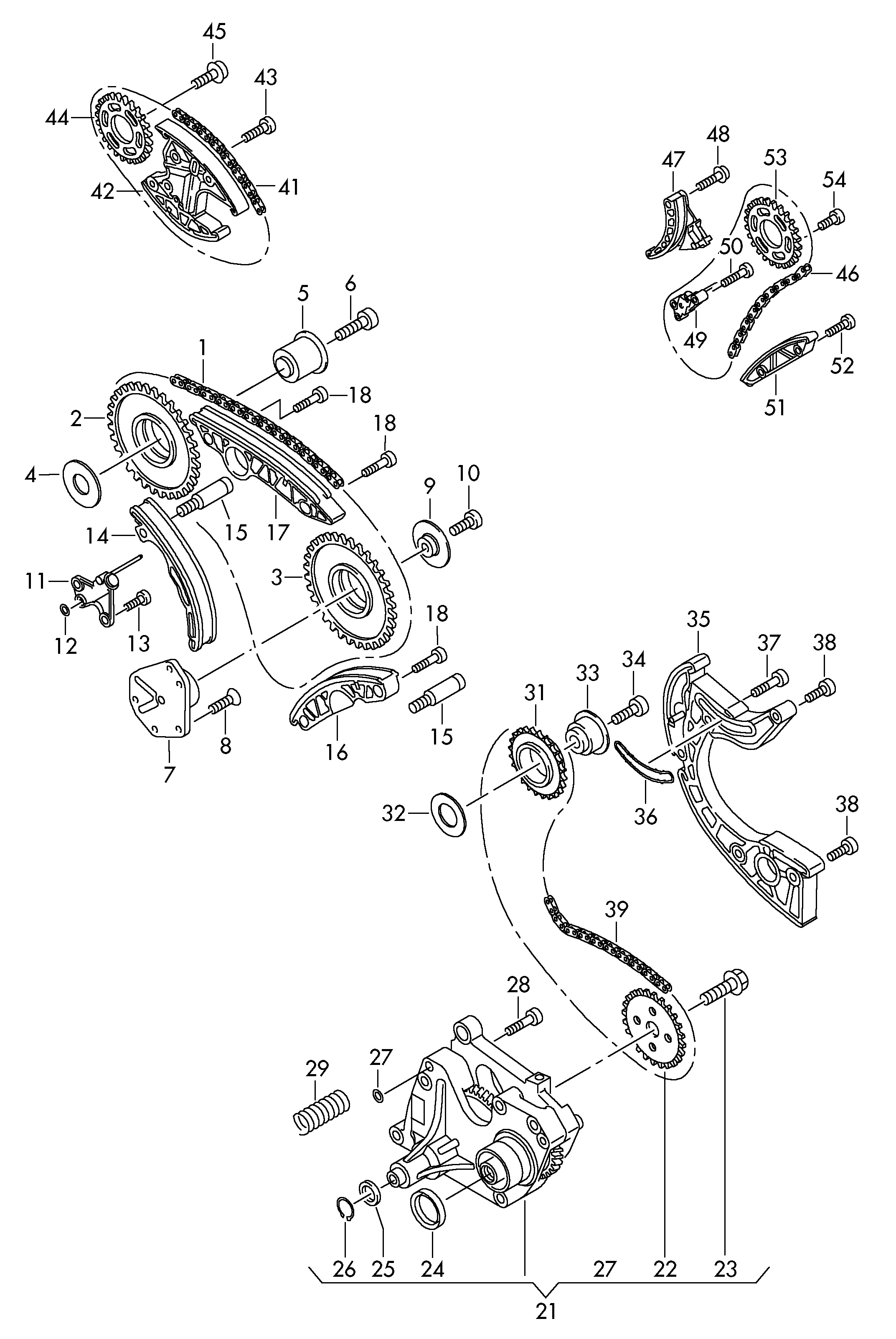

Timing chain

【3】057109077 ASM-SPROCKET(DRIVE)

【53】057109116H ASM-SPROCKET(DRIVE)

【44】057109116J ASM-SPROCKET(DRIVE)

【49】057109217J Chain tensioner

【42】057109218K Chain tensioner

【7】057109224B Bolt-bearing

【5】057109224D Bolt-bearing

【16】057109469G Guide rail

【47】057109510A Chain tensioner

【51】057109513B SLIDING RAIL/CHAIN-S(W221)

【2】059109077E ASM-SPROCKET(DRIVE)

【1】059109229J Timing chain

【41】059109229K Timing chain

【46】059109229M Timing chain

【11】059109467E Chain tensioner

【35】059109507D Chain tensioner

【24】079103051J Shaft seal ring

【25】079109135E Spacer sleeve

【36】079109139M DICHTUNG

【9】079109435G WASHER-THRUST

【14】079109510M Guide rail

【31】079109570AD ASM-SPROCKET(DRIVE)

【22】079109570AP ASM-SPROCKET(DRIVE)

【26】N0124161 RING-SNAP

【38】N10124304 Bolt, hexagon

【52】N10156205 Bolt, hexagon

【10】N10451409 Bolt, self-locking

【50】N10554002 SCREW

【28】N10582103 Bolt, semi-circular countersunk, w/inner

【34】N10660901 BOLT

【12】N90364901 SEAL

【27】N90740801 SEAL

【23】N90893202 BOLT

【8】N90954903 Countersunk bolt

【54】N91052201 SCREW

【4】WHT000124 WASHER

【48】WHT000265 Bolt (combination), hexagon
