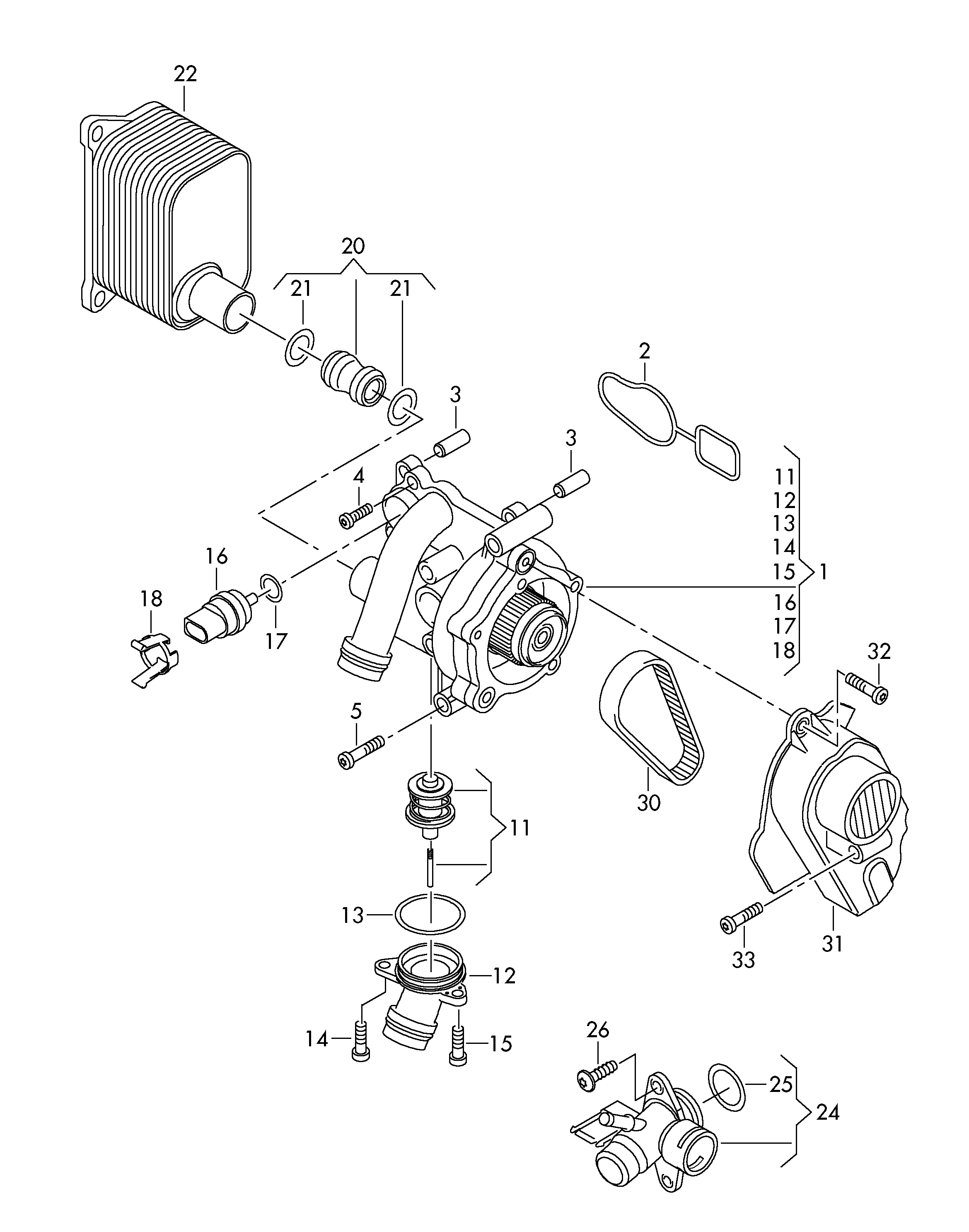

WATER PUMP ASSEMBLY

【16】06A919501A COOLANT,TEMP SENR/SEAT/SKDA/VW

【31】06H109121G Shroud-toothed belt

【11】06H121113B Thermostat:

【13】06H121119E SEAL

【12】06H121121K cover for thermostat

【20】06H121131C Flange

【18】06H121142C Retainer spring:

【30】06H121605E TIMING BELT 253T/30M-PASSAT

【2】06J121119 Seal ring:

【24】06J121132G Water connection

【3】N0131994 CYLINDER PIN

【33】N10156206 Bolt, hexagon

【14】N10196103 Bolt, oval

【15】N10347003 BOLT

【4】N10413405 BOLT

【5】N10470705 SCREW

【17】N90316801 O RING

【26】N91099101 BOLT

【25】WHT001688 O RING

【21】WHT002001 O RING

【32】WHT005227 Bolt, hexagon
