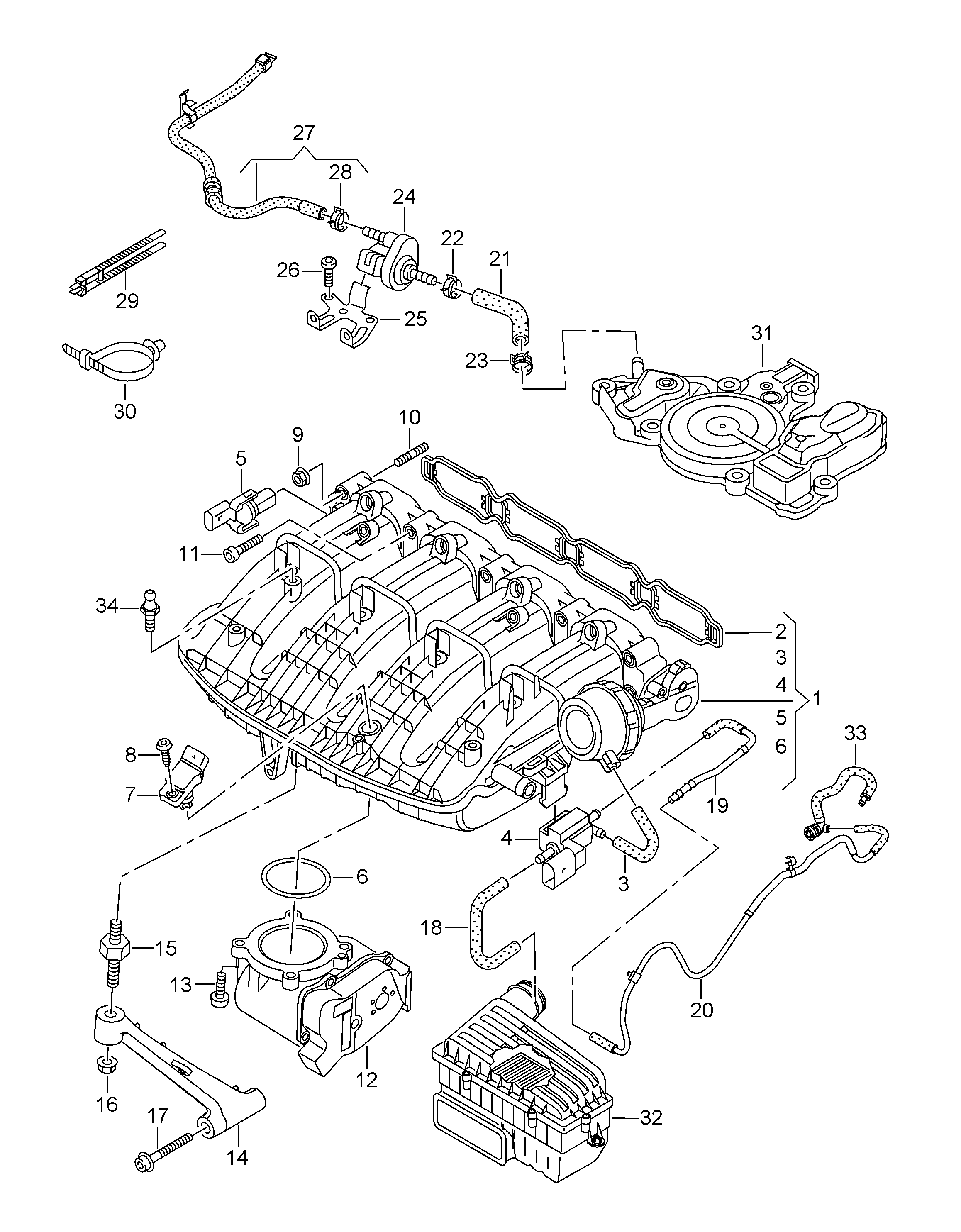

DUCT-AIR

【15】06H121273D RUBBER MOUNTING/A4/A6/A8/2009

【15】06H121273F Mounting-rub metal The deviation may have been obscured:

【4】06H906283F Valve-solenoid

【4】06H906283J Valve-solenoid

【24】06H906517T VALVE, PCV

【2】06K129717A SEALING GASKET

【6】06K133073 SEALING GASKET

【3】06K133595 HOSE-CONNECTION

【19】06K133773 HOSE

【19】06K133773C HOSE

【5】06K907386B 06K907386D

【14】06L129723C BRACKET ASSY-AIR INTAKE

【21】06L133514A HOSE-CONNECTION

【25】06L133519C Bracket, AKF valve

【7】06L906051B SENSOR, MAP

【29】4A0820199 Cable cable, double lock

【9】N01508210 NUT

【16】N10609203 NUT

【13】N10626101 BOLT

【26】N10654902 Bolt, flat w/insert, female

【10】N10770201 BOLT STUD M14

【23】N90686701 Clip-band

【8】N90732103 Tapping bolt, hexagon

【28】N90768301 Clip-hose

【11】N91097301 BOLT

【17】N91170301 SCREW

【30】WHT008084 Cable band
