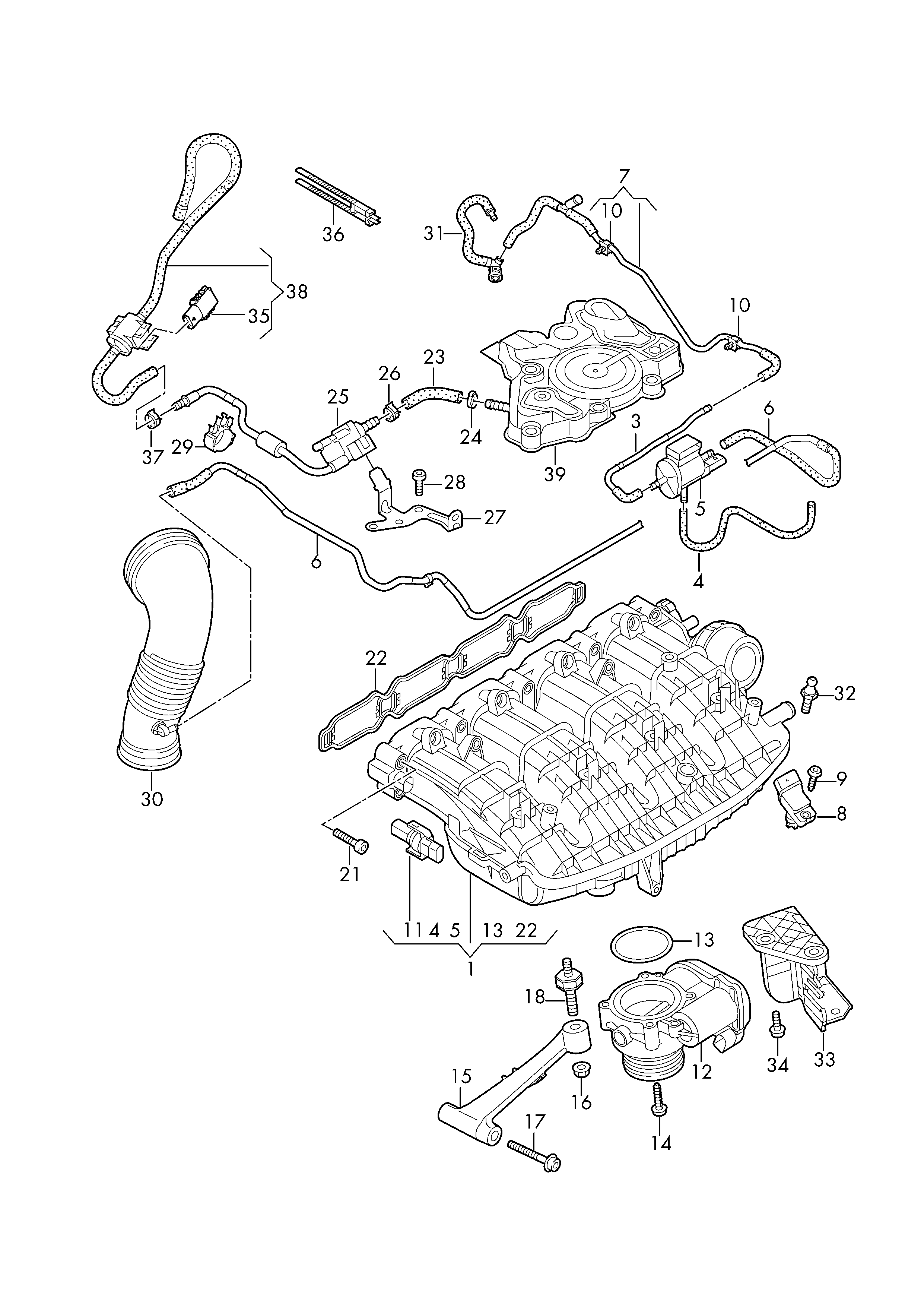

Sensor assy-pressure

【18】06H121273D RUBB MOUNT

【5】06H906283J Valve-solenoid

【22】06K129717A Grommet

【13】06K133073 Grommet

【7】06K133241AP HOSE-CONNECTION

【4】06K133595 HOSE-CONNECTION

【3】06K133773C HOSE

【3】06K133773G HOSE

【11】06K907386D 06K907386D

【15】06L129723C BRACKET ASSY-AIR INTAKE

【23】06L133514A HOSE-CONNECTION

【23】06L133514H HOSE-CONNECTION

【27】06L133519C Bracket, AKF valve

【6】06L133583G HOSE-CONNECTION

【25】06L133781AJ Connector, w/activated carbon filter valve

【25】06L133781AM Connector, w/activated carbon filter valve

【36】4A0820199 Cable cable, double lock

【16】N10609203 Nut, hexagon

【14】N10626101 BOLT

【14】N10626102 BOLT

【28】N10654902 Bolt, flat w/insert, female

【21】N10865901 Bolt, rh/lh

【37】N90686701 Clip-band

【9】N90732103 Tapping bolt, hexagon

【26】N90770201 Clip-band

【24】N90986501 Clip-band

【21】N91097301 BOLT

【17】N91170301 SCREW

【10】WHT008084 Cable band
