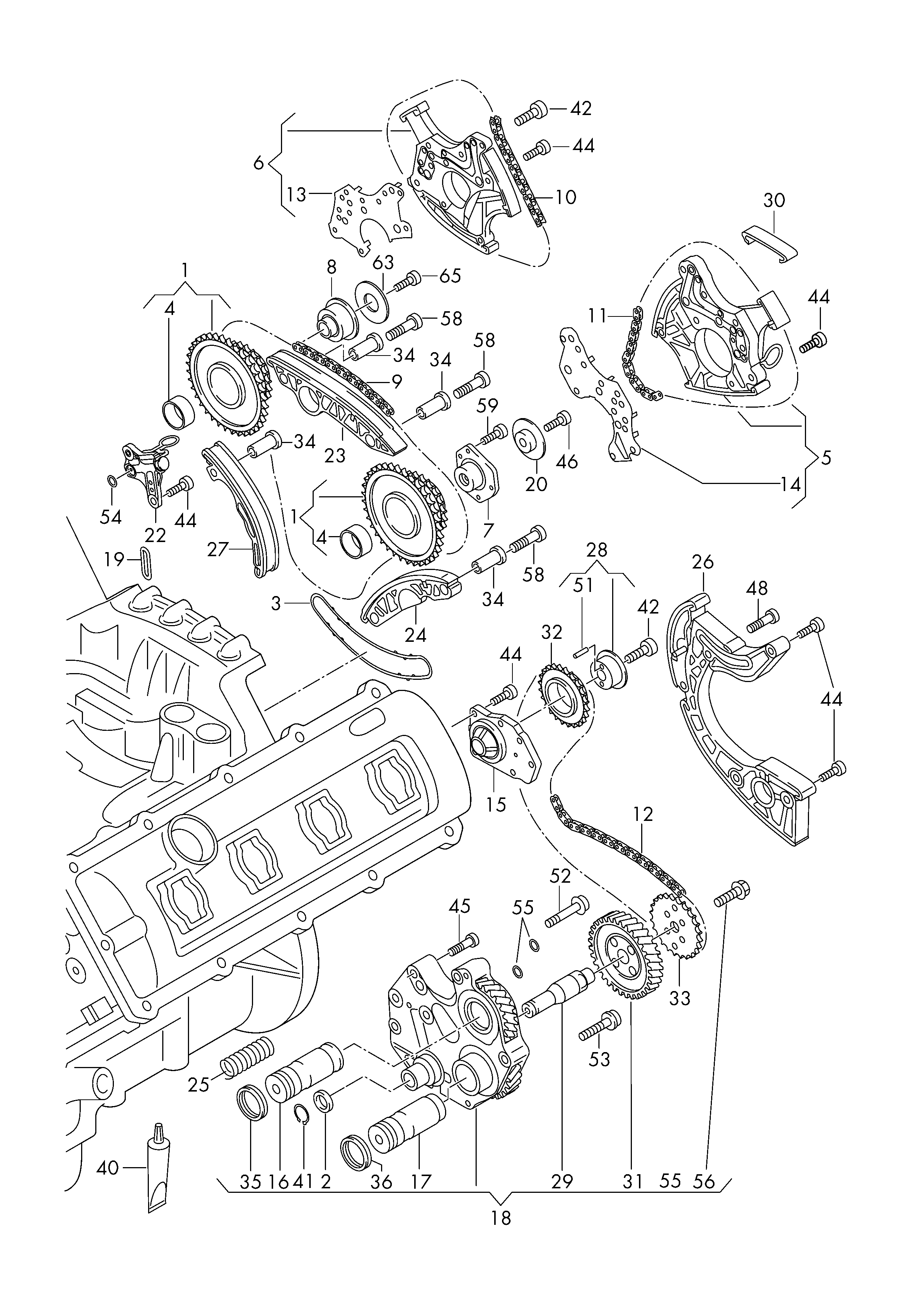

CHAIN TIGHTENER

【25】059109481 Spring-press

【28】06E109220A Bolt-bearing

【9】06E109465AM TIMING CHAIN E38/E39/X5

【11】06E109465AS TIMING CHAIN E38/E39/X5

【10】06E109465AT TIMING CHAIN E38/E39/X5

【9】06E109465BC TIMING CHAIN E38/E39/X5

【35】079103051E Shaft seal ring

【36】079103051J Shaft seal ring

【15】079103337G BRACKET

【1】079109077G ASM-SPROCKET(DRIVE)

【2】079109135E Spacer sleeve

【3】079109139A SEALING GASKET

【14】079109139J SEALING GASKET

【13】079109139K SEALING GASKET

【19】079109139L SEALING GASKET

【20】079109180A Bearing-axial

【63】079109180B Bearing-axial

【5】079109217R CHAIN TIGHTENER

【5】079109217S CHAIN TENSIONER

【6】079109218R CHAIN TIGHTENER

【6】079109218S CHAIN TENSIONER

【28】079109220A Bolt-bearing

【8】079109224E Bolt-bearing

【7】079109224F Bolt-bearing

【11】079109229K TIMING CHAIN E38/E39/X5

【10】079109229L TIMING CHAIN E38/E39/X5

【24】079109469AL Guide rail

【23】079109469AM Guide rail

【30】079109470 Spg plate

【22】079109507M CHAIN TIGHTENER

【22】079109507T CHAIN TIGHTENER

【27】079109510M Guide rail

【33】079109570AT ASM-SPROCKET(DRIVE)

【40】D176501A1 Sealant

【41】N0124161 RING,RETAINING

【44】N10124304 Bolt, hexagon

【48】N10554005 SCREW

【42】N10660901 BOLT

【54】N90364901 O RING

【55】N90740801 O RING

【46】N90888502 BOLT

【56】N90893202 BOLT

【59】N90954903 Countersunk bolt

【59】N90954905 Countersunk bolt

【53】N91046302 Bolt (combination), multitooth cartridge

【52】N91119601 SCREW

【58】N91129001 SCREW
