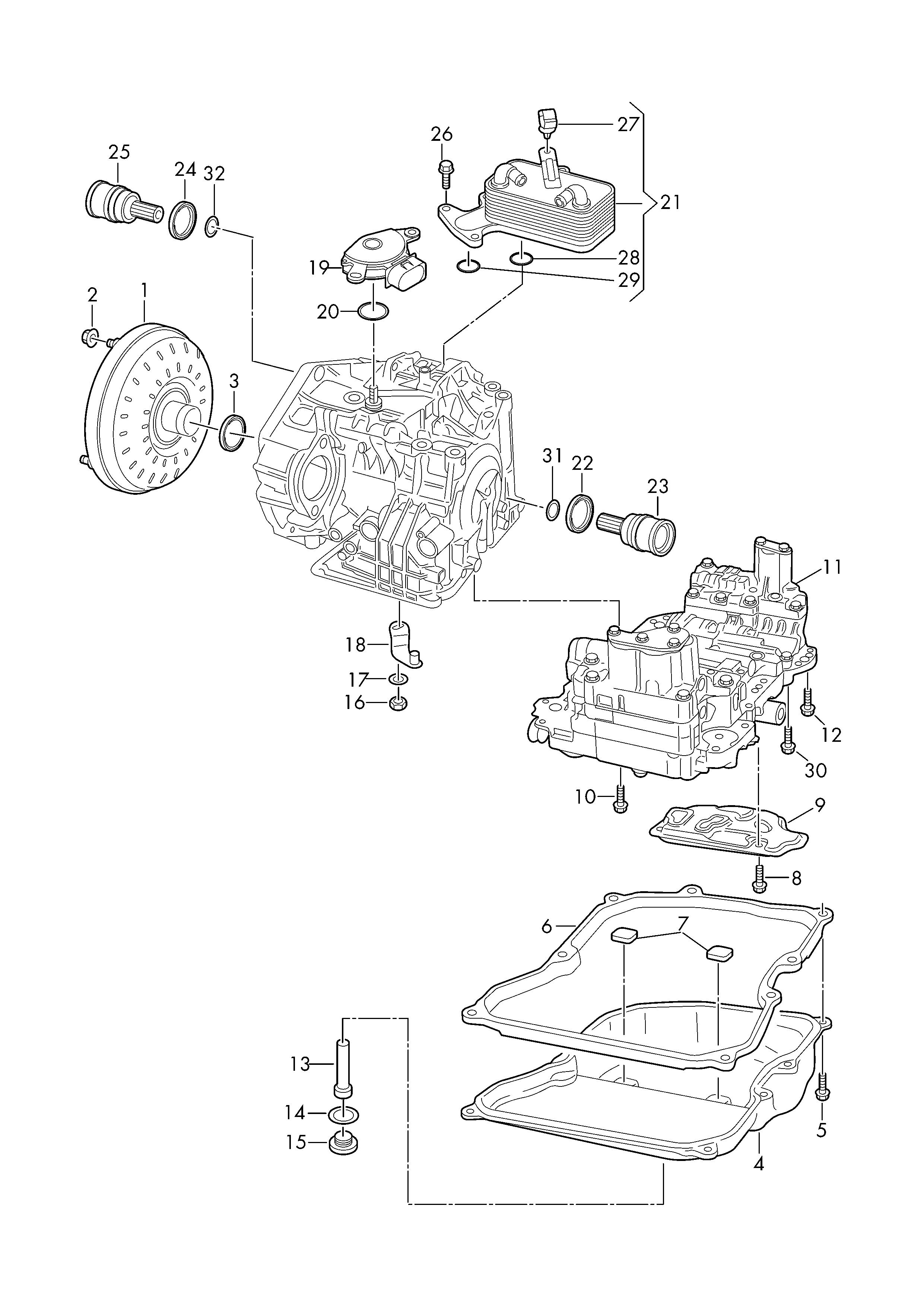

OIL COOLER/AUDI A6/A7/A8

【14】09D321181B SEALING RING

【20】09D321199 Seal ring-radial

【7】09D321368 Magnet

【24】09G301189 Shaft seal ring

【18】09G321175 ROD

【29】09G321181 SEALING RING

【28】09G321181A SEALING RING

【4】09G321361B PAN,OIL

【4】09G321361D PAN,OIL

【13】09G321363H TUBE-H/UNIT TO FR,LH

【13】09G321363K TUBE-H/UNIT TO FR,LH

【6】09G321370 Grommet

【17】09G321381 Set, clip

【1】09G323571R TORQUE CONVERTER/X5/E53

【11】09G325039F Case, valve

【9】09G325429D Strainer, oil

【9】09G325429E Strainer, oil

【32】09G409528 SEAL

【3】09K321243 Seal ring-radial

【27】3W0971838 Cable band

【2】N10169201 NUT,HEX 6MM

【26】N10642103 BOLT

【12】WHT000307 BOLT

【5】WHT000309 BOLT

【15】WHT000310A Plug-screw

【10】WHT000311 BOLT

【30】WHT000313 BOLT

【16】WHT001425 NUT,HEX 6MM

【8】WHT001866 Bolt, hexagon
