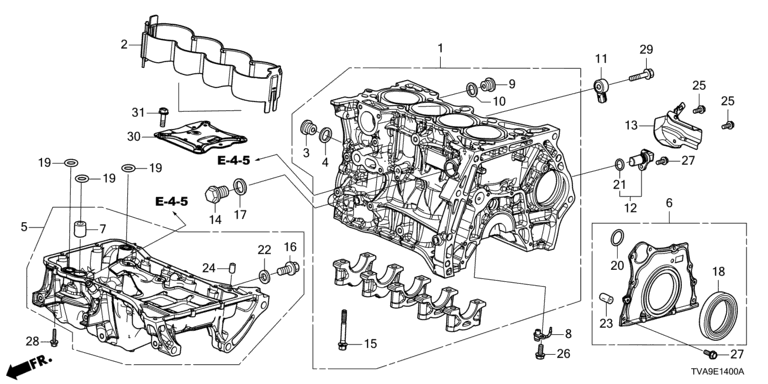

PAN ASSY-OIL

【1】1100059B010 BLOCKASSY,CYLN

【2】111046A0A00 Shim comp, cooling

【3】11106PWA300 BOLT,SEALING 24MM

【4】11107PWA300 Washer, sealing 24

【5】112005PAA01 PAN ASSY-OIL

【6】113005AAY00 CASE ASSY,OIL SEA

【7】15123PCX003 Pin, dowel, 18X13

【8】152806A0A01 BODY COMP. OIL JET

【10】15302PE0300 Washer, 14

【11】3053059BJ01 SENSOR-KNOCK

【12】3750059BJ01 SEN AY-CRANKSHAFT

【13】3750159B000 Cover, crank sensor

【14】90001PM3003 Bolt drain 28mm

【15】9000859B003 Bolt, wash.10x85

【16】90009R70A00 BOLT, PLUG, 14MM

【17】90401PR4000 Washer, sealing 28mm

【7】9070359B000 Pin, dowel, 18X13

【18】912145AAY01 Oil seal, low torque 80X94X8

【19】91301RNAA01 O-ring, 20X2.3

【20】913085R0003 O-ring, 35.2x2.4

【21】91333PNC006 GLASSCOMP,SIGHT

【22】9410914000 Washer, plug 14mm

【23】9430106100 DOWEL PIN,6X10

【24】9430112160 PIN,KNOCK,12X16

【25】957010601405 BOLT,FLANG,6X14

【26】957010601408 BOLT,FLANG,6X14

【27】957010601608 Bolt 6X16, flange

【31】957010602008 Bolt, flange 6X20

【28】957010602508 BOLT,FLANGE,6X25
