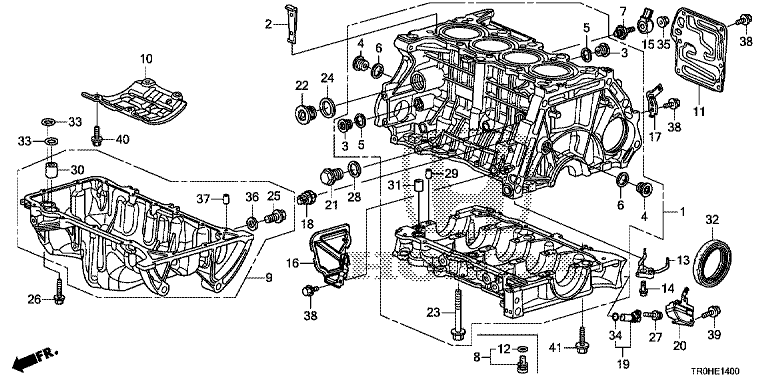

PAN ASSY-OIL

【1】11000R1AA00 BLOCK ASSY., CYLINDE

【1】11000R1PH00 BLOCK ASSY., CYLINDE

【2】11103RNAA01 FOOTREST ASSY

【3】11105RNAA00 BOLT, SEALING 20MM

【4】11106PWA300 BOLT,SEALING 24MM

【5】11106RNAA00 Washer, sealing 20

【6】11107PWA300 Washer, sealing 24

【7】11109R1AA00 Bolt, knock sensor

【8】11135RZP000 ORIFICE ASSY,LOWE

【9】11200R0A000 PAN ASSY-OIL

【10】11221RNAA00 Plate, baffle

【11】11850RNAA00 Mask comp

【12】15142PE0000 O-ring 4.8x1.9

【13】15280RZP000 BODY COMP. OIL JET

【14】15290RZP000 BOLT,COMP,OIL JET

【15】30530R1AA01 Sensor, knock

【16】32179R1AA00 Insulator, oil pressure switch

【18】37241RNAA01 Switch assy, oil press (DENSO)

【19】37500R60U01 SENSOR COMP,CRANK

【20】37501R1AA10 Cover, crank sensor

【21】90001PM3003 Bolt drain 28mm

【22】90002RNAA00 Bolt, sealing 36

【23】90007RNAA01 Bolt, wash.10x97

【24】90008RNA000 Washer, sealing 36

【25】90009PY3000 Bolt drain 14mm

【26】90016RNAA00 Bolt 6X35, flange

【27】90028PNB003 BOLT,SPECIAL 6X20

【28】90401PR4000 Washer, sealing 28mm

【30】90703PE0000 Dowel, pin, 18X22

【32】91214PWAY01 Oil seal, 80X98X10

【33】91301RNAA02 O-ring, 20X2.3

【34】91333PNC006 SEAL,RING

【35】9405008080 Nut, flange 8mm

【36】9410914000 Washer, plug 14mm

【37】9430108100 Dowel, pin, 8X10

【38】957010601208 Bolt, flange 6X12

【39】957010601405 BOLT,FLANGE,6X14

【40】957010601408 BOLT,FLANGE,6X14

【41】957010803508 BOLT,FLANGE 8X35
