PAN ASSY-OIL
Part number: 11200-R5A-000
Brand: Honda

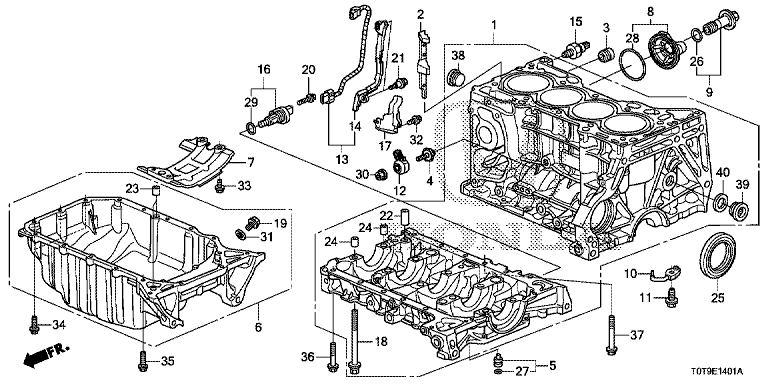

Related parts
【1】11000R40A01 BLOCK ASSY., CYLINDE
【38】11106PNA300 BOLT, SEALING 20MM
【39】11106PR4013 BOLT SEALING 28MM
【3】11108PT0003 Bolt, sealing, 18mm
【4】11109R1AA00 Bolt, knock sensor
【5】11135RAAA00 ORIFICE ASSY,LOWE
【8】11500R40A00 CAP COMP,OIL GALL
【9】11550RZA000 BOLT COMP,GALLERY
【10】15280R40A01 BODY COMP. OIL JET
【11】15290R40A01 BOLT,COMP,OIL JET
【13】32113RL5A00 Sub cord, crankshaft sensor
【15】37241RNAA01 Switch assy, oil press (DENSO)
【16】37500R40A01 SENSOR COMP,CRANK
【17】37503RL5A00 Cover, crank sensor
【18】90006PNA003 Bolt, wash.11x95
【19】90009PY3000 Bolt drain 14mm
【20】90028PNB003 BOLT,SPECIAL 6X20
【21】90051RGA003 Bolt, spl 6X20.8
【40】90401PR4000 Washer, sealing 28mm
【22】90703PE0000 Dowel, pin, 18X22
【23】90715PC6000 PIN, DOWEL, 13X20
【24】90715PNA000 Dowel, pin, 13X14
【25】91214RZA004 Oil seal, 80X98X10
【27】91306PJ4000 O RING, 6.8X1.9
【28】91316PE7730 ORING,19.8X1.9
【30】9405008080 Nut, flange 8mm
【31】9410914000 Washer, plug 14mm
【32】957010601405 BOLT,FLANGE,6X14
【33】957010601408 BOLT,FLANGE,6X14
【34】957010603008 Bolt 6X30, flange
【35】957010603208 Bolt 6X32, flange
