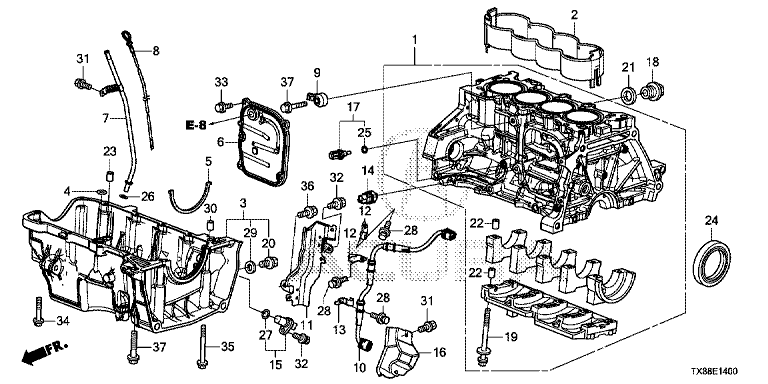

PAN ASSY-OIL
Part number: 11200-RW0-000
Brand: Acura
Related parts
【4】11203PWA003 O-RING,T/F CASE
【11】32742RB0000 Bracket, crank sensor harness
【14】37241RNAA01 Switch assy, oil press (DENSO)
【15】37500RB0006 SENSOR COMP,CRANK
【17】37700RW0A01 Sensor assy-oil temperature
【18】90001PM3003 Bolt drain 28mm
【19】90008PM0003 Bolt, wash.10x112
【20】90009PY3000 Bolt drain 14mm
【21】90401PR4000 Washer, sealing 28mm
【22】90702PE0000 Dowel, pin, 12X18
【23】90705PT0000 PIN, DOWEL 16X22
【24】91214PWAY01 Oil seal, 80X98X10
【24】91214RE0H01 Oil seal, 80X98X10
【25】91307RW0A01 O-RING,9.5X1.9
【26】91309PJ7010 O-RING, 11.5X3.5
【28】934010501208 BOLT-WASHER,5X12
【29】9410914000 Washer, plug 14mm
【30】9430112200 DOWEL,PIN,12X20
【31】957010601208 Bolt, flange 6X12
【32】957010601608 Bolt 6X16, flange
【33】957010601808 Bolt, flange, 6X18
【34】957010603208 Bolt 6X32, flange
【35】957010607508 BOLT,FLANGE,6X75
