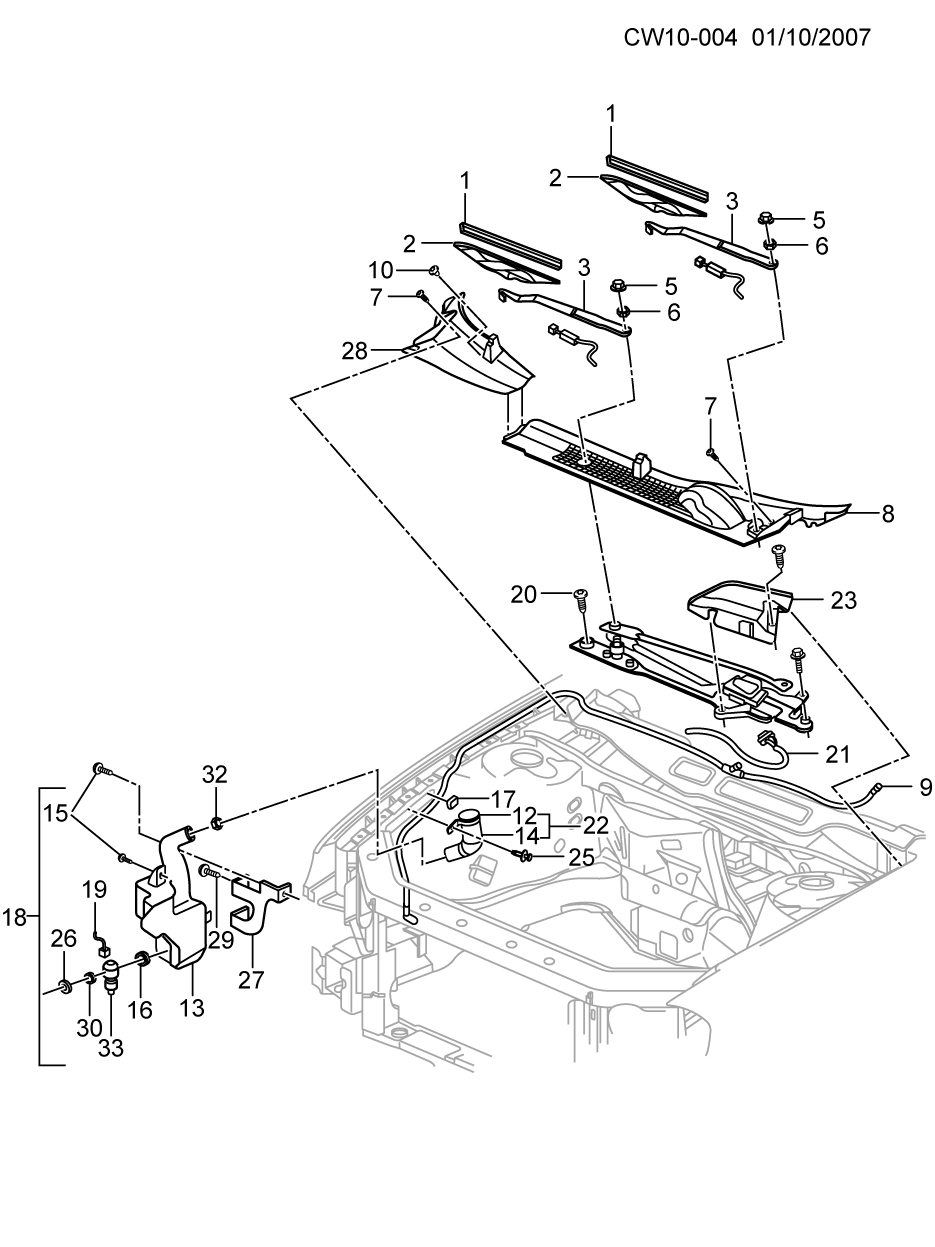

Bracket, window washer tank (18 parts)

【010】10281610 Plate set, air inlet (bolt, super stud) (9mm) (push-in

【008】10327403 Strainer-air inlet

【028】10327404 Strainer-air inlet

【003】10435217 ARM A-WIPER

【003】10435218 ARM A-WIPER

【009】10435228 Hose, w/shld washer pump

【022】10435230 Pipe, front window washer tank tank filler (incl. 12,14, 32)

【017】11507067 Nut (M6X1.0) (6 ), radiator mounting plate

【015】11514623 Bolt, recovery tank (M6X1X20) (8.900)

【015】11515127 Bolt, spare wheel lift shaft (8.977)

【025】11519949 Tank set (dia. 20x13.4mm) (pitch & gasket) (8.940)

【007】11561878 RETAINER,PUSH PIN W/SEAL,FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL(F/FDR EXTN)

【017】11570097 Nut (10.235), radiator mounting upper

【019】12102747 Connector, in-line to engine harness (black) (allow 1.5 wiring end) (2-way socket with lead) (1.203)

【001】12367280 Wiper (22 ) (insert)

【001】12367281 Wiper (22 ) (565)

【030】12487588 Seal, w/shld washer liquid level switch (16.065)

【002】19120758 BLADE

【001】22143943 Wiper (22 ) (3-way) (insert)

【005】22699534 CAP,WSW ARM FIN(10.147)

【006】3535261 Nut (8X1.25X6.8) (GM510M) (10) (10.147)

【023】5475444 Baffle, window wiper and window washer control module

【008】5499131 Strainer-air inlet

【028】5499132 Strainer-air inlet

【012】88890966 Cap (parts of 22)

【014】88892064 Pipe, fr. window washer tank tank filler

【033】88892613 Pump w/washer

【018】9047280 Tank, w/pump (incl. 13,16, 26,27, 29,30, 33)

【013】93731457 Tank assy-washer

【033】93731458 Pump w/washer

【026】93731459 Indicator assy-washer

【016】93731460 Grommet, w/shld washer pump

【030】93731461 Grommet, washer liquid level switch (18 parts)

【027】93731462 Bracket, window washer tank (18 parts)

【002】93734150 Blade (part of 8), windshield wiper
