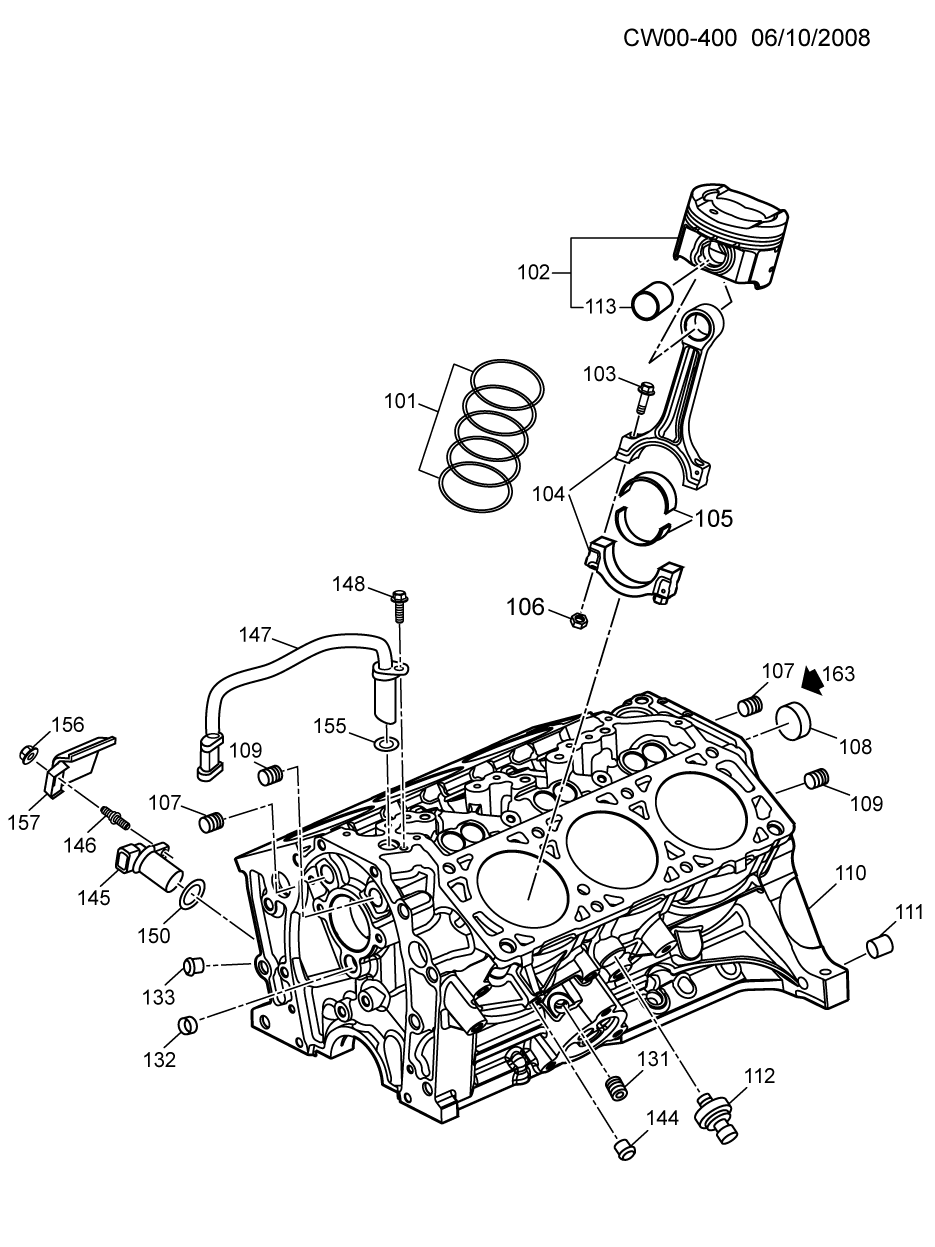

Piston, engine

【101】10118646 The second ring (to increase the information of shanghai general motors, is only in consumption

【104】10192567 Bracket, power battery control module

【101】10229206 Ring, piston, 1st pass

【108】10241154 PLUG,CM/SHF BRG HOLE(*02)(8.970)

【112】10456238 Sensor, knock

【145】10456555 Sensor, crankshaft position (7X ignition timing) (7X ignition timing)

【156】11516075 Nut (M6X1X7 mm) (hexagon flange lock) (3.342 in diameter)

【146】11518950 Bolt (hexagon flange, M6X1X16, M6X1X13, 34.7 TL, 13 od, 10.9 PO) (8.981)

【148】11588710 Bolt, engine wire snap bracket (M6X1X13 mm) (3.602)

【156】11900428 Nut (dia. 5mm) (3.403)

【105】12480255 Repair kit-c/rod bearing

【101】12481987 Piston ring kit

【147】12567650 CAMSHAFT POSITION SENSOR

【113】12584210 PIN-PISTON

【102】12589634 Piston set

【144】14084945 PLUG,ENG BLK OIL GAL(1/4-18X0.56)(STEEL)(8.971)(ACDelco #14084945)

【109】14090911 PLUG,CYL HD CORE HOLE(3/8-18X.42)(8.971)

【147】19307614 CAMSHAFT POSITION SENSOR

【150】1989866 Seal, crk/shf (2.170)

【157】24505629 Protector, crankshaft position sensor

【104】24508535 LINKAGE,A-TRANSMISSION-W5A580

【105】88984044 Repair kit-tie rod bearing (0.25 enlarged)

【103】90537293 Bolt, connecting rod (M9X1.0X44.8 mm)

【163】93733279 Grommet (60 parts) (10 ML) (medium strength thread locking agent to prevent loosening) (8.800)

【144】9427693 Plug-cylinder head water jacket
