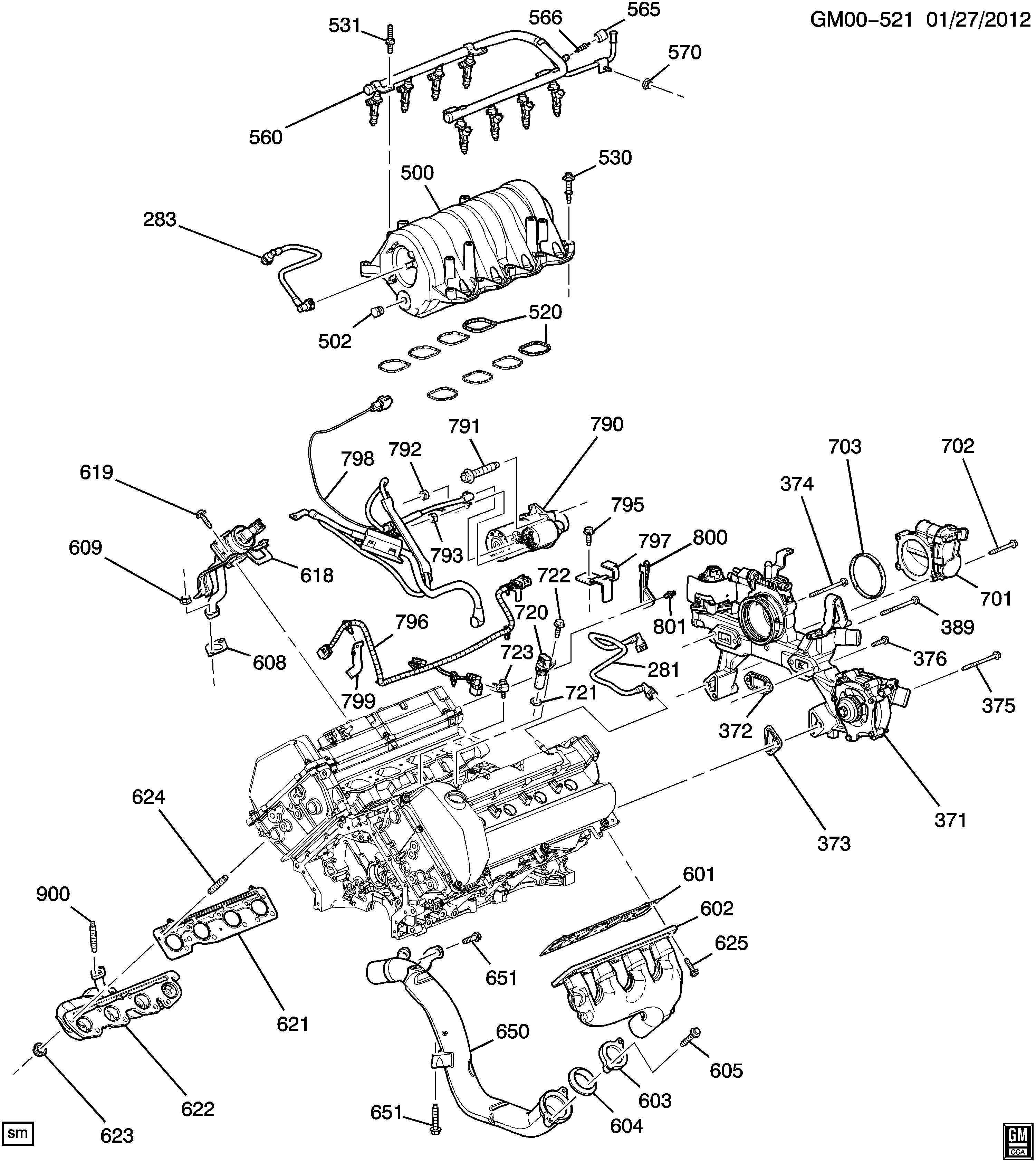

SEAL,UPR INT MANIF(PART OF 500)

【623】11515742 NUT,PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD(O/PMP SUC PIPE)

【625】11515758 Bolt-t/m mounting

【530】11588352 Bolt-intake manifold

【795】11588712 Bolt-return tube

【702】11588718 Bolt, t/body (M6X1X50) (from 11519972) (0.206)

【376】11588726 Bolt-timing chain tensioner

【791】11610074 Bolt water pump housing

【619】11610199 Bolt, taper washer, M6X1X30, threaded 21, o/d 17,8, GMW3359 (mounting bracket-upr)

【621】12573925 GASKET,EXH MANIF(ACDelco #12573925)

【373】12583049 GASKET,W/PMP(TRIANGULAR SHAPED LOWER WATER PMP HOUSING GASKET)(ACDelco #251-2023

【701】12615495 BODY,THROT(W/THROT ACTR)(SEE GROUP 03.000 THROTTLE BODY FOR DETAILED ILLUSTRAT

【723】12623730 SENSOR,KNOCK(MATING CONN W/LEADS USE 13580877)(ACDelco #213-1576)

【565】25532662 Cap, fuel pressure service valve (* repair kit 2) (3.163) (AC-DELCO #214-1044)
