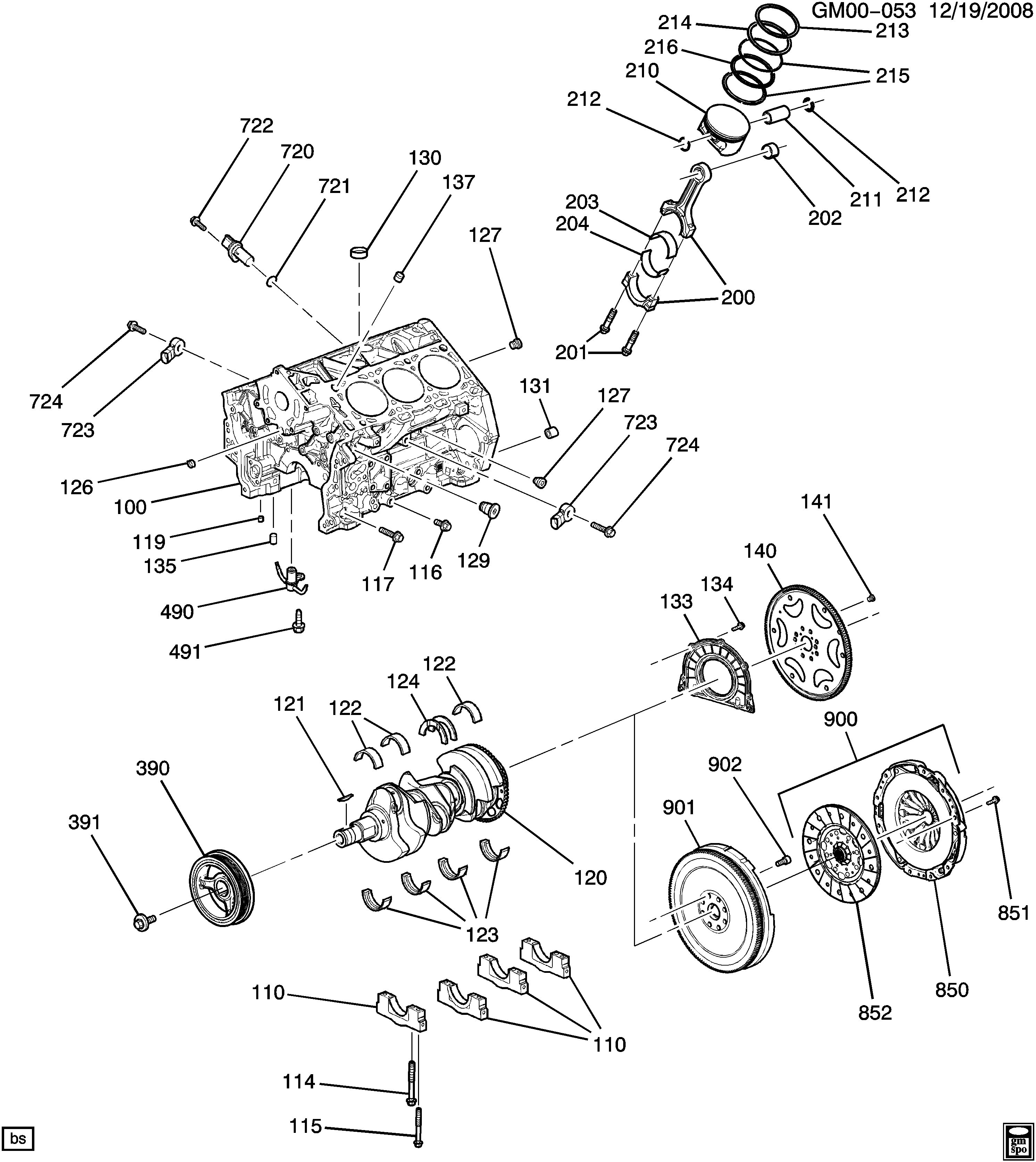

ROD,CONN(INCLS 201,202)(CONTAINS ROD, BOLTS, BUSHING)

【115】11518861 Bolt, hex flange, W/REDCD BODY, M8X1.25X90, threaded 26, o/d 18,10, GM4277M (crankshaft bearing cap)

【141】11518862 Bolt, w/adhesive, M10X1X15.5, 10.9, HDR-PT

【201】11519680 Bolt, connecting rod (200 of parts) (M9X1X53)

【391】11549124 Bolt, crankshaft balanceshaft

【127】11561583 Plug-timing chain hood

【129】11561751 Plug-cylinder head

【126】11562127 Plug (11s parts) (14) (1.531)

【722】11562426 Bolt (26 parts) (M6X30) (3.901)

【130】11569584 Plug (34.3), engine block core hole

【851】11570903 Bolt, a/t select lever cable mtg (M8X1.25X20) (1.166)

【491】11588712 Bolt-return tube

【117】11589000 Bolt, M8X1.25X50, threaded 24, o/d 18,10, GMW3359, rolled, with adhesive (crankshaft bearing cap)

【724】11589313 Screw-knock sensor

【116】11609410 Bolt, flange (10.9), M8X1.25X25 0.056

【114】12560272 Bolt (inner), crankshaft bearing cap (M10X2X102.5, 24.5)

【212】12566186 Pin set-piston (f 210)

【137】12570326 Pin, cylinder head dowel

【131】12597210 Pin, transaxle carrier

【121】12601937 Key, crankshaft balancer (to be used when required)

【390】12615141 BALANCER,CR/SHF(ACDelco #12615141)

【720】12615626 Sensor (incl. 27,28)

【210】12616971 PISTON,(W/PIN)(INCLS 211,212)(STD)

【210】12616972 PISTON,(W/PIN)(INCLS 211,212)(STD)

【723】12636736 Sensor, knock

【133】12637710 SEAL

【490】12640455 Nipple assy-piston

【120】12661875 CRANKSHAFT,

【140】12689004 PLATE,A/TRNS FLEX

【135】22531637 Pin 1.428
