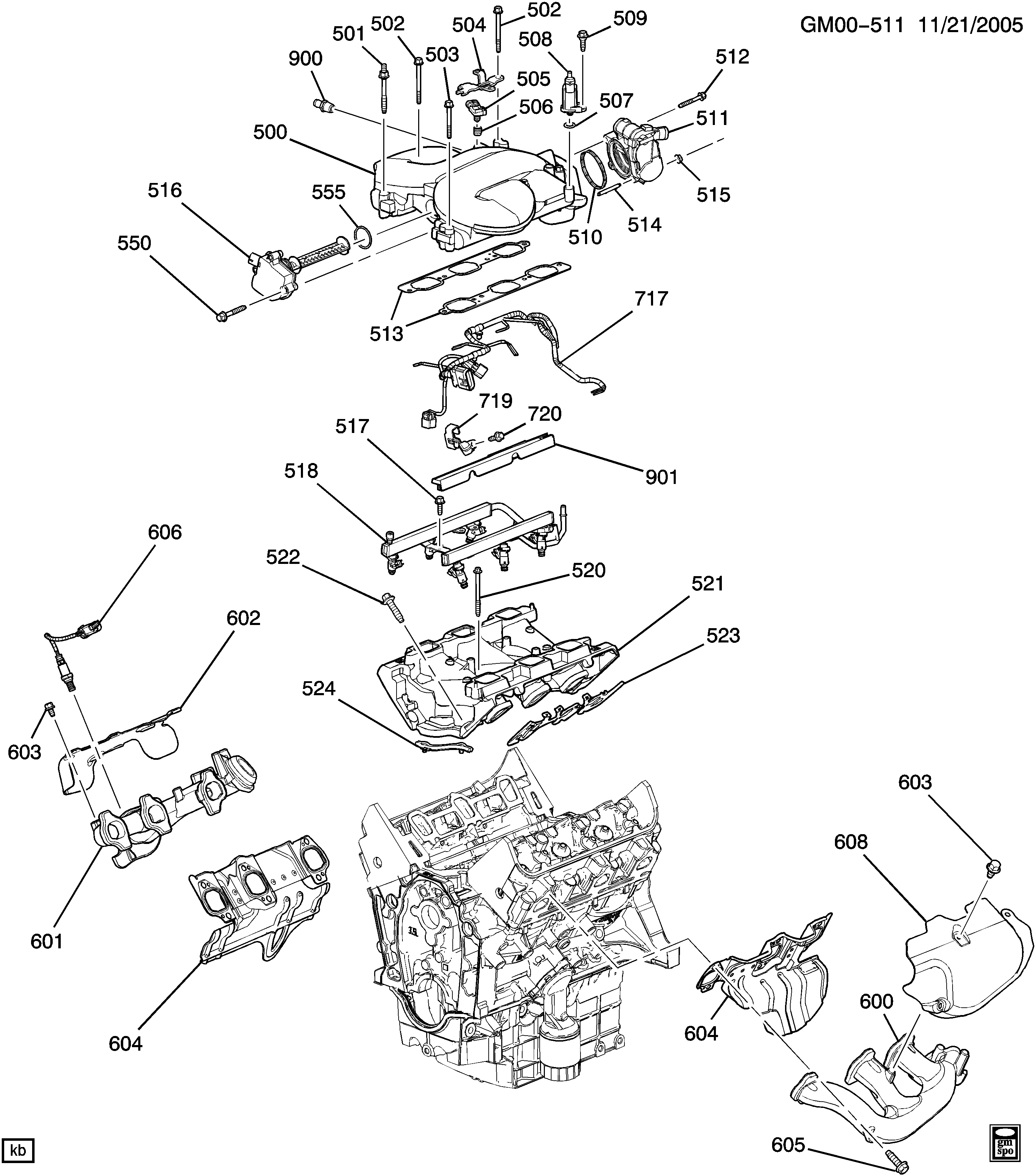

SENSOR

【603】11519840 Bolt, hex flange, M6X1X12.3, thread 6.3, o/d 14.2, 10.9, GMW3359, mechanical, MAT-PT (exhaust manifo

【509】11519941 BOLT,HFH W/SHLDR,M6X1X22,13.8 THD,15 OD,9.8,6280M,MACH,DOG-PT(EVAP EMIS CNSTR VE

【512】11519971 Bolt, throttle

【605】11547135 Bolt, exhaust (M8X1.25X30.7)

【517】11588712 Bolt-return tube

【550】11588717 Stud, intake manifold

【503】11588732 Bolt, engine cover (qtr parts) (m8x1.25x7300) (6.056)

【502】11588734 BOLT, CYL HEAD

【522】11588915 BOLT,HEX HD W/ACORN FLANGE AND ADH,M8X1.25X35,9.8,PZ(TRANS H/SHLD)

【520】11609991 Bolt, intake manifold, lower

【508】12592015 Solenoid, emission canister purge (* service kit 1)

【510】12608969 Seal, t/body

【511】12609500 Throttle body (w/throttle actuator)

【505】12614970 Sensor, manifold absolute pressure (incl. 904)

【506】16194007 SEAL,MAP SEN(PART OF 714)(ACDelco #16194007)

【900】24504220 Vacuum joint (35 parts) (straight) (accepts 603 of pipe) (13.0)

【505】55573248 Manifold absolute pressure sensor (including 602) (pair with connector 13585850 with lead) (AC-DELCO
