BOLT - LWR ARM

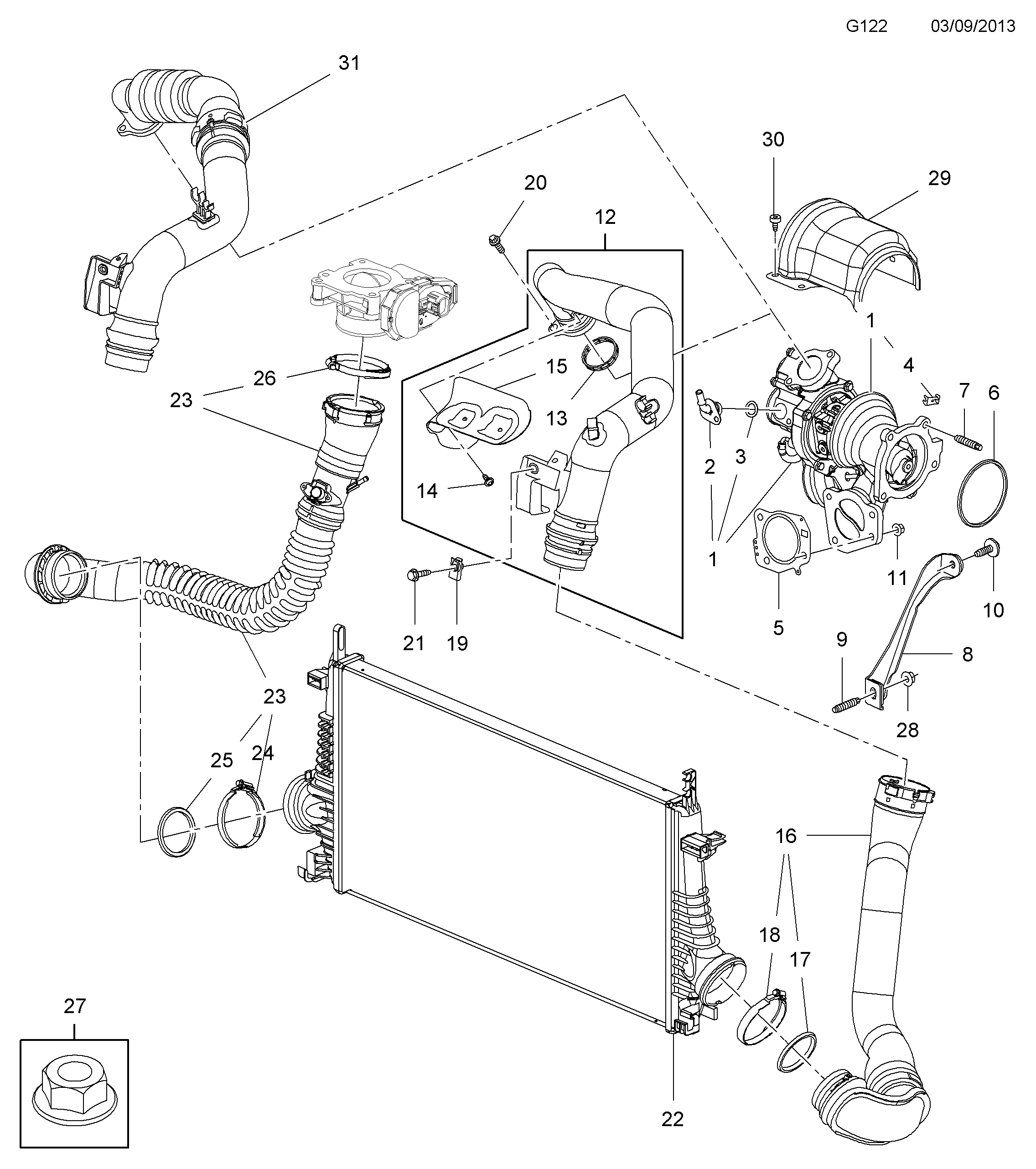

【20】11097422 Bolt, intake air hose

【19】11507067 Nut (M6X1.0) (6 ), radiator mounting plate

【30】11588711 Screw-roof glass panel

【21】11588712 Bolt-return tube

【11】11588835 Nut, straight flange, M8X1.25 thick 10, outer 17.6, 409CB, M6340 (catalytic converter)

【10】11589165 Bolt, front bumper guard (3.613)

【9】11609870 Bolt, turbo exhaust stud (M10X1.5X14.75 mm) (M10X1.5X20.25 mm) (3.342)

【3】12605720 Seal (o-ring), p.c.v joint (part 14)

【2】12605965 Joint, pcv hose (incl. 10)

【6】12609878 Gasket, catalytic converter

【29】12610652 Insulator-heat, turbo

【5】12618586 Gasket-turbo

【1】12634179 Turbocharger

【1】12643932 BOLT - LWR ARM

【23】13220167 BOLT - LWR ARM

【22】13241751 INTERCOOLER -W204/W212

【17】13265349 Gasket (13 parts)

【13】13265351 Seal (o-ring) (9 parts)

【24】13280718 Clamp, intake hose (diameter of 2nd parts: 80) (1st design see 13289478)( 13 parts)

【25】13280719 Gasket (18 parts)

【12】13306046 Pipe, intercooler inlet (incl. 10,16, 17)

【23】13325358 Hose, intermission (incl. 6-8)

【31】13334019 Pipe, intercooler inlet (incl. 10,16, 17)

【16】13334020 BOLT - LWR ARM

【28】15032594 BOLT - LWR ARM

【23】22800145 BOLT - LWR ARM

【23】22835667 Hose, intercooler

【17】22865545 BOLT - LWR ARM

【16】22990026 Hose, intercooler intake (incl. 3,4)

【16】23163572 BOLT - LWR ARM

【8】55569786 Bracket-turbo
