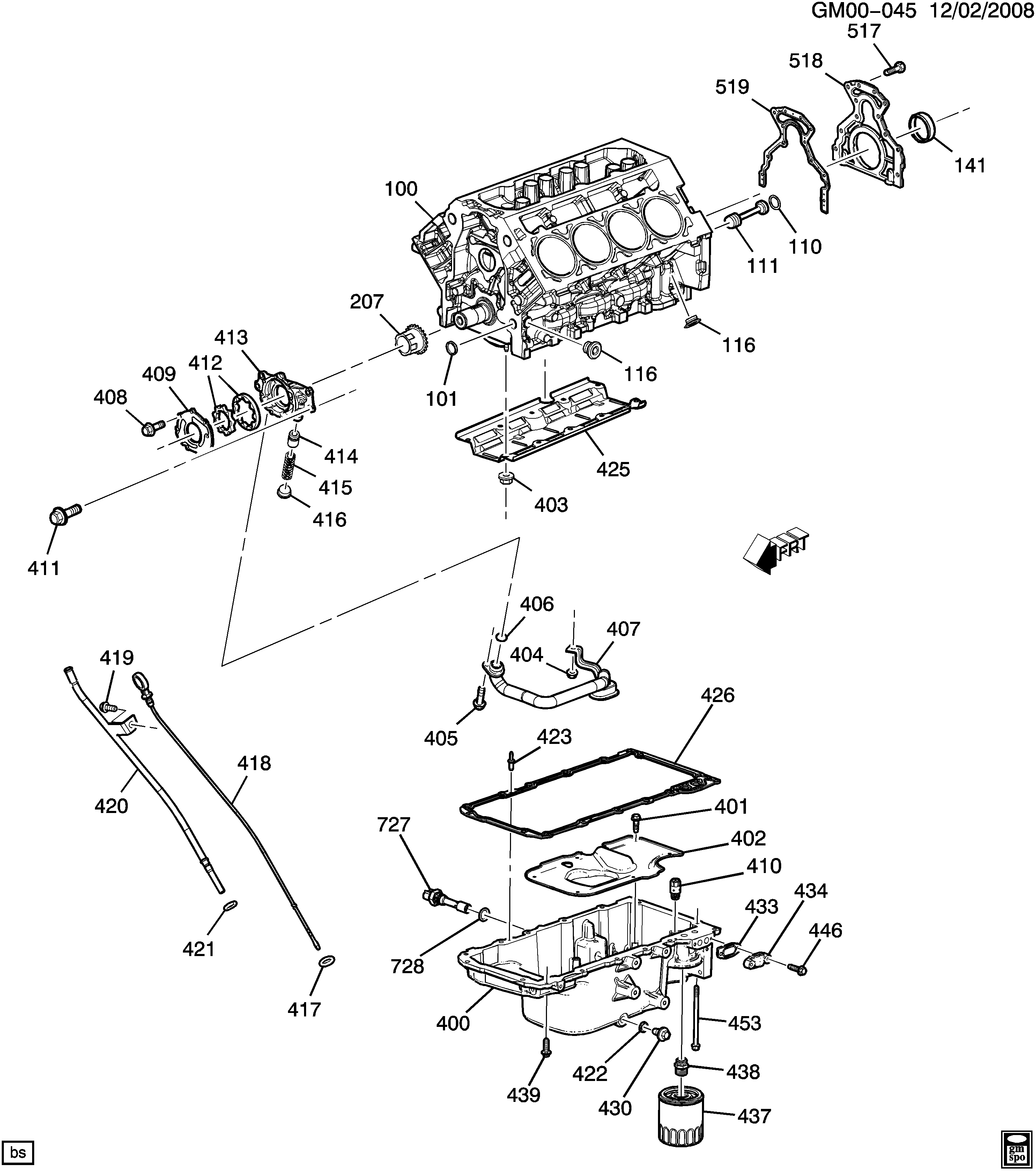

PAN,OIL(INCLS 401,402,410,422,423,426,430,433,434,438,439,446,453,727,728)

【517】11515758 Bolt-t/m mounting

【419】11516327 BOLT,HFH,M10X1.5X25,22.30 O.D.,HDR PT,10.9,7112M(OIL LVL IND TUBE)

【405】11516521 BOLT,HFH M6X1X20,9.8,7114M,DOG PT,14.2 OD(O/PMP SUC PIPE)

【408】11519133 BOLT,SELF TAP,M6X1X20,13.2 O.D.(PART OF 413)

【401】11562426 Bolt (26 parts) (M6X30) (3.901)

【430】11562588 PLUG,OIL PAN DRN(PART OF 400)(INCLS 431)(M12X1.75X25)(W/SEAL)(EXC MAGNET)(W/HEX

【446】11588714 Bolt/screw-eng harn

【116】11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER(ENG BLK COOL DRN HO

【404】11609746 NUT,HFH,M8X1.25,8.9THK,17.6 O.D.,10 STL,GMW3200, PREV TORQUE(FUEL FEED & EVAP EM

【453】12554990 BOLT,OIL PAN(RR)(PART OF 400)(M6X1.0X136)

【207】12556582 SPROCKET,CR/SHF

【423】12558759 RIVET,OIL PAN GSKT

【111】12573460 PLUG,ENG BLK OIL GAL(INCLS 110)(15.68MM DIA)(INCLS O-RING SEAL(N.S.S.)

【434】12577903 COVER,OIL PAN(PART OF 400)(W/OUT KC4)(FOR MODELS W/KC4 SEE GROUP 1.540 ENG OIL C

【406】12584922 SEAL,O/PMP(O RING)(PART OF 407)(ORANGE)(ID=19.63 T=4.32)(TEFLON COATED)

【438】12600225 Joint 440 oil

【727】12603781 Engine oil level and temperature sensor (1.800)

【410】12608835 VALVE,OIL PRESS RLF(PART OF 400)(MATING CONN USE 88988301)

【433】12611384 Gasket, oil pan lid (no KC4) (for models with KC4 see groups 1.540 or 1.550, depending on the applic

【413】12612289 Pump, oil (incl. 408,410,411,414-416)

【426】12612350 GASKET, OIL PAN

【422】12616850 SEAL,OIL PAN DRN PLUG

【519】12639249 GASKET,CR/SHF RR OIL SEAL HSG(PART OF 518)(ACDelco #12639249)

【518】12639250 HOUSING

【437】19303975 FILTER,OIL(W/O TOP MOUNTED FILTER BYPASS VALVE)(NEW E-CORE CONSTRUCTION)(ACDelco

【421】24504031 O-ring

【141】89060436 SEAL,CR/SHF RR T-9 CK1-5, CK
