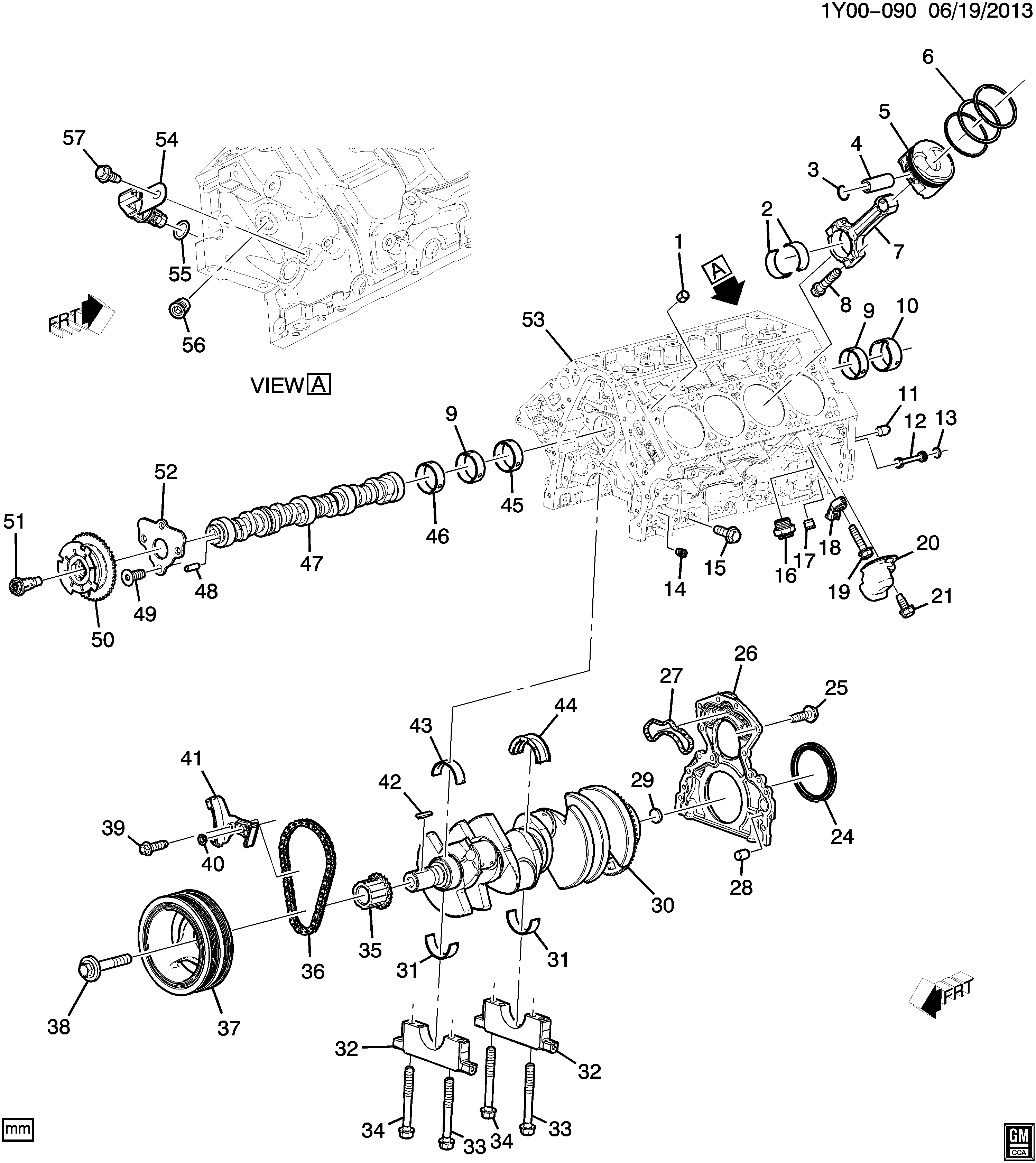

BEARING KIT,CONN ROD(STD)

【39】11515758 Bolt-t/m mounting

【14】11546665 Plug-cylinder head

【56】11546667 Plug, engine block casting (M16X1.5X16.25)

【38】11547372 BOLT,CR/SHF BALR(M16X2X103)(SEE BULLETIN PIP5156 TO SEE GEN 4/5 CR.SHF BALANCER

【34】11548075 BOLT,CR/SHF BRG CAP(FOR 2ND DES SEE 11548075)(M10X2X82)(SINGLE USE)

【33】11548076 BOLT,CR/SHF BRG CAP(FOR 1ST DES SEE 11611568)(M10X2X96)(SINGLE USE)

【49】11561455 SCREW,FLAT,CS, M8X1.25X15(CM/SHF RET)

【57】11570903 Bolt, a/t select lever cable mtg (M8X1.25X20) (1.166)

【25】11589311 Bolt, engine lifting bracket (M8X1.25X29 mm)

【19】11589313 Screw-knock sensor

【42】12561513 KEY,CR/SHF BALR(4.8MMX37.5MM)

【3】12569638 Pin set-piston (* package 3)

【1】12570326 Pin, cylinder head dowel

【52】12589016 RETAINER,CM/SHF(INCLS SEAL)(USE WITH BOLT 11561455)

【18】12623095 Sensor, knock (incl. 179)

【50】12623368 ACTUATOR,CM/SHF POSN(ACDelco #12623368)

【27】12627520 GASKET,CR/SHF RR OIL SEAL HSG(PART OF 27)(SINGLE USE)(ACDelco #12627520)

【47】12629512 CAMSHAFT,ENG(INCLS 50)

【41】12630107 TENSIONER KIT,TMG CHAIN(INCLS 40-42)(CAM DRIVE)(ACDelco #12630107)

【36】12646387 CHAIN,CM/SHF TMG(ACDelco #12646387)

【5】12656874 PISTON KIT,ENG(INCLS 4)(STD)(USE T/W QTY 2 OF PISTON PIN RET CLIP PN 12569638)

【5】12656875 PISTON KIT,ENG(INCLS 4)(STD)(USE T/W QTY 2 OF PISTON PIN RET CLIP PN 12569638)

【24】12665076 SEAL,CR/SHF RR OIL(PART OF 27)(SINGLE USE)(W/O INSTRUCTION SHEET)(ACDelco #12665

【54】12669636 SENSOR,CR/SHF POSN(INCLS 57)(MATING CONNECTOR USE 19299690)(ACDelco #12669636)

【30】12674745 CRANKSHAFT,(INCLS 30)

【51】12681018 VALVE,CM/SHF POSN ACTR SOL(ACDelco #12681018)

【6】12685185 RING KIT,PSTN(STD)(CONTAINS UPR/LWR COMPRESSION RING,OIL RINGS,OIL EXPANDER)

【26】12705663 HOUSING,CR/SHF RR OIL SEAL(INCLS 24-26,28,29)(W/O INSTRUCTIONS)

【28】22531637 Pin 1.428

【29】24502262 Plug-cylinder block oil pass

【48】24575061 PIN,CM/SHF SPKT LOC(17MM LONG)

【24】89060436 SEAL,CR/SHF RR T-9 CK1-5, CK
