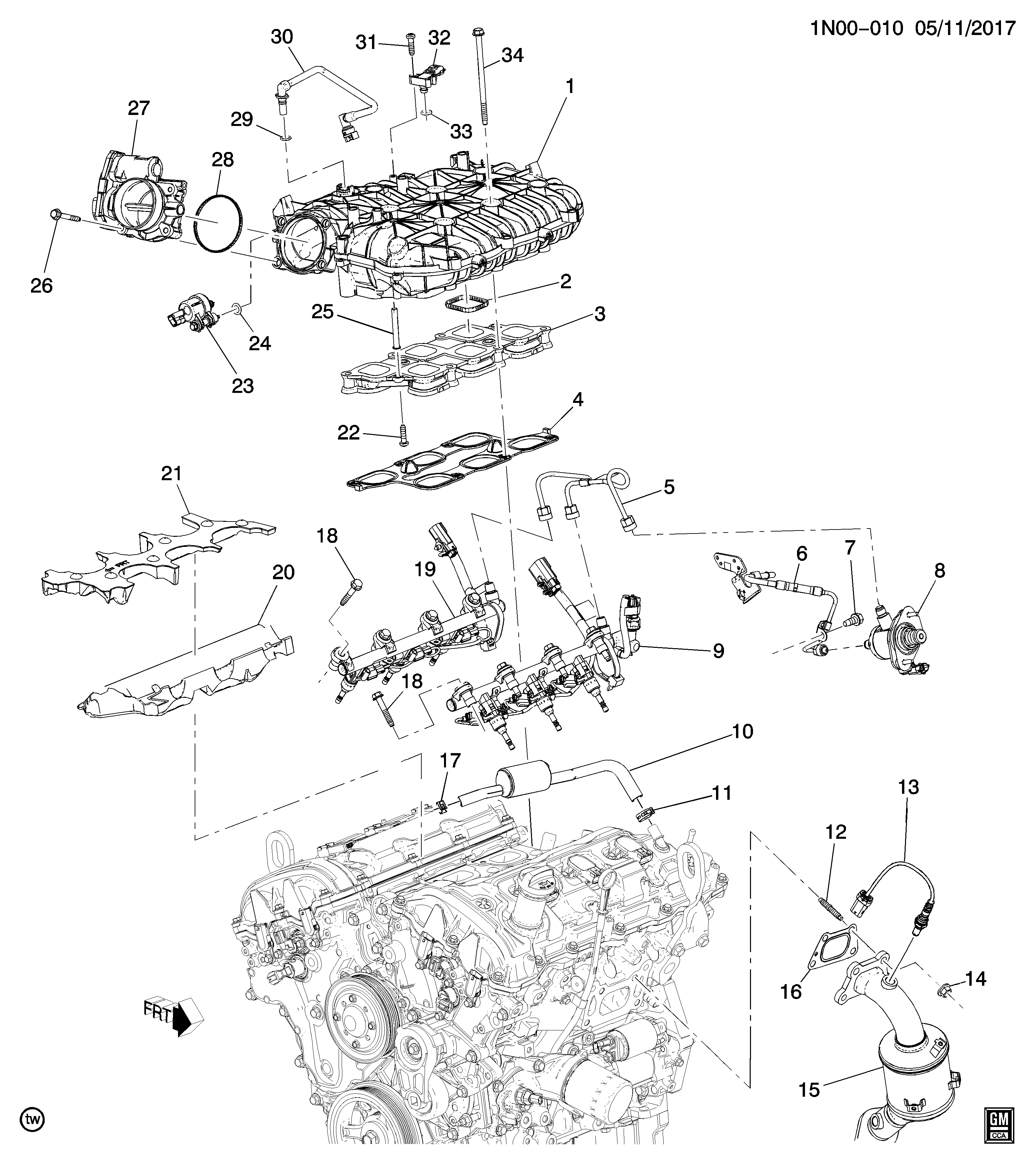

TUBE,PCV(ACDelco #12680863)

【14】11517996 NUT, BRK

【31】11562253 Sensor assy-bolt

【26】11588718 Bolt, t/body (M6X1X50) (from 11519972) (0.206)

【18】11588729 Bolt, oil pump (dia 8 X l 1.25 X l 55.8)

【34】11588930 Bolt, hex flange, M8X1.25X145, threaded 18, o/d 18, steel 8.8, GMW3359, M-PT (upr intake manifold)

【7】11589040 Bolt, fuel injector feed & return tube set (M10X1.5X22) (4.115)

【12】11610977 Bolt (M10X1.5X26/M10X1.5X20) (03.613)

【3】12611155 Manifold, intake lower

【30】12634292 F-TUBE

【28】12634371 Gasket-t/body (AC-DELCO #12634371)

【5】12639208 Pipe (3.613), fuel supply center

【21】12643901 Insulator, fuel

【27】12670981 Throttle body w/sensor (AC-DELCO #12670981)

【6】12671745 Tube, feed (incl 11-13)

【4】12673301 GSKT-INT MANIF

【20】12678248 Insulator, fuel

【23】12690512 Solenoid assy, emission charcoal canister purge

【8】12691016 Pump, fuel

【1】12699182 MANIFOLD,UPR INT(INCLS 25)(ACDelco #12699182)

【16】20893953 GASKET

【32】55573248 Manifold absolute pressure sensor (including 602) (pair with connector 13585850 with lead) (AC-DELCO

【11】90572594 Clamp, eng water outlet
