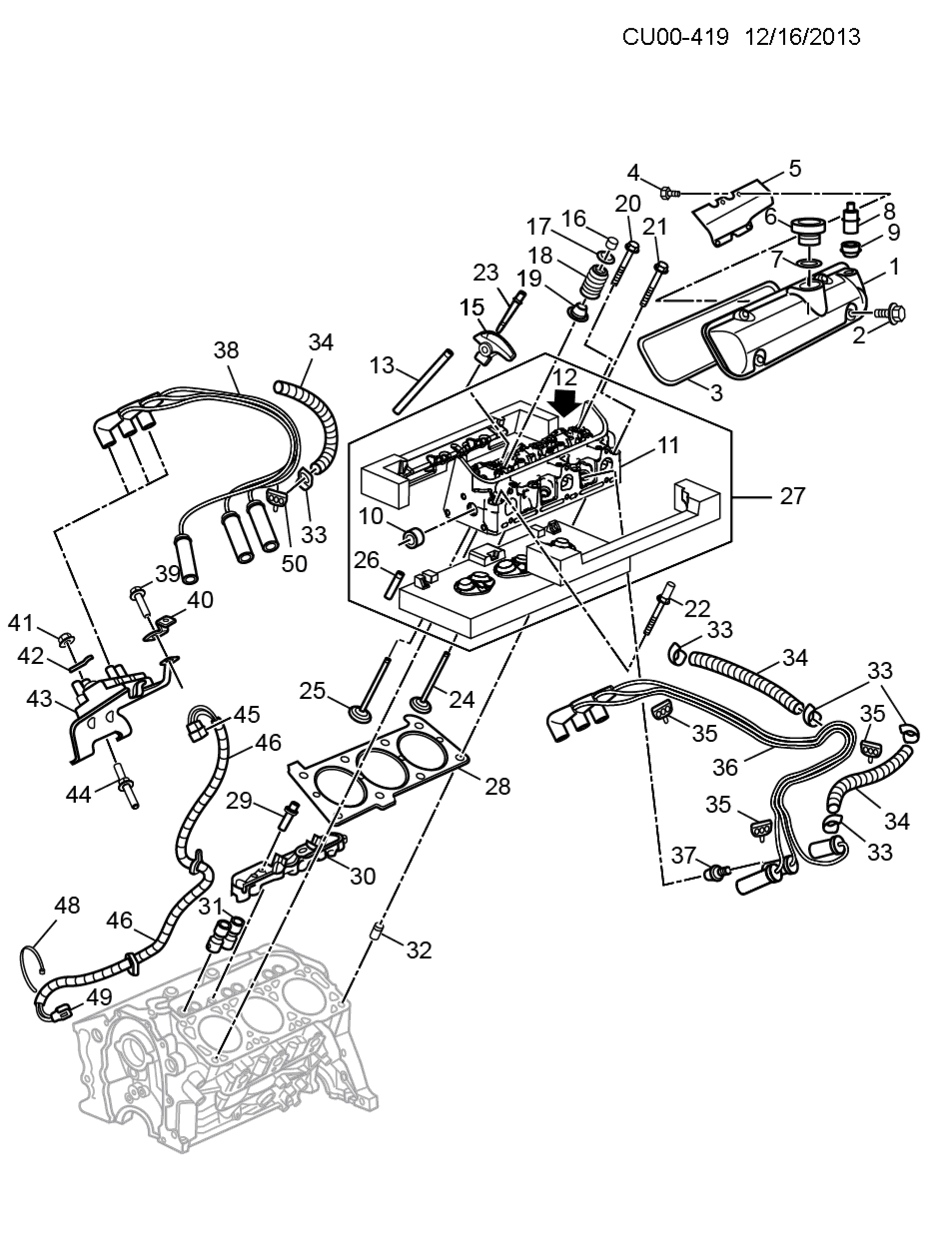

Plug, gasoline engine ignition

【010】10044811 Plug (o/s 25.68) (expansion seat) (0.293)

【003】10154775 Gasket (204 parts) (* repair kit 1)

【017】10166344 CAP,VLV SPR(EXH)

【016】10166345 KEY,VLV STEM

【013】10166355 Rod, push (

【030】10166364 LIFTER, VALVE

【029】10166380 LIFTER, VALVE

【025】10210477 Valve, exhaust (0.089 enlarged)

【025】10210478 Valve, exhaust (0.394 enlarged)

【025】10210479 Valve, exhaust (0.775 enlarged)

【021】10227594 Bolt, cylinder head (11X 1.5X88)

【040】10236885 Stay (1-8mm hole), spark plug wire

【039】11515756 BOLT,HFH, M8X1.25X20,17THD,18 O.D.,10.9,7114M(BOLT,CR/SHF POSN SEN)

【020】11518953 Bolt, cylinder head (M11X1.5X108) (8.900)

【021】11518992 Bolt, cylinder head (M11X1.5X88) (8.900)

【044】11588385 Bolt, stud-ignition coil (8.981)

【002】11589120 Bolt (w/washer & gasket) (204 of the parts)

【023】11609224 TURBOCHARGER

【049】12101899 Connector (240 part) (black) (2-way socket) (with lead)

【035】12163607 RETAINER,SPLG WIRE(*KIT1)(RETAINS 3-7MM LEADS,HINGED LKG,NARROW BLADE MOUNT TYPE

【048】12337820 Band (black nylon) (7mm wide, 255 long) (8.965)

【027】12564408 Head, cylinder

【011】12564409 Head, cylinder

【013】12567619 Rod-push (inner)

【024】12569209 Valve, (12569209*12616697) (standard)

【006】12589430 Cap, oil filler opening

【018】12589540 SPRING-VALVE

【028】12590863 GASKET-CYL HEAD-T255-09%

【006】12590905 Cap (incl 2), oil filler (10W-30)

【015】12594509 Rocker arm-valve (see 1st for 24504436 design) (for rear service) (including 20050501) (bolthead 207

【011】12598262 Cylinder head

【011】12599888 Cylinder head

【024】12616697 Valve, intake (12616697*12569209)

【025】12617048 VALVE, EXHAUST

【009】14001875 Gasket-pcv valve (part of 204) (3.680)

【032】14024244 Pin, cylinder head dowel

【046】15301408 Wire, crankshaft position sensor (for 7X sensor) (including 247,248,249) (set 236 to 245)

【031】17120070 LIFTER, VALVE

【043】19353734 Coil-ignition

【007】24100002 O-ring, oil filler cap

【010】24502262 Plug-cylinder block oil pass

【015】24504436 Rocker-valve (incl

【001】24504669 Cover, valve rocker (incl. 203,229,231,233) (incl. Gasket)

【001】24504670 Cover, valve rocker (incl. 229,231,233) (incl. Gasket)

【022】24505015 Bolt, cylinder head (11X1.5X91)

【024】24506031 Valve, intake (0.394 enlarged)

【019】24508009 Seal, oil (standard diameter 34mm) (* kit 1)

【008】25043843 Valve, pcv

【019】88984161 Seal, valve stem oil (0.394 OS) (* package 1)

【041】9004536 Nut, intake manifold (8mm diameter) (9.242)

【038】92101008 Wire, spark plug, no.1 cylinder

【036】92101009 Wire, spark plug, no.2

【038】92101010 Wire, spark plug, no.3 cylinder

【036】92101011 Wire, spark plug, no.4

【038】92101012 Wire, spark plug, no.5

【036】92101013 Wire, spark plug, no.6 cylinder

【012】93733281 Gasket, oil pan (50 ml) (8.800)

【012】93737600 Sealant, pcv (150g) (8.800)
