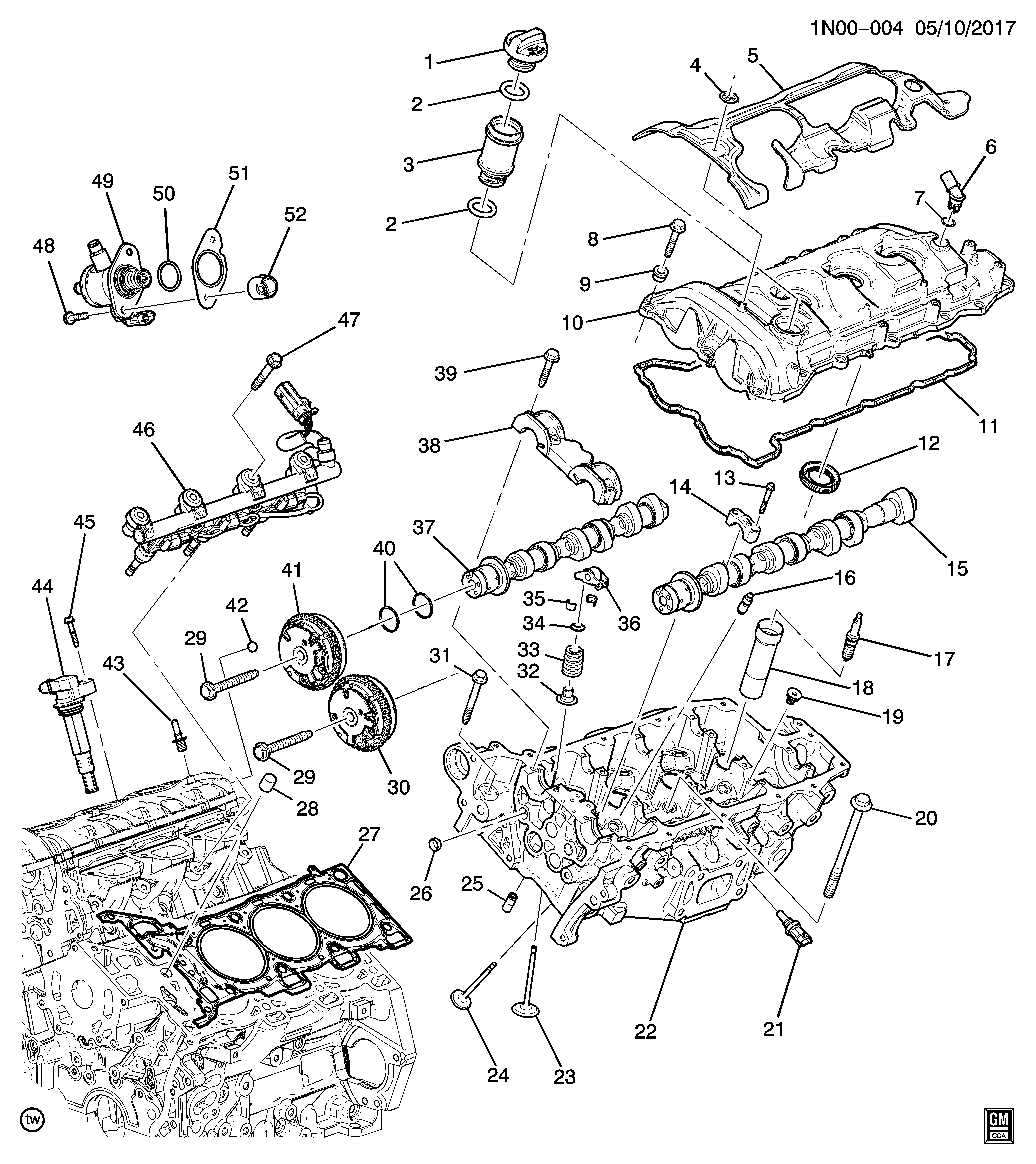

COVER,CM/SHF(INCLS 4-9,11,12,42,43)(ACDelco #12695642)

【4】10042521 Nut (250 parts) (3.265)

【39】11518856 Bolt, hexagon flange, M6X1X43.4, threaded 14.8, 11o/d, 8.8, GMW3179 coded G (215 parts)

【31】11518861 Bolt, hex flange, W/REDCD BODY, M8X1.25X90, threaded 26, o/d 18,10, GM4277M (crankshaft bearing cap)

【8】11519038 Bolt, oil pan (part of 1) (M6X1X30) (0.724)

【26】11562127 Plug (11s parts) (14) (1.531)

【8】11570020 Bolt (including bolt, spacer) (including 246) (204 of parts)

【48】11570139 Bolt, hex flange, M6X1X33, 25 threaded, 14.2 o/d, 10.9, GMW4700 (ZN-NI). (327 parts)

【42】11570754 Plug, cylinder head (11 parts) (o/d 11.2/thickness 6.6) (8.801)

【19】11571074 Plug-cylinder head

【29】11588279 Bolt, hex flange, M10X1.5X80, threaded 26, o/d 22.3, 10.9 m, GM4277M

【45】11588715 Bolt, water pump (11 parts) (M6X1.0X35 mm)

【8】11588719 Bolt/screw-crankcase lower

【47】11588729 Bolt, oil pump (dia 8 X l 1.25 X l 55.8)

【28】12570326 Pin, cylinder head dowel

【16】12572638 Valve lash hydraulic adj 215 f AC-DELCO HL129

【40】12574477 CAMSHAFT

【34】12575196 Set, valve spring (215 of the parts)

【35】12575197 Plate, valve lock (f 215)

【25】12580965 Check valve (215 parts)

【52】12590679 Follow-valve lifter (fuel pump)

【9】12595122 Insulator, camshaft cap bolt

【50】12602379 Seal, fuel pump housing (o-ring)

【12】12607600 SEAL, SPLG SHLD DW (LH)

【21】12608814 SENSOR,ENG COOL TEMP(MATING CONN USE 88987993)(2WAY FEMALE)(ACDelco #213-4333)

【23】12610931 VALVE, INTAKE

【33】12616671 Spring, valve (215 of the parts)

【24】12621548 Valve, exh

【44】12632479 Coil, ignition (incl. 236) (incl. Seal) AC-DELCO

【27】12634479 GASKET-CYL HD-MALIBU-10

【1】12642516 Cap, oil filler (incl. 2) (DEXOS 5W-30) (AC-DELCO# FC243)

【5】12643785 Spacer, camshaft housing cover (250 of parts)

【27】12648843 GASKET,CYL HD L

【3】12650614 Hose, oil filler (straight) (incl. 4,7, 8) (straight)

【11】12664357 VALVE COVER GASKET

【51】12677330 Gasket, fuel pump carrier (902 parts)

【17】12681660 SPARK PLUG,GAS ENG IGN(SPARK PLUG IS PRE-GAPPED,DO NOT CHANGE)(ACDelco #41-109)(

【41】12684830 ACTUATOR,CM/SHF POSN(USE T/W WASH 12632859 UNLESS USED ON SADDLE CAP STYLE HEADS

【41】12684831 ACTUATOR,CM/SHF POSN(USE T/W WASH 12632859 UNLESS USED ON SADDLE CAP STYLE HEADS

【30】12684832 ACTUATOR,CM/SHF POSN EXH(USE T/W WASH 12632859 UNLESS USED ON SADDLE CAP STYLE H

【10】12688702 Cover, camshaft (w/plate)

【11】12688703 Gasket, cam th co

【49】12691016 Pump, fuel

【32】19207664 Valve stem oil seal kit (215 parts) (12 grommet per package) (set of repair kit per side)

【20】19352499 Bolt, cylinder head (M11X2X152)

【2】24100002 O-ring, oil filler cap

【36】24100294 Arm (215 parts)
