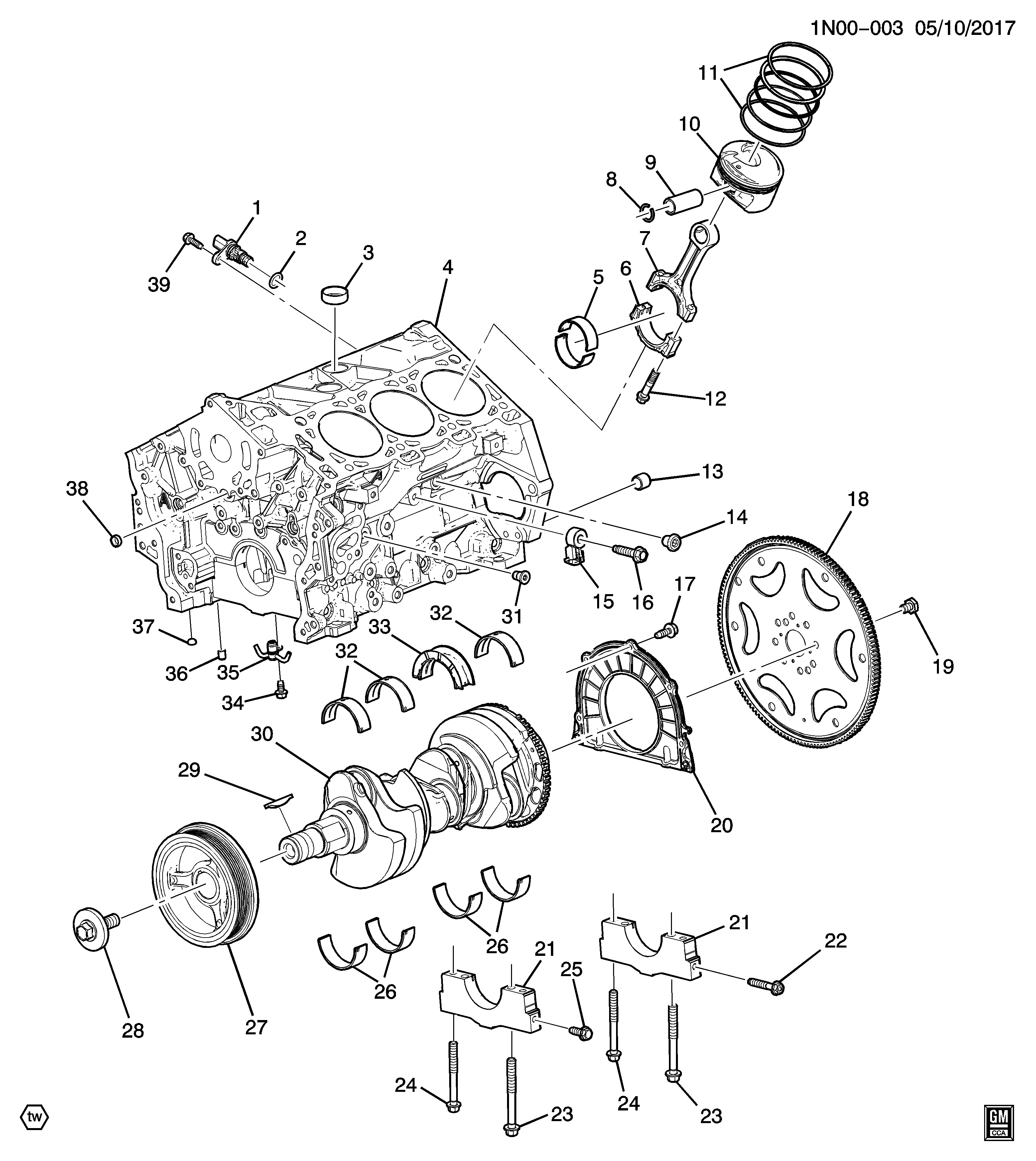

BALANCER,CR/SHF(SINGLE BELT W/KEYWAY)(ACDelco #12697768)

【24】11518861 Bolt, hex flange, W/REDCD BODY, M8X1.25X90, threaded 26, o/d 18,10, GM4277M (crankshaft bearing cap)

【19】11518862 Bolt, w/adhesive, M10X1X15.5, 10.9, HDR-PT

【12】11519680 Bolt, connecting rod (200 of parts) (M9X1X53)

【28】11549124 Bolt, crankshaft balanceshaft

【14】11561583 Plug-timing chain hood

【38】11562127 Plug (11s parts) (14) (1.531)

【3】11569584 Plug (34.3), engine block core hole

【34】11588711 Screw-roof glass panel

【17】11588712 Bolt-return tube

【39】11588713 Bolt-oil pan

【22】11589000 Bolt, M8X1.25X50, threaded 24, o/d 18,10, GMW3359, rolled, with adhesive (crankshaft bearing cap)

【25】11609410 Bolt, flange (10.9), M8X1.25X25 0.056

【23】12560272 Bolt (inner), crankshaft bearing cap (M10X2X102.5, 24.5)

【8】12566186 Pin set-piston (f 210)

【13】12597210 Pin, transaxle carrier

【29】12601937 Key, crankshaft balancer (to be used when required)

【15】12636736 Sensor, knock

【20】12637710 SEAL

【35】12640455 Nipple assy-piston

【5】12643667 Repair kit (incl. 203, 204) (for 2012 & later)

【10】12654419 Kit, engine piston repair (. 25mm) (enlarged size)

【10】12654420 Kit, engine piston repair (. 25mm) (enlarged size)

【18】12689004 PLATE,A/TRNS FLEX

【36】22531637 Pin 1.428
