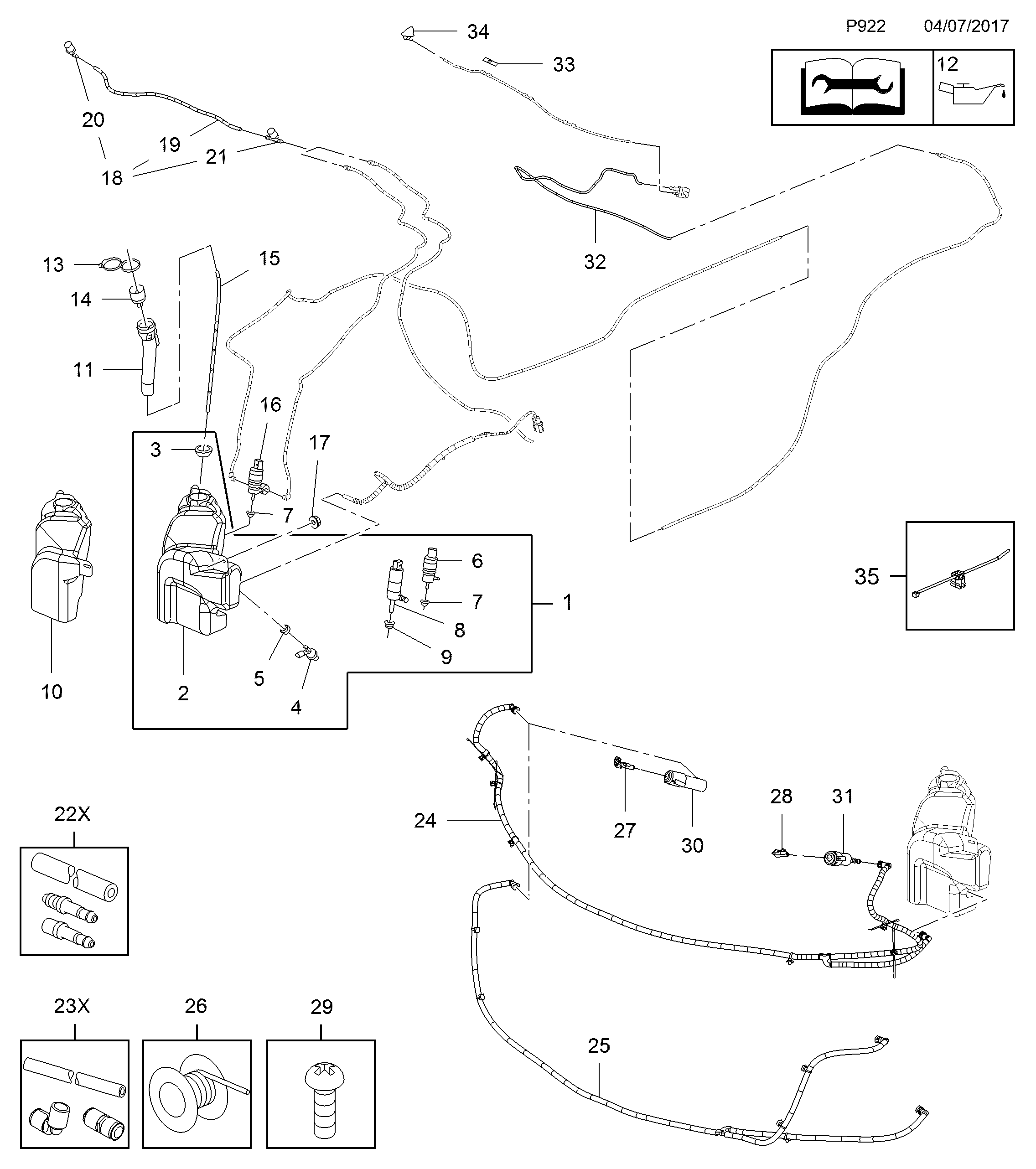

BOLT - LWR ARM

【17】11609411 Nut (m6x1x5.7mm) (hexagon-non-plated GMW3200) (8.917)

【11】13227298 BOLT - LWR ARM

【13】13227300 CAP, WSWA SOLV CNTNR

【18】13227307 Hose (incl. 26,27)

【28】13227337 Nozzle l

【27】13227338 Nozzle l

【31】13227348 Actuator, h/l washer nozzle

【30】13227349 Actuator, h/l washer nozzle

【24】13227354 Hose h/l washer s

【4】13248197 Sensor, windshield washer tank level

【9】13250288 Grommet, h/l washer pump

【8】13250289 Pump h/l washer

【16】13250357 F-PUMP

【7】13250358 Grommet, w/shld washer pump

【14】13265829 Filter, washer tank

【10】13313664 Tank, windshield washer washer

【10】13313665 Jar, washer

【2】13313666 Tank, washer

【2】13313667 Tank, washer

【11】13315610 TUBE

【25】13318268 Hose h/l washer s

【28】22875366 Nozzle l

【27】22875367 Nozzle l

【24】22949595 Hose h/l washer s

【35】24449438 Clip, h/washer nozzle hose

【5】90276310 Grommet, w/shld washer liquid level switch

【3】9114703 Protector, windshield washer tank (inner diameter 32mm)
