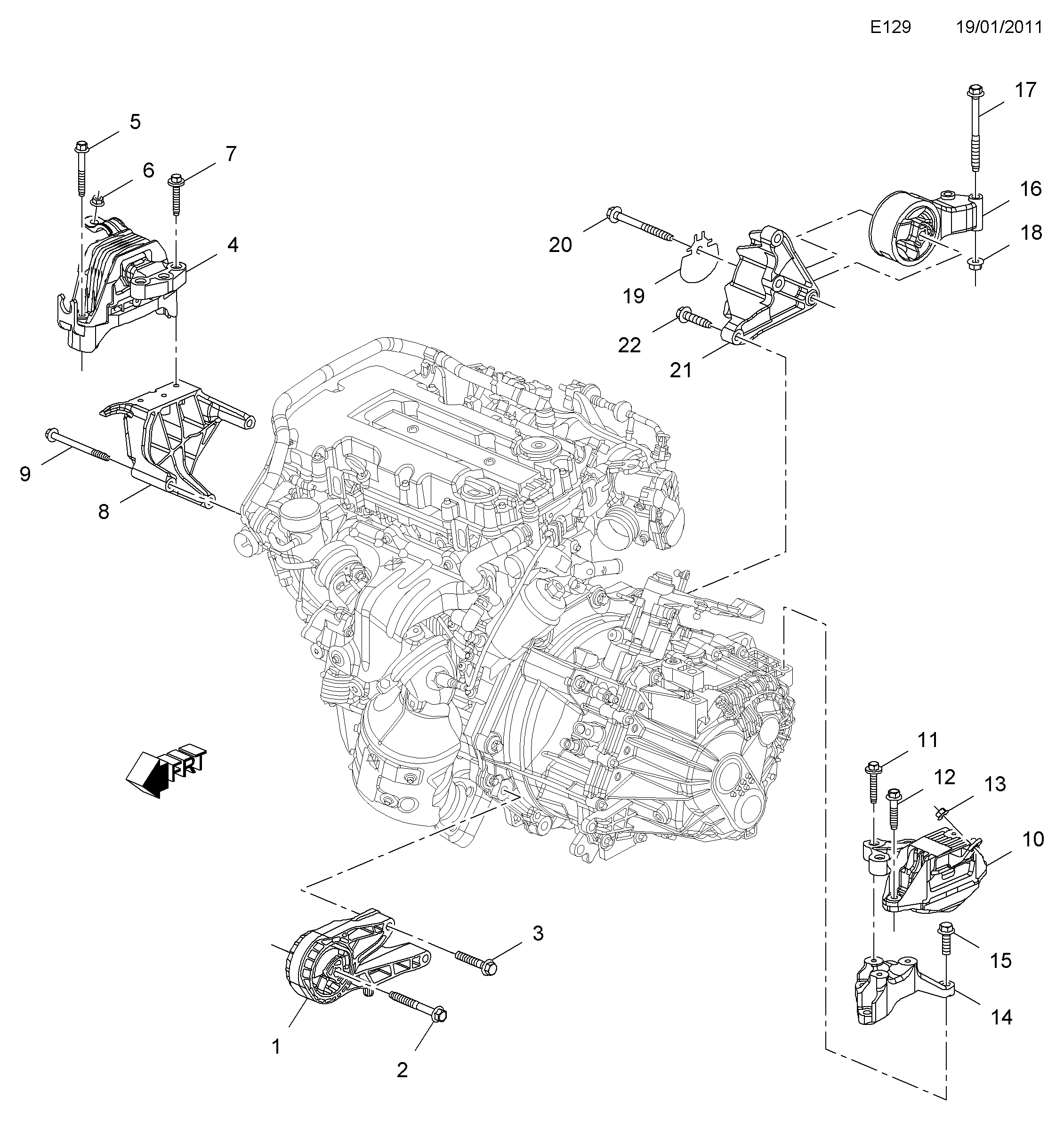

SEAL, ENGINE UNDER

【13】11514597 NUT,HFH,10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M(A/TRNS RANGE SEL LVR)(2

【18】11514598 Nut, transmission side (M12X1.75 mm) (8.915)

【11】11570514 Bolt, gear box mounting (M10X1.5X61 mm) (0.002)

【12】11588742 Bolt, hex flange, M10X1.5X50, 26 threaded, 22.3 o/d, 10.9 steel, GMW3359, M-PT (engr

【9】11588757 Bolt, hexagon flange, M10X1.5X125, o/d 22.3, thread 26,10, GMW3359, 8mat POINT

【22】11589276 Bolt (M12X1.75X55.8MM) (hexagon) (4.081)

【2】11589281 Bolt (M12X1.75X105.9 mm)

【20】11589283 Bolt (M12X1.75X125.90 mm), rr. transmission

【17】11589284 Bolt-lwr tie frame to transaxle

【10】13248549 TRANSMISSION MOUNTING

【14】13248569 Bracket, transmission mounting

【1】13248600 Mounting, transmission front

【16】13248630 MOUNT,TRANS RR

【21】13248664 Brkt assy-t/m rr

【19】13272628 Insulator, engine mount heat

【3】13274850 Bolt (M12X1.75X68)

【4】13347453 Engine mounting
