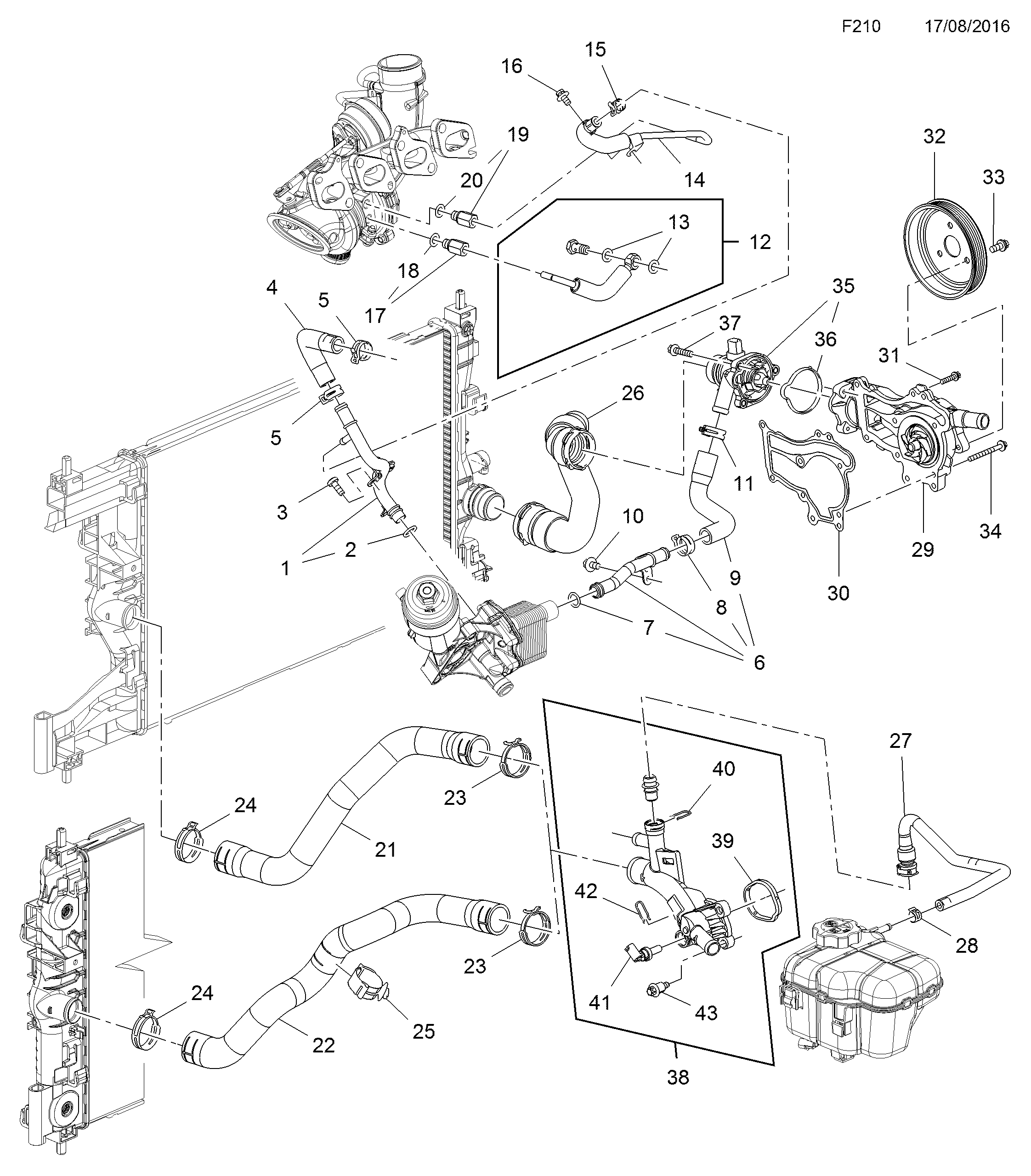

TURBO LUBRICATION PIPE

【16】11101291 Bolt, eng oil cooler mouth pipe (M6X10 mm) (3.265)

【24】13162312 Clip (42mm), radiator mouth hose

【26】13251435 RADIATOR ASSY

【3】55353320 Bolt, engine oil cooler (* package 2)

【9】55565381 RADIATOR ASSY

【1】55565382 Pipe (r), eng oil cooler in.

【4】55565952 RADIATOR ASSY

【14】55567067 Pipe, turbo coolant return

【12】55568031 Pipe, turbine coolant supply (incl. 25)

【7】55568540 Seal, engine oil cooler pipe (O-ring) (4 parts) (O-ring)

【6】55568542 RADIATOR ASSY

【20】55571900 Seal (9 parts) (ASPERN)

【19】55572127 Connector (incl 26), turbo coolant feed lower

【28】90530642 Clip, water outlet

【8】90572590 Clip (23mm), radiator reserve hose

【11】90572594 Clamp, eng water outlet

【25】9202590 Clip (part of radiator inlet hose)
