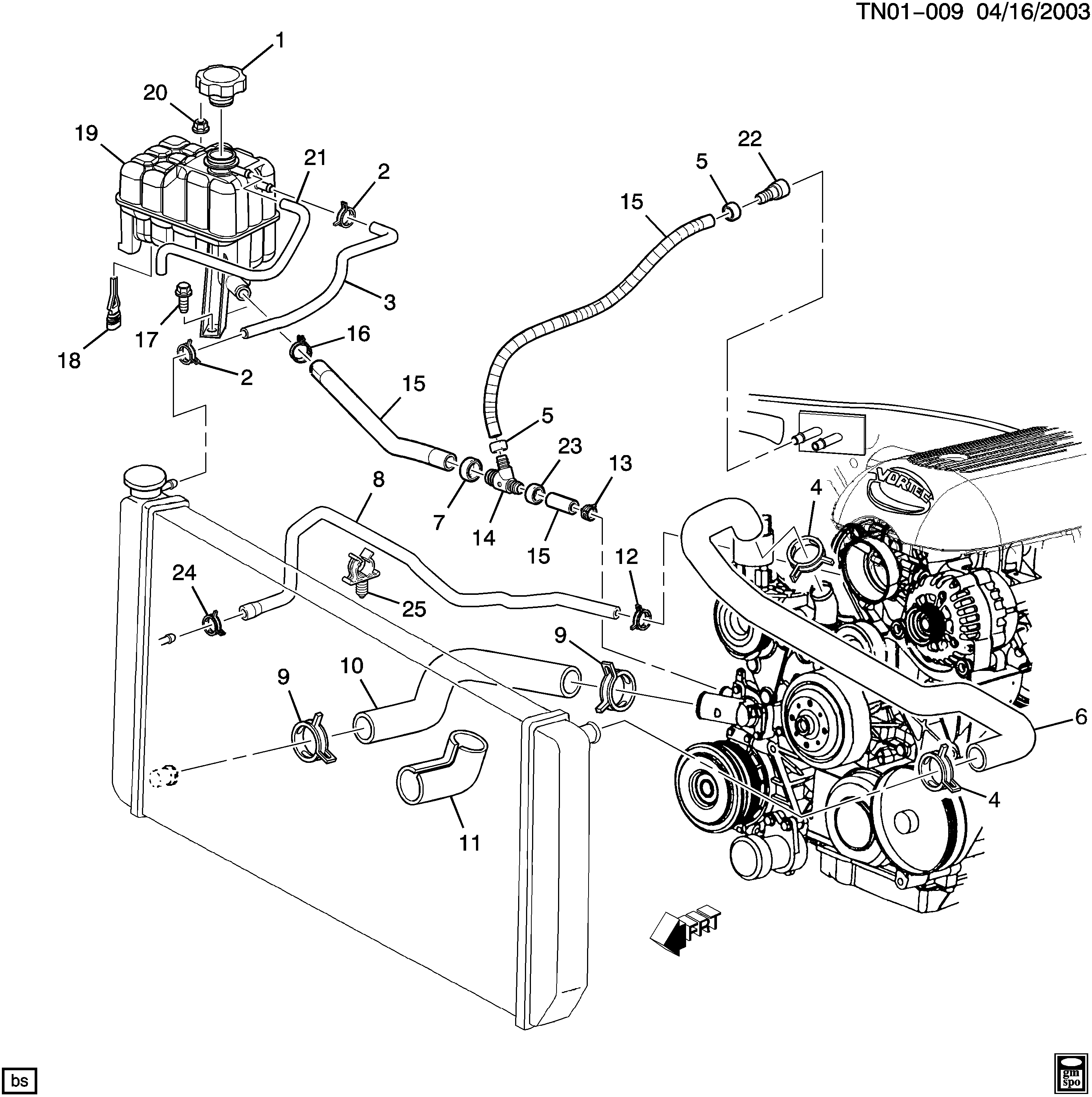

CONNECTOR,HTR OTLT HOSE(PART OF 15)(74.93MM LONG)(QUICK CONNECT ASM)

【17】11516589 Bolt, hex. headpin with conical spring washer, M6X1X30, 29 threaded, outer diameter 17,9.8,7114 M, Z

【2】11570381 Band, spg, nominal diameter, width 15mm, material 6298M (radiator reserve tank inlet hose)

【13】11570615 Clamp (1.240), pcv hose

【12】11571140 Clamp, steering gear boot (1.240)

【25】15041309 Clip, radiator reserve tank inlet hose (19 parts) (1.166)

【15】15058002 HOSE,RAD SURGE TK OTLT(INCLS 5,7,13,14,16,22,23)(CODE 8002)

【1】15075118 Cap, radiator filler (english/french label) (1.240) (AC-DELCO# RC98)

【24】15734742 Clamp, radiator
