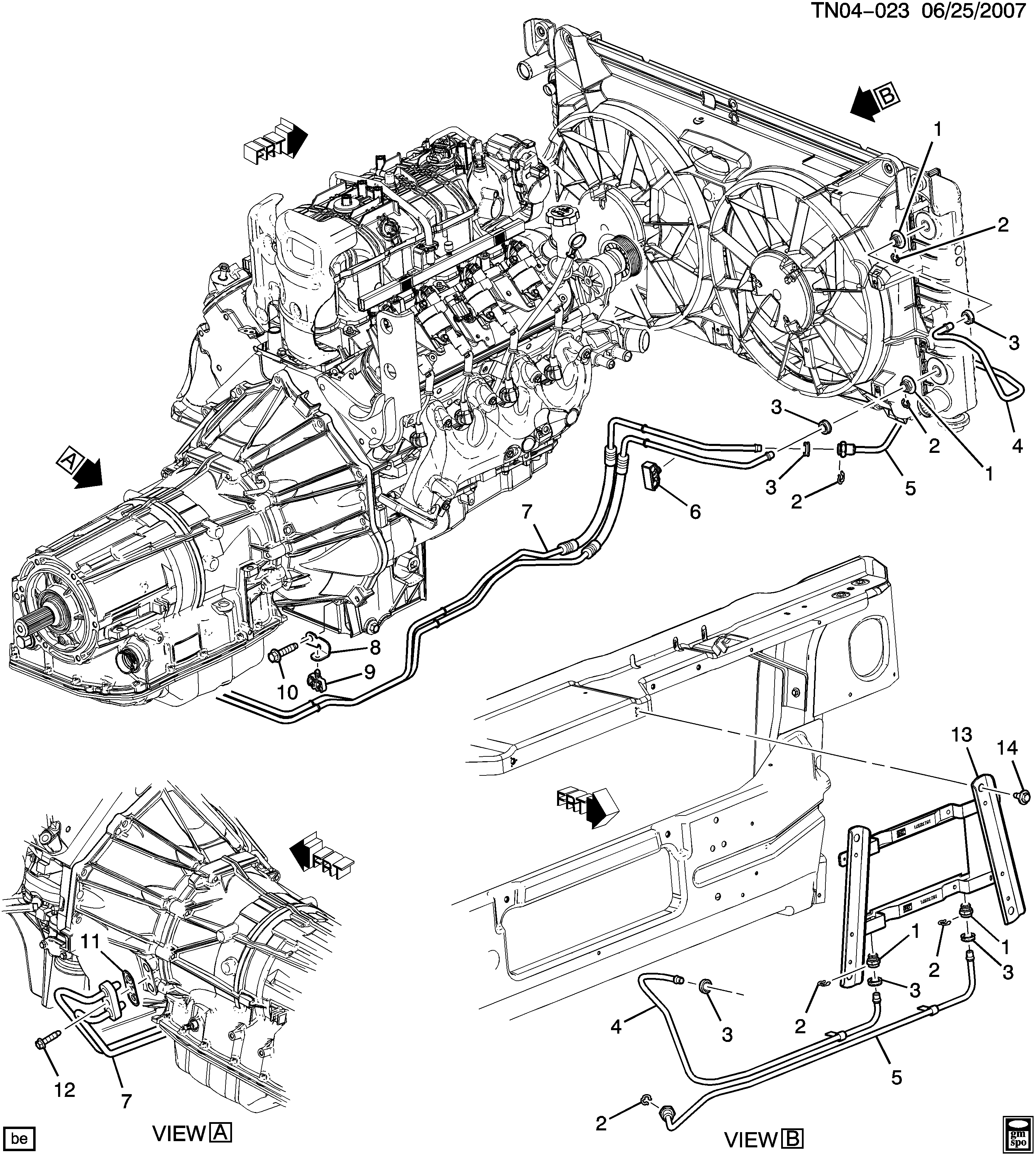

PIPE,TRANS FLUID CLR INL & OTLT(INCLS 3,6,9,11)(ACDelco #15147184)

【14】11515755 BOLT,HEX,M8X1.25X16,15 THD,18 O.D.,10.9,7114M(RAD SUPT)(T/W 12345493 REPLCS 2553

【12】11515758 Bolt-t/m mounting

【3】15052228 Oil cooler tube connector cap

【1】15226661 Connector (including 12) (9/16-18) (3/8 body quick connector) (on radiator) (AC-DELCO #15226661)

【11】15251488 SEAL, TRANS FLUID CLR HOSE

【4】15827947 PIPE,TRANS FLUID AUX CLR INL(INCLS 2)(ACDelco #15827947)

【1】19210848 Connector (parts of 1) (including 2) (without beveling washer) (aluminum) (AC-DELCO #19210848)

【2】24205103 RETAINER
