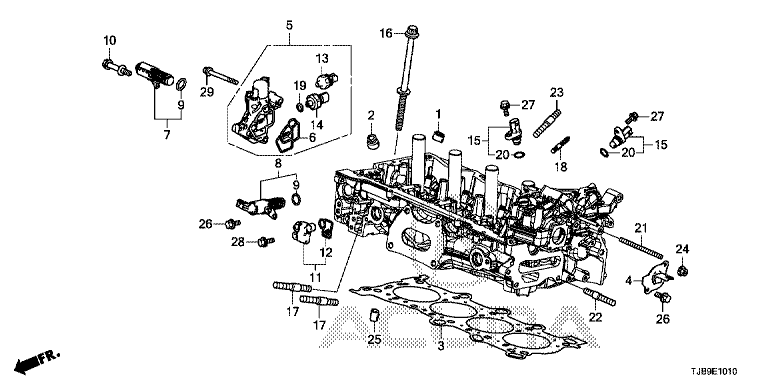

VALVE ASSY,SPOOL

【1】12210PZ1003 SEALA,VALVESTEM

【2】12211PZ1003 Sealb, valvestem

【3】12251RPYG02 Gasket comp., cyl

【4】125135A2A10 Cover, camshaft bracket

【6】15815RPYG01 Strainer, oil valve

【7】15830RPYG01 VALVE ASSY-CONTROL

【8】15831RPYG01 VALVE ASSY-CONTROL

【9】15832RPY003 O RING-8.8X1.9

【10】15835PNA003 Bolt, vtc sol

【11】15840RPYG00 FILTER ASSY-OIL,AUTO TRANSMISSION

【12】15845RPYG01 Strainer-VTC

【13】37241RNAA01 Switch assy, oil press (DENSO)

【14】37260RNAA01 SENSOR, OIL PRESSURE

【15】3751059BJ01 Sensor assy, tdc

【16】90005RPYG01 BOLT WASH 6X24

【17】9000959B003 Bolt, stud 10X31

【18】900415J6A00 Bolt 6X18 stud

【19】91319PAAA01 O-ring, 13X1.5

【20】91333PNA003 O-ring 15X1.9

【21】92900060500B Bolt, stud 6X50

【22】92900080251B Bolt, stud 8X25

【23】92900080321B Bolt, stud 8X32

【24】9405006080 NUT,FLANGE,6MM

【25】9430114200 Dowel, pin, 14X20

【26】957010601408 BOLT,FLANGE,6X14

【27】957010601608 Bolt 6X16, flange

【28】957010602008 Bolt, flange 6X20

【29】957010604508 BOLT FLANGE,6X45
