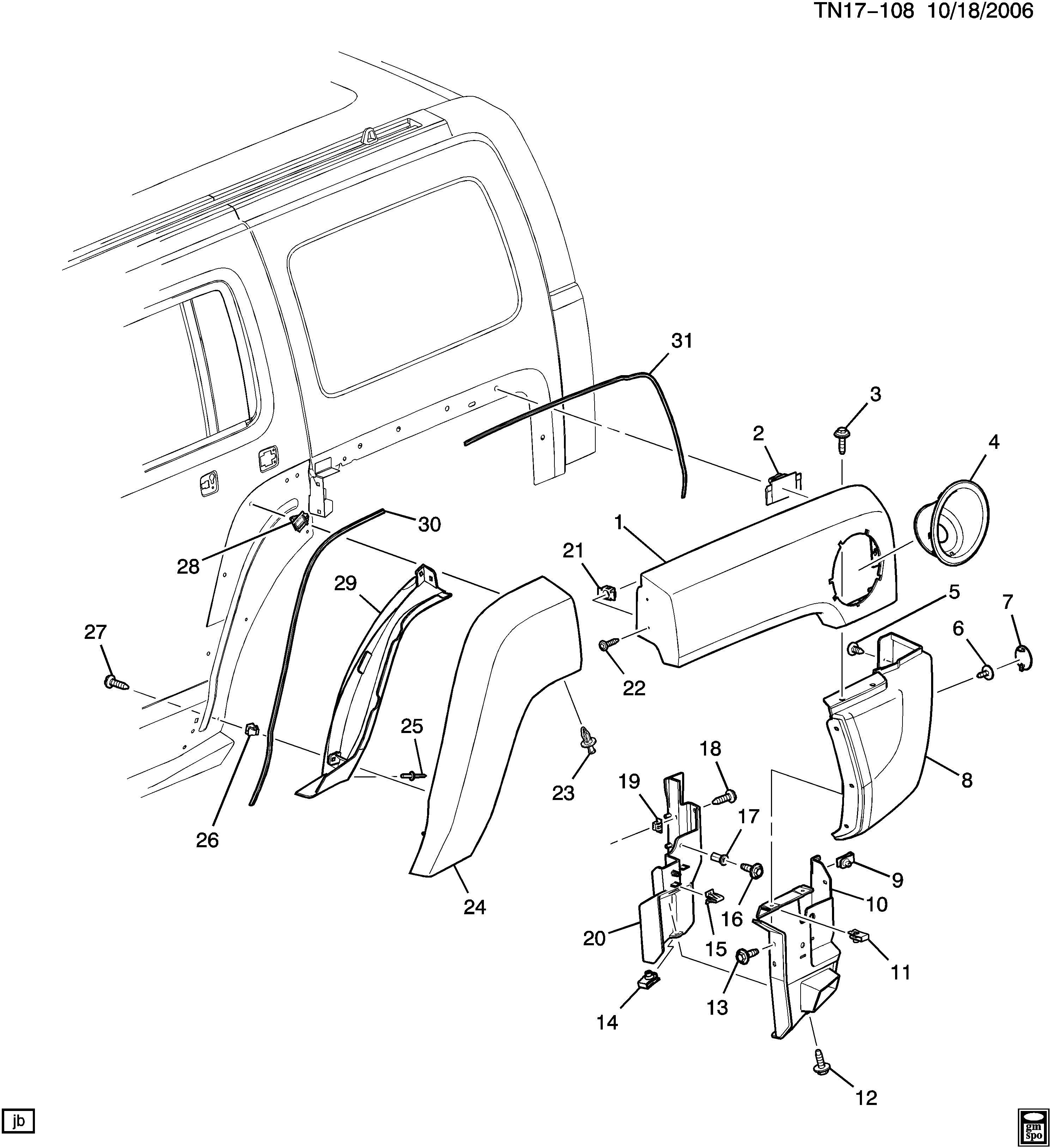

EXTENSION,RR BPR IMP BAR(INCLS 5,9-11)(USE WITH ENDCAP 15828092)

【9】11515638 NUT, U-TYPE (M4.2X1.41X10.5)

【25】11516807 POP rivet, diameter 4.8, length 19.9, outer diameter 16, hole 5-5.25, clamping range 1-9, aluminum,

【14】11518121 Nut, U, M6X1, multithreaded, thick. 5 -4.0 (rr susp strut)

【2】11562147 RETAINER,F/FDR FLARE(PART OF 6)(NATURAL)(7MM THK SEAL)

【28】11562333 RETAINER,RR WHL OPG FLARE(PART OF 11)(22 X 16.3 MM)(FITS 8.5X14MM SLOT)(17.507)

【15】11588650 CLIP,12X14X16.6,GM4345M(PART OF 17)

【5】11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205(HOOD PRIM LAT REL C

【21】11609952 Clamp-engine bottom deflector

【16】11609989 BOLT,HEX W/FLAT WASHER,M6X1X25,15 THD,17 OD,6202M STL,GMW3200,TAPTITE(COOL RCVY

【27】11610068 BOLT,HEX WA, M4.2X1.41X30, 20.9 THD, 17 OD, GM6010M STL, GMW4205(RAD AIR SI BFL)

【26】11610157 NUT,PNL,M4.2X1.41,8.5X11.9,2.3-2.8 PNL,FITS 11.2X9.2 HOLE,1050,GMW33(PART OF 1)(

【4】15794626 HOUSING,F/TNK FIL PIPE

【24】15852218 FLARE,RR WHL OPG(INCLS 18,19)(PAINT TO MATCH)(FLARE W/O SEAL & INNER BRACKET)

【20】15853261 BRACKET,QTR OTR PNL EXTN(INCLS 46,47)

【1】15853279 FLARE,Q/PNL(PAINT TO MATCH)(FLARE W/O SEAL & RR BPR EXTENSION)
