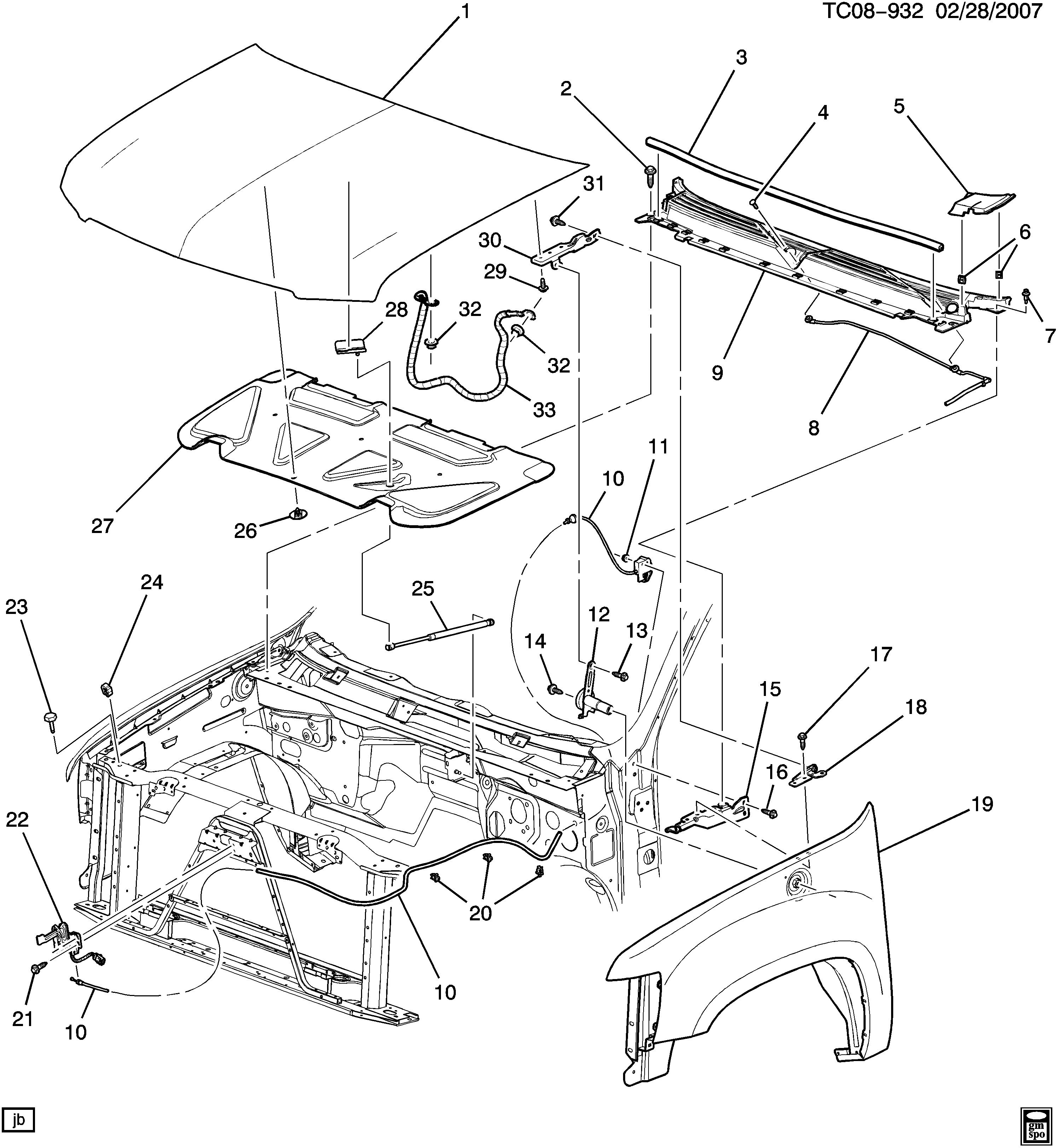

HOOD,(INCLS 28)

【4】10146315 Retainer (6 parts) (. 25 hole) (long 1.48) (push-in with fin retainer) (14.731)

【20】10150076 Clamp, hood main latch open cable (18.8 in diameter) (circular clamp) (3.425)

【31】11515755 BOLT,HEX,M8X1.25X16,15 THD,18 O.D.,10.9,7114M(RAD SUPT)(T/W 12345493 REPLCS 2553

【11】11516780 NUT,HEX W/CON WA,M8X1.25,10THK,19 O.D.,10,7111M(TRANS FLUID FIL TUBE)(8.917)

【13】11569992 Bolt, auxiliary spring for hood open (M8X1.25X25) (hexagon head with flange, 13.5 shoulder diameter)

【17】11570082 BOLT,HFH,M8X1.25X22,19 THD,18 OD,10.9,GMW3359(OIL FIL TUBE)(ACDelco #11570082)

【13】11589064 Hinge, eng room cover

【32】11609411 Nut (m6x1x5.7mm) (hexagon-non-plated GMW3200) (8.917)

【24】15250133 Bumper-hood side

【15】15870422 Panel-fr

【18】15887400 Hinge, eng room cover

【18】15887401 Hinge, eng room cover

【30】15942145 Hinge assy-hood

【30】15942146 Hinge assy-hood

【15】15951192 Panel-fr

【26】20064875 Spacer, eng cap (black) (8.950)

【8】20908176 Hose (9 parts) (including nozzle through air intake panel)

【10】20968782 Cable, hood main latch

【23】22951585 Damper, eng room cover front

【5】25820729 Plate (black), air inlet

【5】25820730 Plate (black), air inlet

【12】25870070 Spring, hood opening assist

【9】25872303 Plate (center) air inlet (incl 3,4, 8) (black) (incl. Hose to nozzle)
