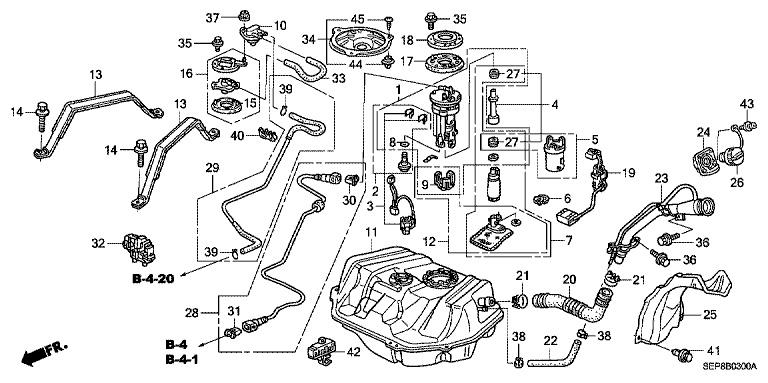

ADJUSTER ASSY-LASH

【1】16010SDGH00 STRAINER SET, FUEL

【4】16017S9ET00 PIPE COMP,JOINT

【5】16019SDCE00 Housing assy

【6】16711S5HT31 INS RUBBER,F/PUMP

【7】17040SEPH01 SET,F/PUMP ASSY

【8】17043S5HT30 GLASSCOMP,SIGHT

【9】17044SDCE01 Bracket C

【10】17371SR3A01 VALVE 2WAY

【11】17500SDGH51 SET,FUEL TANK COM

【12】17516SDGH50 SET,F/PUMP FILTER

【13】17521S84A00 Band, fuel tank mounting

【14】17525SM4000 Bolt wash 10X35

【15】17551S84A01 SHIM

【16】17570S84G01 VALVE-FUEL CUT

【17】17574S84A01 PACKING,BASE

【18】17579SDCE01 Mounting clip

【19】17630SDCE01 SET,METERCOMP

【20】17651S84A01 TUBE,FILLER NECK

【21】17652SDAT01 CLIP,FILLER TUBE

【22】17658S82G01 PIPE/TOUAREG/A3-2008

【23】17660S84T00 PIPE COMP., FUEL FIL

【24】17662S04003 Packing, fuel fill

【26】17670SHJK02 CAP FUEL FILLER

【27】17705S0XA01 GROMMET

【29】17710SDCE01 Tube comp., fuel vent

【30】17711S0X003 RETAINER

【31】17711S0X931 RETAINER

【32】17712S84A01 CLAMP,FUEL PIPE

【33】17716SDCE00 BREATHER,AIR

【34】74660SDAA00 Cap assy-fuel service

【35】90101S84000 Bolt, wash.5x10

【36】90150S04003 Bolt 6X16 earth

【38】90700SDA003 CLAMP,FUEL PIPE

【39】91401SDC000 CLAMP

【40】91401VA7003 CLAMP D12,TUBE

【41】91512SX0003 Clip, inn fender

【42】91592SDCE01 Clamp B, fuel pipe

【43】91594S1AE01 CLIP,FUEL FILLER

【44】91601SH3013 Grommet screw 5mm

【45】9390125220 SCREW,TAPPING,5X1
