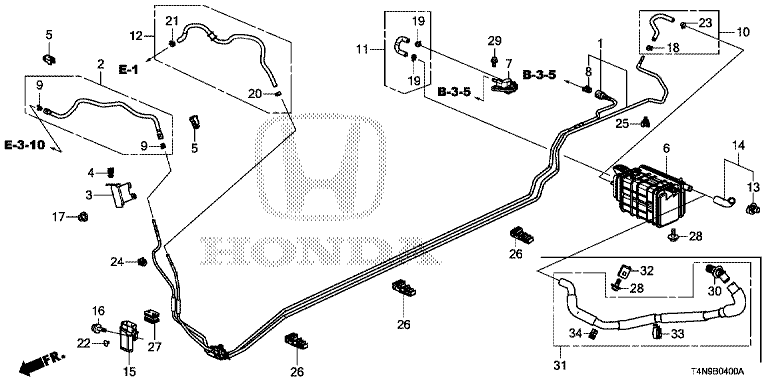

PIPE ASSY-FUEL

【2】167225M1H01 HOSE FUEL FEED

【4】16725RAC003 Clamp, fuel tube

【5】16725RNAA00 HOLDER A,FUEL CON

【6】17300SNA023 CANISTER ASSY

【7】17371SLJ003 VALVE 2WAY

【8】17711S0X003 RETAINER

【9】17711S0XA31 RETAINER

【11】17724SNA000 TUBE,FUEL VENT

【12】17726T4NH01 Hose assy-fuel purge

【30】17742T4NH01 Joint, drain

【13】17743SFE003 Joint, drain

【16】90150S04003 Bolt 6X16 earth

【17】90361SV4003 NUT, PAINT CUTTING, 6MM

【18】91404SDC000 CLAMP D25,TUBE

【19】91404TA0G01 Clamp, fuel tube

【20】91405SDA000 CLAMP D25,TUBE

【21】91407SDB000 CLAMP D25,TUBE

【22】91515SDAA01 CLIP,HOOD LOCK CO

【23】91591SMA931 CLAMP D25,TUBE

【24】91591TA0A01 Clamp A, fuel tube

【34】91596T2AG01 CLAMP,BRTHER TUBE

【26】91596TR0G01 Clamp C, fuel tube

【28】934050601604 BOLT-WASH,6X16

【29】938910601208 Screw 6X12 wash
