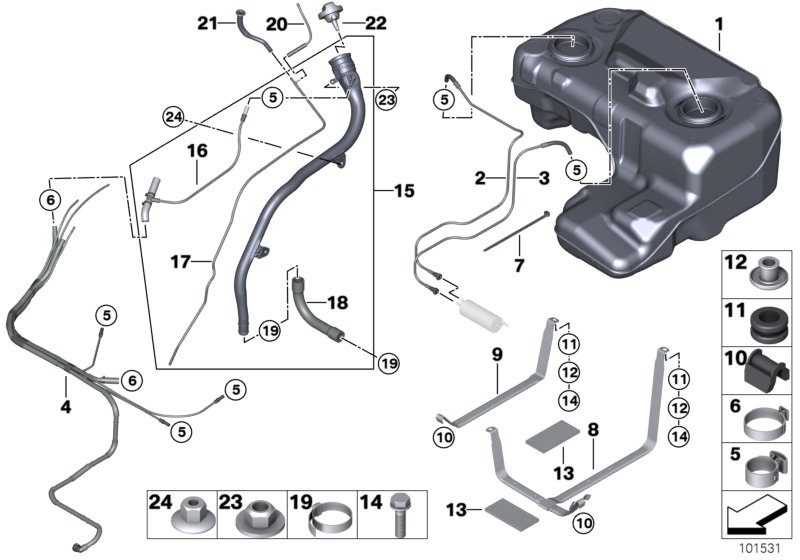

HARNESS

【14】07119905532 Hex bolt with washer

【23】07129904870 NUT,HEX 6MM

【19】07129952117 HOSE CLAMP111069

【06】11631716970 Hose clip

【11】16111182454 RUBBER.SEAL

【10】16111184018 Rubber, absorber

【08】16111184542 Strap-anchor lh

【09】16111184551 Band of retainer, rh

【17】16116751578 Tube-discharge

【01】16116766596 Plastic fuel tank

【18】16117174639 Moulding hose

【04】16117175075 Pipe, fuel

【02】16117175079 Pipe, fuel feed

【15】16117175082 Plastic-filler pi

【03】16117175084 TUBE, FUEL RETURN

【22】16117193384 Cap, fuel tank

【12】16117194458 Spacer sleeve

【05】16121180240 HOSE CLAMP111069

【24】16131183133 Plastic nut screw

【07】61131367599 Strap-wire
