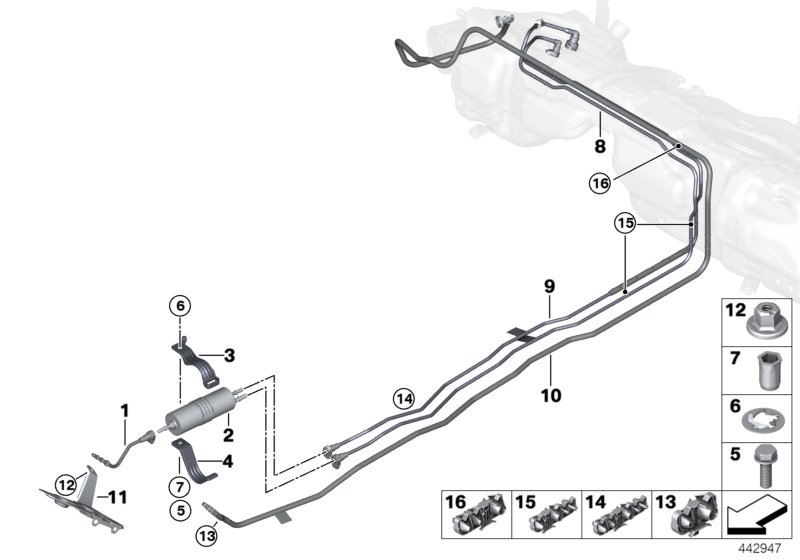

Pipe, fuel feed, rear

【05】07119904793 Hex bolt with washer

【07】07147132312 Nut flat, blind rivet

【12】07147336362 Plastic nut screw

【06】13328511095 Lock-axial

【11】16127244171 Protector

【15】16127258742 Clip quadruple

【14】16127258750 Clip penta

【16】16127258753 Pipe clip comp

【09】16127271020 TUBE, FUEL RETURN

【13】16127277360 Wire clip double

【03】16127292265 Filter, bracket fuel

【04】16127292266 Bow piece

【01】16127351132 Pipe, fuel feed, front

【10】16127351133 Tube, purge air

【02】16127451424 Filter-fuel
