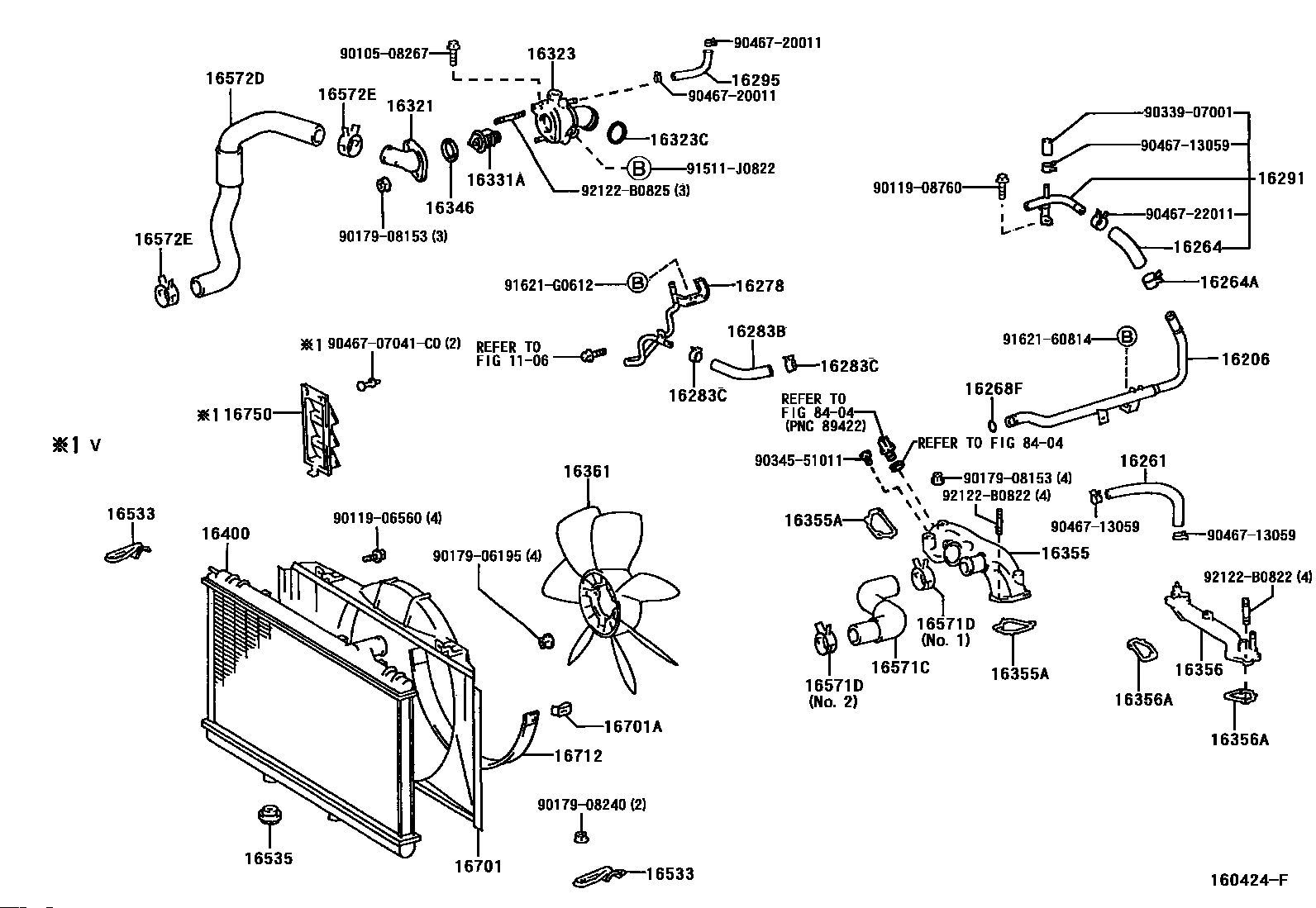

RADIATOR ASSY

【16206】1620650120 Pipe sub-assy, water by-pass

【16261】1626150090 HOSE, WATER BY-PASS

【16321】1632150010 INLET-WATER

【16321】1632150020 INLET-WATER

【16356A】1634150010 GASKET(FOR WATER BY-PASS JOINT FRONT)

【16356A】1634150020 GASKET(FOR WATER BY-PASS JOINT FRONT)

【16346】1634632010 GASKET-THERMOSTAT

【16346】1634650010 GASKET-THERMOSTAT

【16361】1636150020 FAN

【16572D】1657250120 HOSE RADIATOR NO.2

【16701】1671150060 SHROUD SUB-ASSY, FAN

【16264A】9046722008 CLAMP OR CLIP(FOR FUEL HOSE NO.1)

【16535】9048040016 SUPPORT, RADIATOR, LOWER

【16331A】9091603084 Thermostat

【16331A】9091603100 Thermostat

【16268F】9676124019 CLAMP OR CLIP(FOR FUEL HOSE NO.1)

【16323C】9676135035 RING, O(FOR WATER INLET HOUSING)
