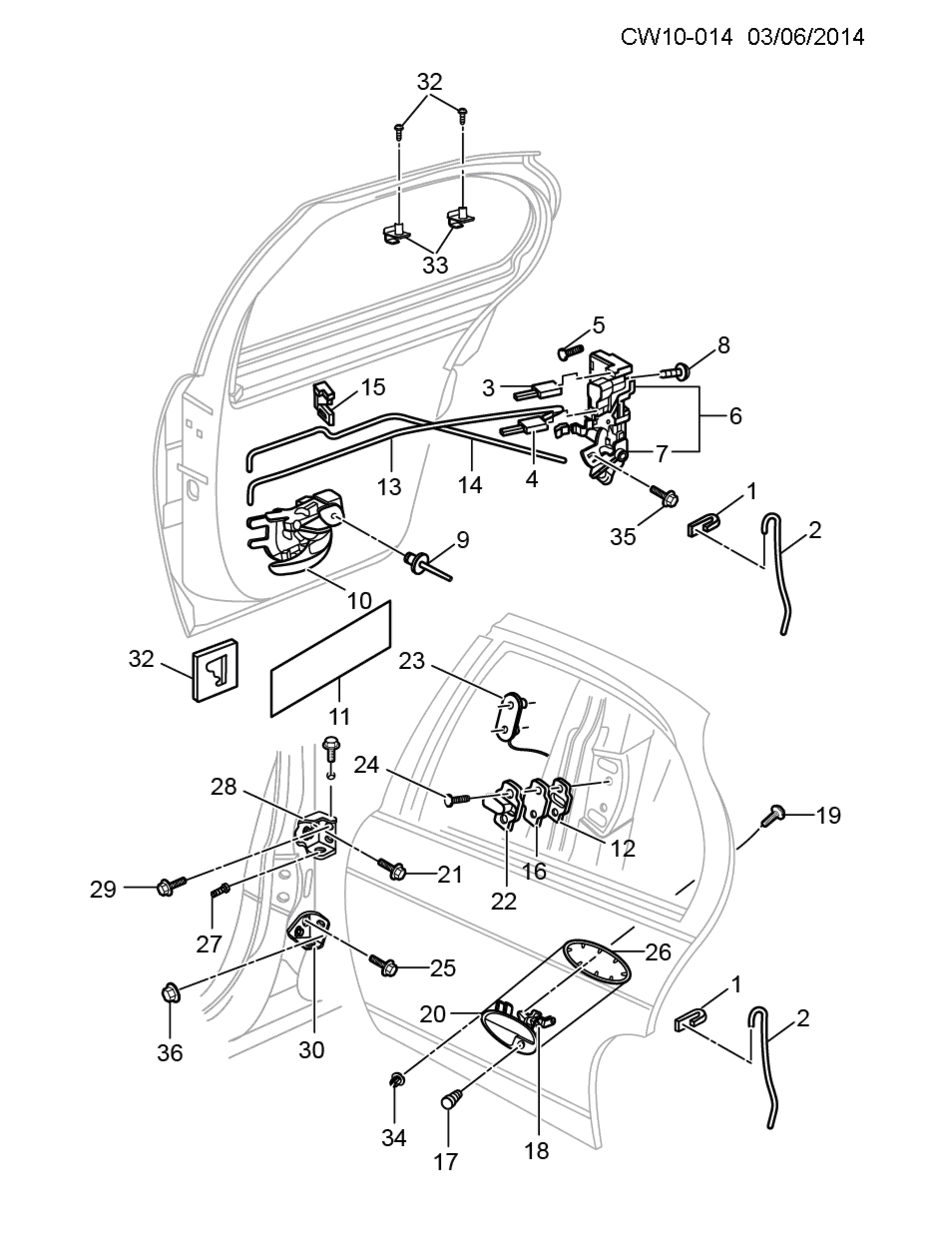

Latch, rear door (without actuator) (l)

【002】10254432 Lever, r. rr. side outer handle

【015】10267726 Clip, rr dr I /s hdl (white) (double l) (10.515)

【009】10274355 Rivet, r. fr. door inside handle

【016】10303265 Spacer, front door lock striker

【020】10303523 HANDLE, RR S/D O/S-CRUZE

【020】10303524 HANDLE, RR S/D O/S-CRUZE

【010】10308954 Handle (black) (l), side

【031】10404692 Seal, quarter door inside handle

【013】10439210 Lever, r. rr. door lock

【035】11508023 Bolt (HRD PT PZOR) (8.977), fuel tank filler pipe bracket

【029】11517867 Hinge assy-fr dr

【009】11519023 Rivet, POP rivet body 0.256, length 0.643, claw range 0.189-0.268,1033 steel, (fuel tank filler door

【019】11519200 Window assy-fr dr

【009】11561257 RIVET, DOME, 6.3DIA X 16.125, 13 OD, AL ALLOY, PLAIN,1.52-8.26 GRP R(INTER S/D

【015】11588650 CLIP,12X14X16.6,GM4345M(PART OF 17)

【024】11589019 SCREW,FLAT,CSK,M8X1.25X35,28 THD,15.4 OD,9.8,3044GMW,TORX, SILVER(FRT S/D LAT ST

【008】11609341 Bolt, rear door lock (M6X1.0X16 mm) (length 22.85)

【035】11609540 Bolt (M9) (M6X1X20) (6 )

【004】12101855 CONNECTOR,SI MKR LP(PART OF 1)(BLACK)(2-WAY FEMALE)(W/LEADS)(2.535)(ACDelco #PT2

【003】15306129 Connector, door lock switch

【034】16606936 Snap (to bracket) (10.565), outside handle

【018】16626791 BUMPER,FRT S/D LK LKG LVR(PART OF 9)(10.485)(**VPI 1-877-846-8243)

【022】16629888 Striker (black) (incl

【007】16636578 Latch, rear door (without actuator) (r)

【034】16640343 CLIP,RR S/D O/S HDL(PART OF 35)(YELLOW)(W/ROD WITH (2) 90 DEGREE BENDS)(THREADED

【012】22597807 Grommet, r. rr. door (10.571)

【022】22721425 STRIKER,FRT S/D LK(BRIGHT)(INCLS STRIKER & PLATE)(10.569)

【027】5475190 Hinge assy-rr dr

【010】5475714 Handle, r. rr. door inside

【010】5475715 Handle, r. rr. door inside

【031】5476725 Seal, quarter door inside handle

【036】9004536 Nut, intake manifold (8mm diameter) (9.242)

【006】9025064 Lock, rear (with CCC certification)

【006】9025065 Lock, rear (with CCC certification)

【030】9037110 HINGE

【030】9037111 HINGE

【028】9037112 Hinge, r. rr. door

【028】9037113 HINGE

【011】90925522 Silencer, front side door (250*500) (with a 2*250*500 part inside)
