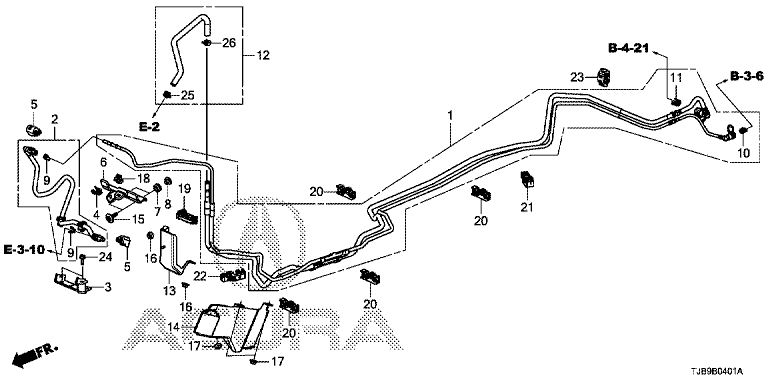

HOSE FUEL FEED

【4】16725RAC003 Clamp, fuel tube

【5】16726RYEA01 Bracket B, fuel connector

【8】169235G0A00 Bush mounting

【9】17711S0X931 RETAINER

【10】17711S84004 RETAINER

【11】17711SNAA01 RETAINER

【15】90001P7J000 Bolt, spl 6X25

【16】90301S7A003 NUT, PAINT CUTTING, 6MM

【17】90301SV7000 NUT, PAINT CUTTING, 6MM

【25】91412SDCL01 Clamp, fuel tube

【18】91591SHJA01 Clamp A, fuel tube

【22】91596TA1L01 CLAMP C, FUEL PIPE (BLACK)

【24】957010601608 Bolt 6X16, flange
