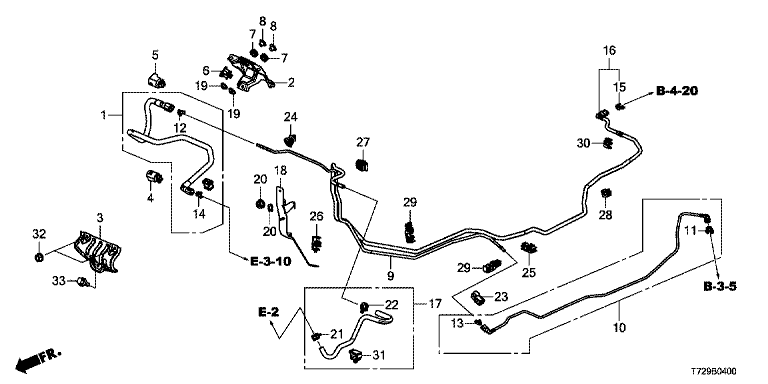

HOSE FUEL FEED

【2】167235PHA00 Stay comp., fuel feed hose

【3】167245PHA00 Bracket, fuel inlet pipe

【4】16725RNAA00 HOLDER A,FUEL CON

【5】16726RYEA01 Bracket B, fuel connector

【6】16727PND004 Clamp, fuel tube

【8】169235G0A00 Bush mounting

【9】17700TLAX01 Pipe, fuel feed

【10】17707T72H01 PIPE ASSY-FUEL

【11】17711S0X003 RETAINER

【13】17711S0X931 RETAINER

【14】17711S0XA31 RETAINER

【15】17711SNAA01 RETAINER

【16】17720TLYH51 Pipe comp., fuel purge

【17】17726TLYH50 Hose assy-fuel purge

【18】17762TMCP01 Stay B, fuel tube

【19】90321SV4003 Nut-washer, 6mm

【20】90361SV4003 NUT, PAINT CUTTING, 6MM

【21】91412SDCL01 Clamp, fuel tube

【23】91581THAH01 Clip earth

【24】91591SHJA01 Clamp A, fuel tube

【25】91591TLAA01 Clamp A, fuel tube

【26】91592TLAA01 Clamp B, fuel pipe

【27】91593TLAA01 Clamp C, fuel tube

【28】91595TLAA01 Clamp D, fuel pipe

【29】91596TA1L01 CLAMP C, FUEL PIPE (BLACK)

【30】91597TLAA01 CLAMP E,FUEL PIPE

【31】91598TAA003 Clamp, purge hose

【32】9405006080 NUT,FLANGE,6MM

【33】957010601208 Bolt, flange 6X12
