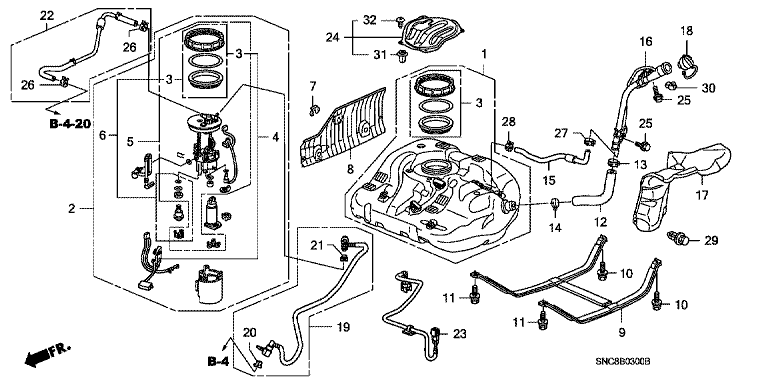

MODULE FUEL PUMP

【3】17046SNA000 SET,FUEL LOCK NUT

【4】17047SNA000 SET,METER COMP

【7】17513S0E003 RING-RETAINING

【8】17519SNA000 PROTECTOR-FUEL TANK

【9】17520SNA000 BAND COMP,F/TANK

【11】17525S0XA00 BOLT-WASH.,10X25

【10】17525SM4000 Bolt wash 10X35

【12】17651SNA003 TUBE,FILLER NECK

【13】17652SDAA31 CLIP,FILLER TUBE

【14】17652SEL003 CLIP,FILLER TUBE

【15】17653SNA003 PIPE-BREATHER

【16】17660SNA003 Pipe comp., fuel filler

【17】17668SNA000 COVER,F/FILLER PI

【18】17670SJA013 Cap comp, fuel

【20】17711S0X004 RETAINER

【21】17711S84004 RETAINER

【22】17722SNA003 Tube comp., fuel vent

【25】90150S04003 Bolt 6X16 earth

【26】91404SDC000 CLAMP D25,TUBE

【26】91404TA0G01 Clamp, fuel tube

【27】91413S5A003 Clamp, fuel tube

【28】91462SDA003 Clamp, fuel tube

【29】91512SX0003 Clip, inn fender

【30】91594SNAA01 CLIP, FILLER CAP (BLACK)

【31】91601SH3013 Grommet screw 5mm

【32】9390125220 SCREW,TAPPING,5X1
