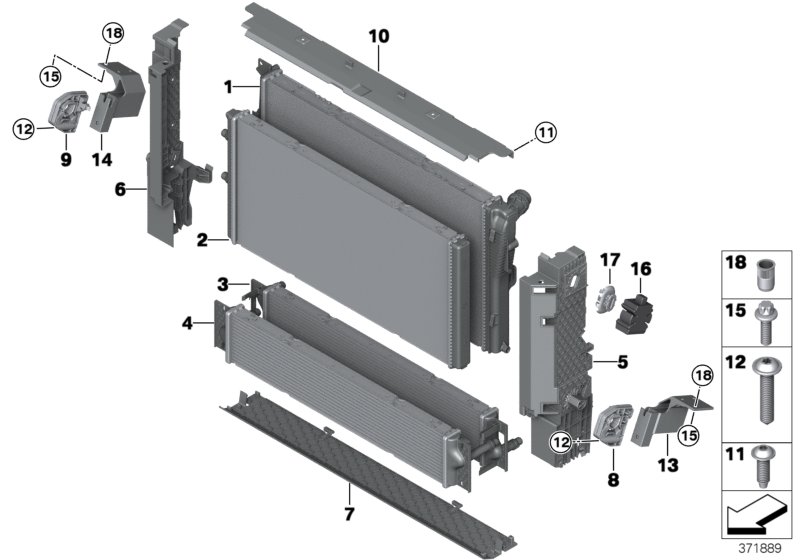

Radiator cooler

【15】07119907189 Bolt, hex

【18】07147206553 Nut countersunk, blind rivet

【02】17112284608 Radiator cooler

【11】17117536971 TAPPING SCREW

【16】17117553480 Mounting rubber

【17】17117553481 Mounting rubber

【12】17117596108 Screw, oval countersunk

【10】17117600543 Seal upr

【13】17117645967 Brkt module lh

【14】17117645968 Bracket module rh

【03】17117649142 Radiator cooler

【04】17117649143 Radiator cooler

【05】17117649144 BRACKET WING MODULE LEFT

【06】17117649145 THE BRACKET MODULE IS RIGHT

【07】17117649147 Seal lower

【08】17118620732 Brkt module lh

【09】17118620733 Bracket module rh
