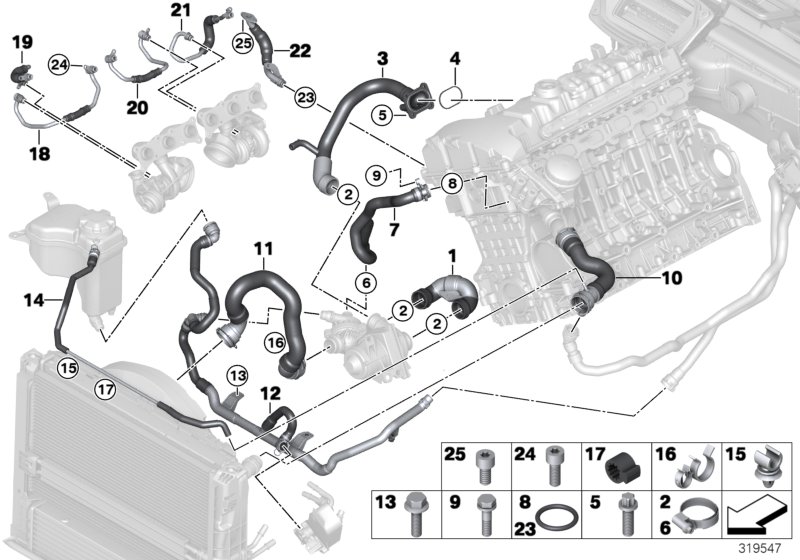

WATER HOSE-COOLING/E90-3 SRS

【09】07119905591 Hex bolt with washer

【24】07129904588 Bolt-ISA

【05】07129905568 BOLT

【25】07129905867 Bolt-ISA

【02】07129952119 HOSE CLAMP111069

【23】11427558936 O ring

【07】11537541992 WATER HOSE115050

【08】11537545278 O ring

【04】11537545302 Grommet

【01】11537545665 HOSE/RADIATOR-3E90/3E91/5E60

【06】11537547945 HOSE CLAMP111069

【03】11537558523 COOLANT HOSE-3(E90)

【18】11537558899 WATER PIPE FEED111064

【19】11537558900 WATER PIPE RETURN11509953

【20】11537558901 WATER PIPE FEED111064

【21】11537558902 WATER PIPE RETURN11509953

【15】13311738201 CLIP,CAP END

【10】17127540127 RADIATOR HOSE/E82/E88/E90/E91

【13】17127545785 TAPPING SCREW

【11】17127564480 COOLANT HOSE/E82/88/90/91/X1

【14】17127565094 Tank assy-exhaust

【15】34321156893 HOSE CLAMP111069

【16】64216918118 HOSE CLAMP11509953
