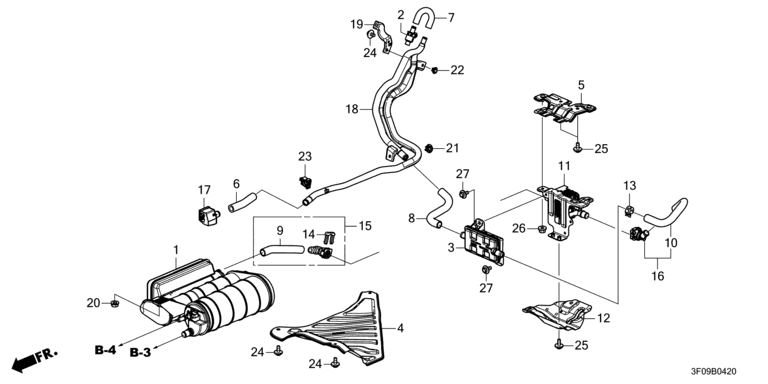

CANISTER ASSY

【2】17307TLAA03 Check valve-canister

【3】17315T5RA01 FILTER,CANISTER

【4】173183A0A00 BAFFLE, HEAT CANISTER

【6】173723A0A00 TUBE A,DRAIN

【11】17391TLAA03 MODULE ASSY., EVAPORATIVE LEAK CHECK

【12】17396TLAA00 COVER, EVAPORATIVE LEAK CHECK MODULE

【13】17562SDCL01 CLAMP D25,TUBE

【15】17741TLAA00 Tube assy. A, drain

【16】17742TLAA00 Pipe assy B, exhaust

【17】17743TLAA02 BOX, FUEL DRAIN

【21】91501TR0003 Clip, inn fender

【22】91512SX0003 Clip, inn fender

【24】934050601204 BOLT-WASH.,6X12

【25】934050601604 BOLT-WASH,6X16

【26】9405006040 NUT,FLANGE,6MM

【27】957010601204 Bolt, flange 6X12
