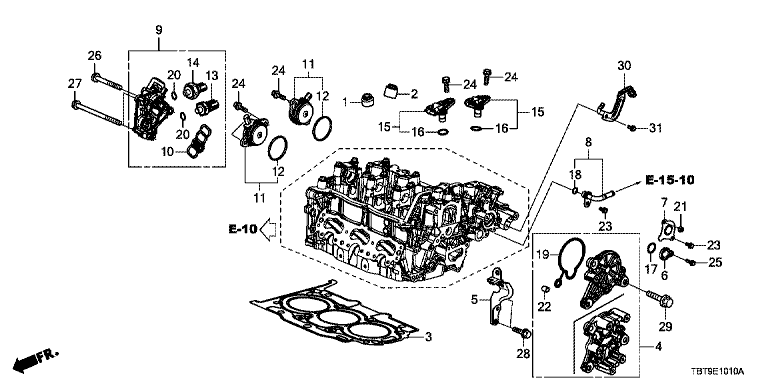

STAY COMP., JOINT PIPE

【1】12210PZ1003 SEALA,VALVESTEM

【1】12210PZ1004 SEALA,VALVESTEM

【2】12211PZ1003 Sealb, valvestem

【2】12211PZ1004 Sealb, valvestem

【3】122515AYH01 GASKET COMP,CYLN

【4】122766P7B00 PLATE COMP., CYLINDER HEAD

【4】122766P7H00 PLATE COMP., CYLINDER HEAD

【5】122915AYH01 BRACKET COMP., LIFTING

【6】125125R0000 Plate, cylinder head exhaust

【7】125135R0000 Cover, camshaft bracket

【8】128105AYH00 PIPE ASSY., AIR SEPARATION

【9】158105R0003 VALVE ASSY,SPOOL

【10】158155R0003 Filter assy., spool

【11】158305AYH01 SOLENOID ASSY., VTC

【12】158325AY305 SEALING, VTC SOLENOID

【13】37250R1AA01 SW ASSY,V/T OIL P

【14】37260RNAA01 SENSOR, OIL PRESSURE

【15】37510RPYG01 Sensor assy, tdc

【16】37515RPYG01 SEAL,RING

【17】913015R0003 O-ring A, roof plate

【18】913035AYH00 O-RING 7.8X1.9

【19】913055R0000 O-RING, VACUUM PUMP HOLDER

【20】91319PAAA01 O-ring, 13X1.5

【21】9405006080 NUT,FLANGE,6MM

【22】9430110120 DOWEL,PIN,10X12

【31】957010601408 BOLT,FLANGE,6X14

【24】957010601608 Bolt 6X16, flange

【25】957010601808 Bolt, flange, 6X18

【26】957010605008 Bolt, flange 6X50

【27】957010609008 BOLT,FLANGE,6X90

【28】957010802008 Bolt, flange 8X20

【29】957010803008 Bolt, flange 8X30
