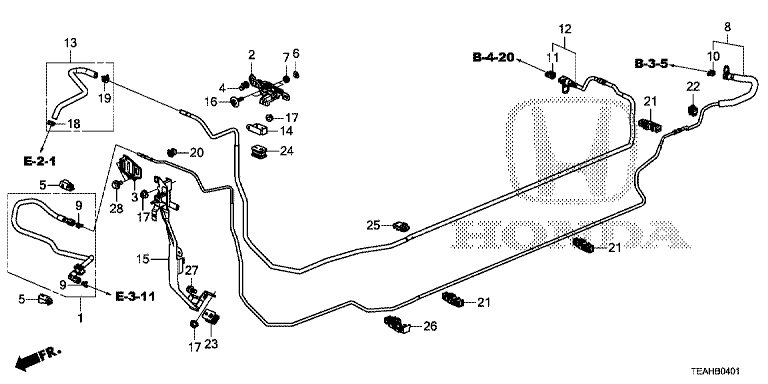

PIPE ASSY-FUEL

【1】167225AAA01 HOSE FUEL FEED

【2】167235BAA00 Stay comp., fuel feed hose

【3】167245BAA00 COVER,FUEL PIPE

【4】16725RAC003 Clamp, fuel tube

【5】16725RNAA00 HOLDER A,FUEL CON

【7】17260PE0670 Rubber mounting

【9】17711S0XA31 RETAINER

【10】17711S84004 RETAINER

【11】17711SNAA01 RETAINER

【14】17761TGGA00 Stay, fuel tube

【16】90001P7J000 Bolt, spl 6X25

【17】90361SV4003 NUT, PAINT CUTTING, 6MM

【18】91408SDB000 CLAMP D25,TUBE

【19】91412SDCL01 Clamp, fuel tube

【20】91591TA0A01 Clamp A, fuel tube

【21】91591TGGA01 CLAMP, FUEL PIPE (A) (BLACK)

【22】91592TEAT01 Clamp B, fuel pipe

【23】91594SDAA00 INS RUB A,FUEL PI

【24】91594TAA000 Insulator, fuel pipe

【25】91595TBCA01 COVER, FUEL PIPE (BLACK)

【26】91596TBCA01 Clamp A, fuel tube

【28】957010601208 Bolt, flange 6X12
