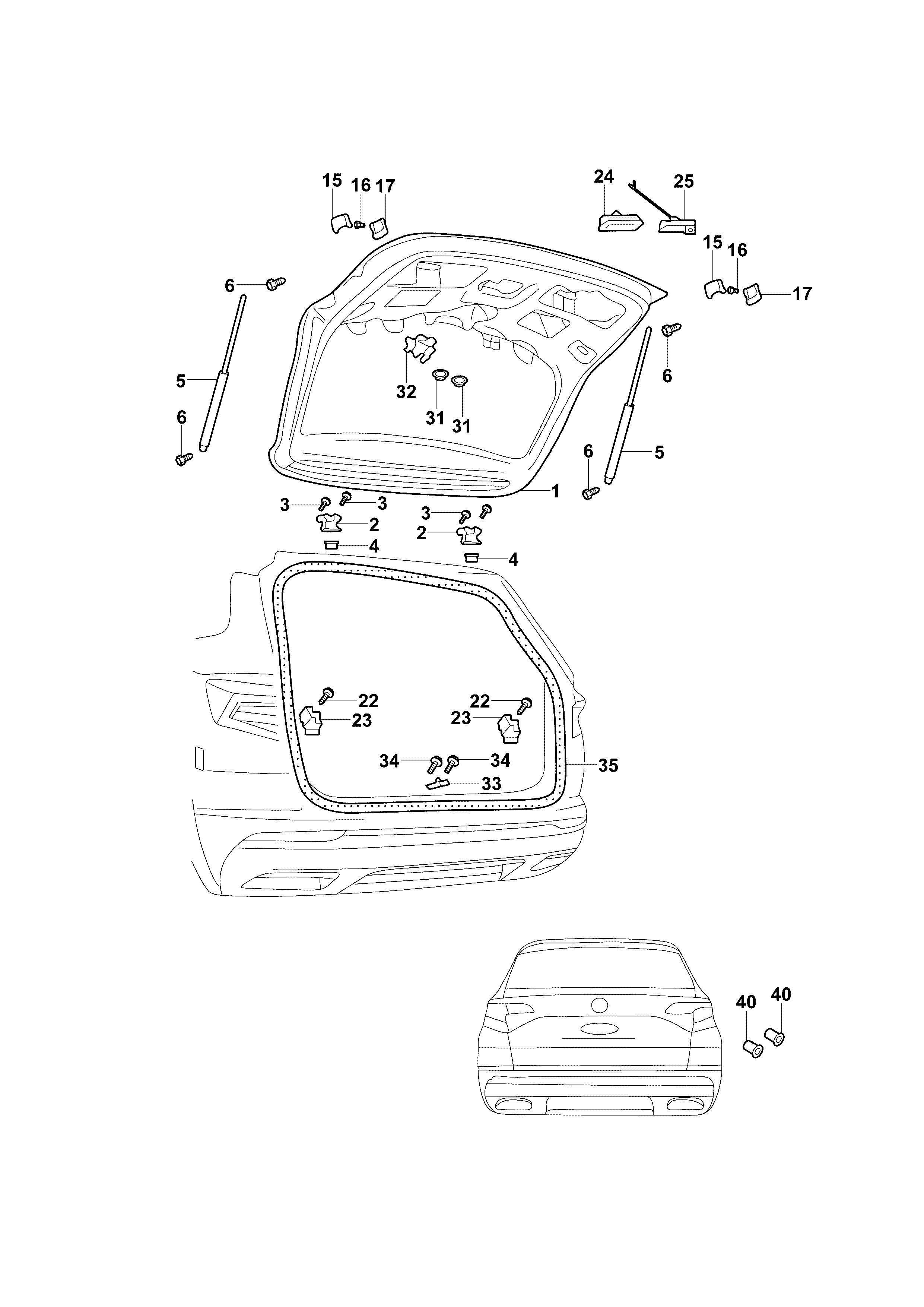

Seal, hatch

【1】18A827025B Rear hatch cover:

【32】18A827505 Lock, hatch

【32】18A8275059B9 Hatch lock

【5】18A827550 GAS SPRING VW TIGUAN

【25】18A827566 Knob, for power hatch lock operation

【35】18A827705A Weatherstrip, hatch

【15】3C9827339 Protector plate

【15】3C98273399B9 Boot cover

【24】3VD827566 HDL ASSY-ROOF ASSIST FR,LH

【6】5E5827439 Ball pin

【2】5GG827301 LOCK ASSY, BONNET

【23】5ND827373 Stopper

【23】5ND8273739B9 Stopper

【17】5ND827499 Stopper, adjustable-headlamp

【33】5ND827517 Plate, lock

【3】N0902619 Six angle combined bolt

【22】N10751101 Bolt, hexagon

【4】N90511505 Nut, self-locking hexagon

【34】N90874701 Bolt, countersunk in

【31】N90931602 BOLT

【16】N90969901 Bolt, hexagon insert

【40】WHT007341 NUT
