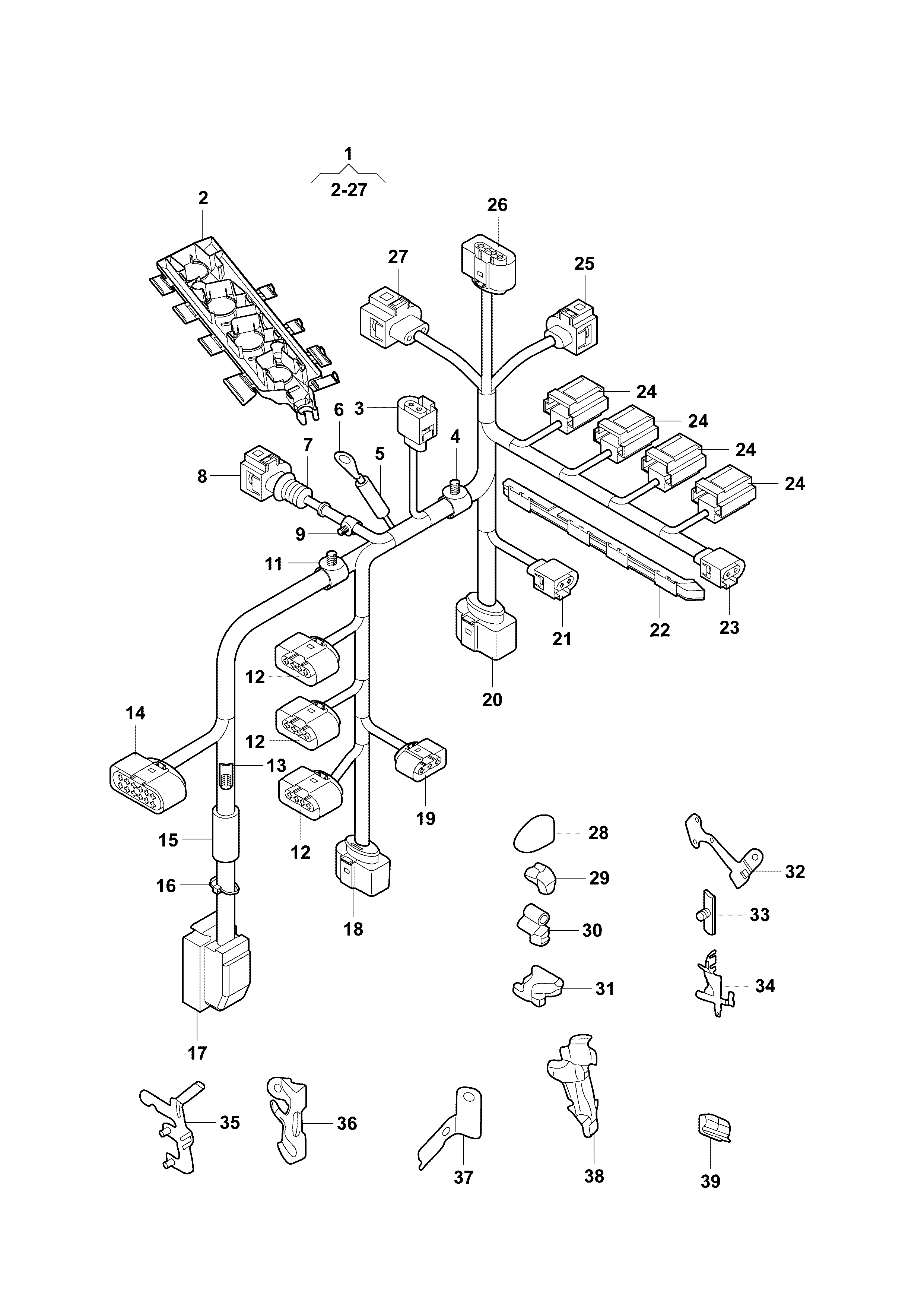

Harness-motor

【2】036971047B Duct-cable Connector Ignition coil Plug sub-assy

【2】036971047C Duct-cable Connector Ignition coil Plug sub-assy

【22】036971824A Duct-cable

【24】06A973722 Housing-flat Interlock-contact Possible single duct: Cooperate as needed:

【31】180971858D Bracket-cable

【1】18D971627AC Harness-motor D-20.01.2014

【1】18D971627AD Harness-motor D-20.01.2014

【1】18D971627AM Harness-motor M CUC 060 798

【1】18D971627F Harness-motor

【1】18D971627G Harness-motor

【1】18D971627K Harness-motor

【1】18D971627N Harness-motor D-01.08.2012

【1】18D971627P Harness-motor D-01.08.2012

【1】18D971627Q Harness-motor D -20.01.2014

【1】18D971627R Harness-motor

【1】18D971627S Harness-motor

【1】18D971627T Harness-motor

【30】1H0971615AB Bracket-cable

【17】1J0906379B Cap & seal-flat

【28】1J0971883B Cover Cover-shock absorber strut Pin-weld

【8】1J0973081 Housing-flat

【26】1J0973702 HOUSING

【27】1J0973703B Housing-flat

【25】1J0973704 Housing-flat

【20】1J0973713 Socket-flat contact

【23】1J0973722 Housing-flat

【21】1J0973722A Housing-flat

【19】1J0973724 Receptacle, flat contact

【14】1J0973837 Housing-flat

【39】1K0971615CJ Duct-cable

【36】1K0971858AT PLATE

【33】1K0971858BE Clip-mtg Gear box

【32】1K0971858BF Bracket-cable

【34】1K0971858R PLATE

【11】3D0971838N Cable strap Gear-fan For hole/material thickness:

【18】3D0973703 Housing-flat

【13】4B0971848 Bracket-cable:

【15】533971791 Pad-foam

【35】5Q0971858A BRACKET-ENGINE SUPP*

【9】N90060301 Cable strap For hole/material thickness:

【7】N90681901 End piece-bellows

【16】N90937702 Gear
