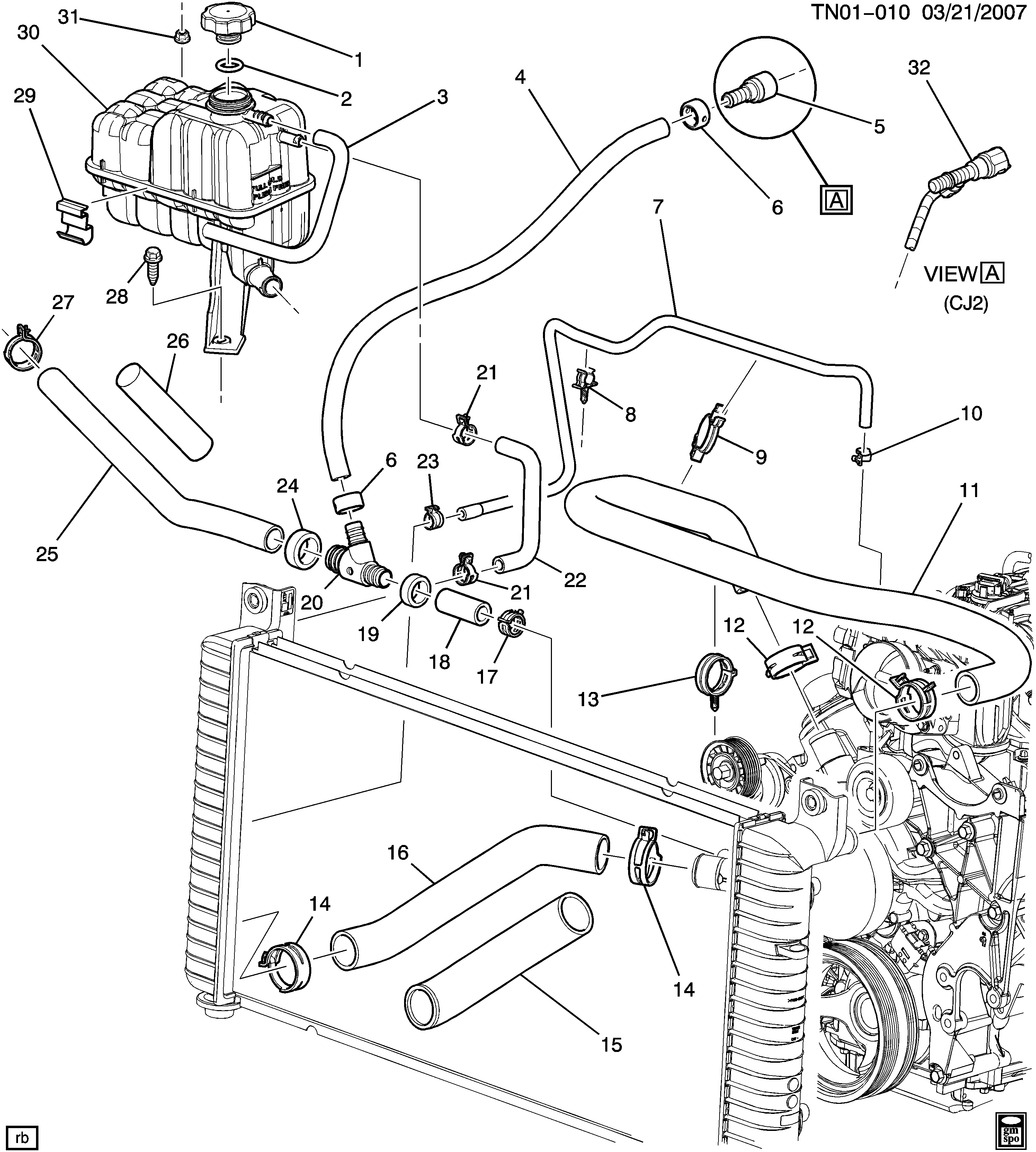

HOSE,RAD SURGE TK OTLT(INCLS 4-6,18-20,24,26,32)

【28】11516589 Bolt, hex. headpin with conical spring washer, M6X1X30, 29 threaded, outer diameter 17,9.8,7114 M, Z

【21】11570381 Band, spg, nominal diameter, width 15mm, material 6298M (radiator reserve tank inlet hose)

【17】11570616 Clip (8.948)

【23】11571140 Clamp, steering gear boot (1.240)

【8】15041309 Clip, radiator reserve tank inlet hose (19 parts) (1.166)

【1】15075118 Cap, radiator filler (english/french label) (1.240) (AC-DELCO# RC98)

【10】15734742 Clamp, radiator

【30】15808715 TANK,RAD SURGE(INCLS 3,29)(ACDelco #15808715)

【32】25911556 HOSE,AUX HTR OTLT FRT(PART OF 25)(SEE GROUP 09.000 HOSE ASM-AUX A/C EVPR & AUX
