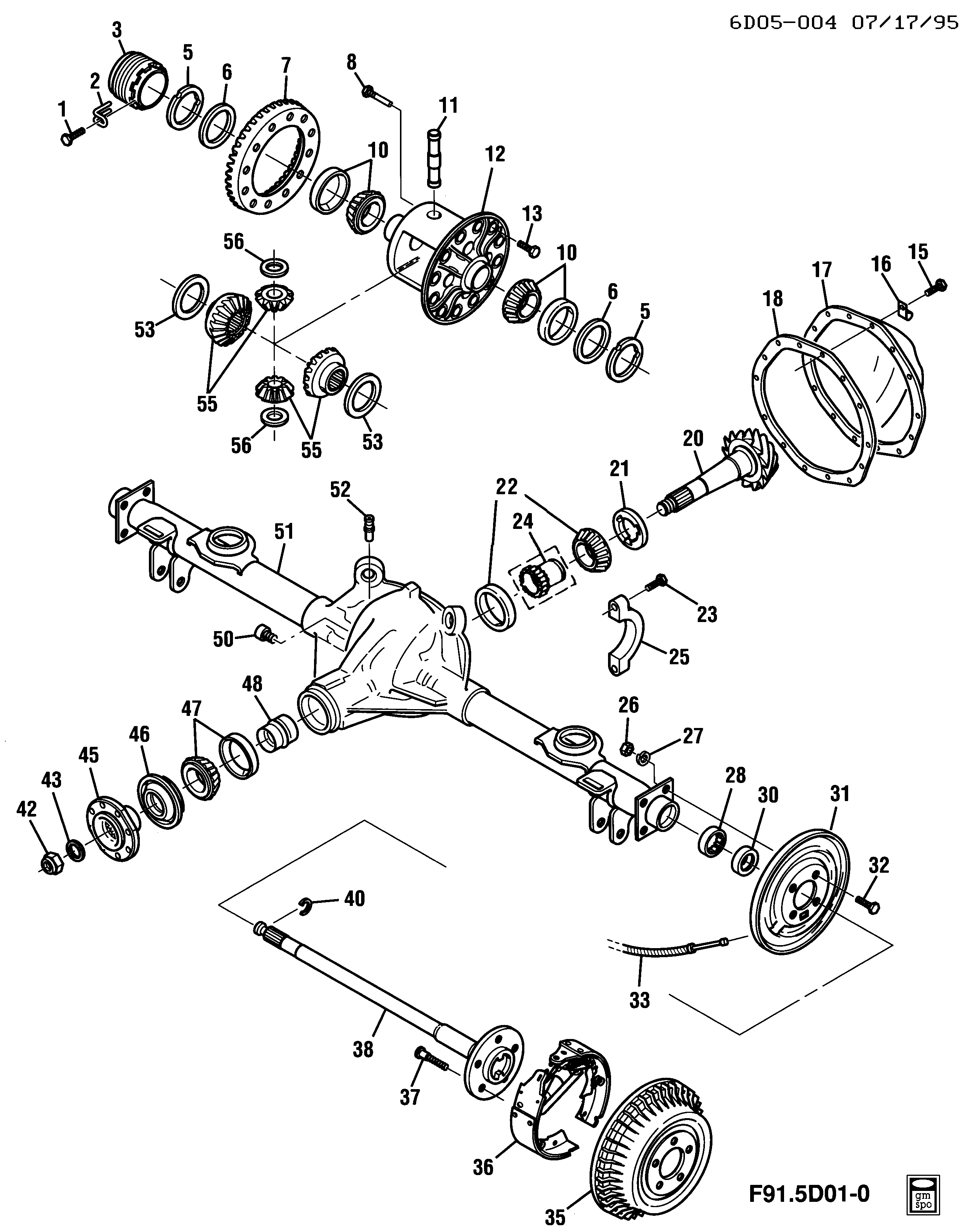

SEAL,R/AXL SHF(OIL)(ACDelco #291-316)

【10】11505123 Bearing (including outer and inner ring) (timken, JLM506849-JLM506811, 55mm inner diameter X 90mm ou

【15】11515755 BOLT,HEX,M8X1.25X16,15 THD,18 O.D.,10.9,7114M(RAD SUPT)(T/W 12345493 REPLCS 2553

【13】11610549 Bolt, rear differential ring (7/16-20) (* package 4)

【48】12479162 Spacer (rr axle), drive pinion bearing (fr. 062-. 068 thick)

【48】14012691 Spacer, differential drive pinion bearing (35.5 id X 16.3 width)

【56】14012699 Washer, differential pinion thrust (ring) (23.75 outer and inner)

【5】14012725 Shim (6. 5mm)

【5】14012730 Shim (6. 5mm)

【5】14012752 Shim (6. 5mm)

【3】14012753 Nut, differential bearing adjusting (M86X1.5)

【21】14038010 Repair kit (. 5080-. 5842) (9.25)

【21】14038011 Repair kit (. 6096-. 7112) (9.25)

【21】14038012 Repair kit (. 7366-. 8382) (9.25)

【21】14038013 Repair kit (. 8636-. 9398) (9.25)

【12】14038087 Case, differential (for non-canadian order) (without gear)

【11】14039025 SHAFT,DIFF P/GR(PART OF 1)(144.78 MM)(ACDelco #14039025)

【18】15807693 GASKET, R/AXLE HSG COVER

【10】23312178 Bearing (lateral) (including outer and inner) (timken, LM501349-LM501314, inner diameter 41.28 X out

【38】26028502 SHAFT,R/AXL(8.50/8.625 R/GR)(ACDelco #26028502)

【46】26033578 SEAL,DIFF DRV P/GR(ACDelco #26033578)(8.5 DIA R/GR - SAG Y04)

【18】26063649 Gasket, rr. axle housing cover

【42】88891763 Nut, front differential drive pinion (M10) (* package2) (5.595)
