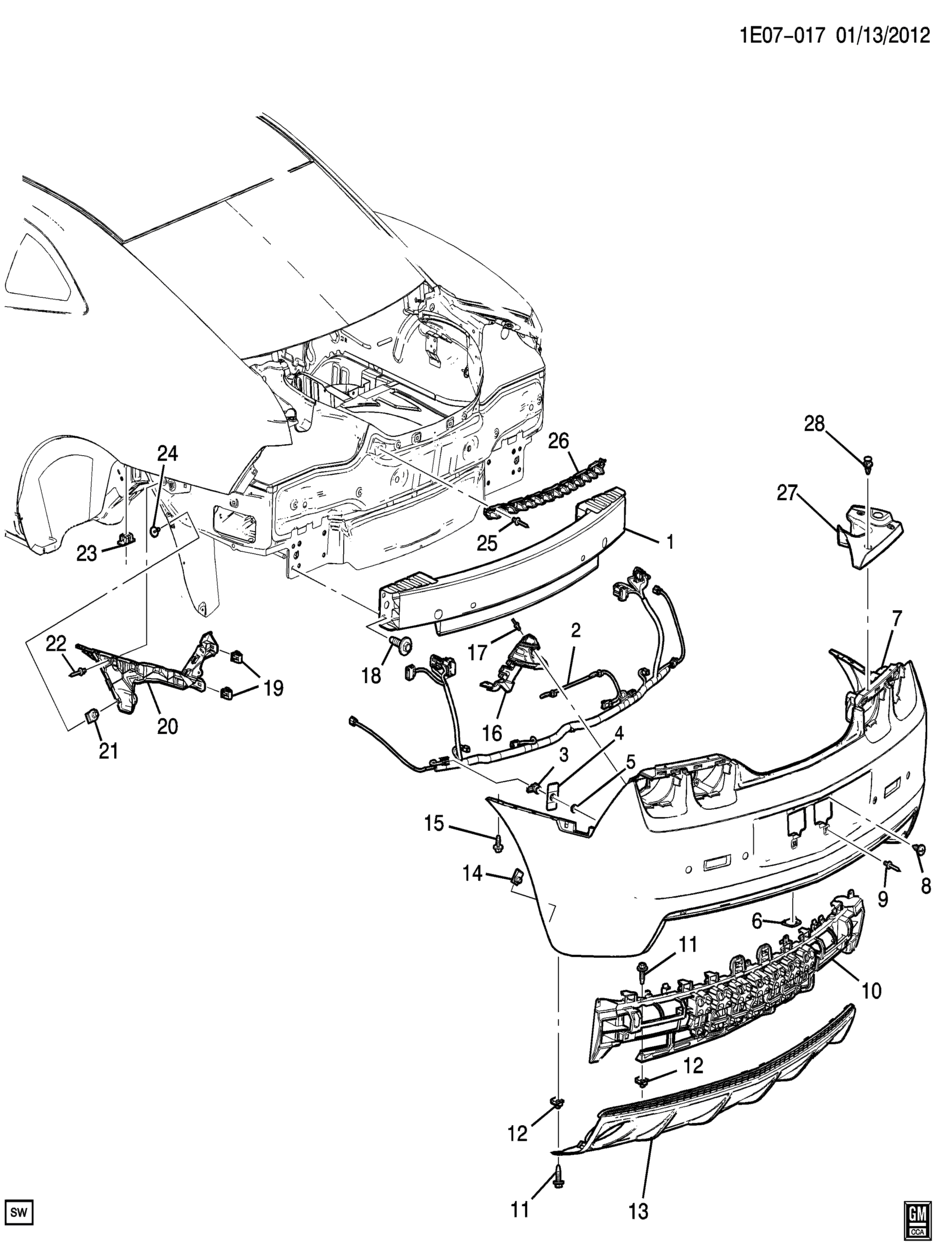

Rivet (center bracket), rear bumper rivet (rivet, cyl -5/32 , 4.1-4.4 hole, 3.5-9.5 fastening th

【021】11513599 NUT,U-TYPE,M4.2X1.41,0.65-3.80 PNL THK,PZ(HTR & A/C CONT)(ACDelco #11513599)

【009】11516807 POP rivet, diameter 4.8, length 19.9, outer diameter 16, hole 5-5.25, clamping range 1-9, aluminum,

【024】11570637 BOLT

【011】11589015 BOLT,HWH W/FL WA M4.2X1.41X20,12.5 O.D.,DOG PT,6010M,7253M(STRG COL WRG HARN CON

【028】11589293 RETAINER,PUSH-IN,FITS 8.5 DIA HOLE,4.5-7 THK PNL,NYLON 6/6 GMP.PA66.0(S/RL SPH S

【018】11589407 BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT.(R/D HGE)

【015】11609465 Bolt, HWH, M4.2X1.41X18, 12.5 od, 6010 M, PS (for parts of 1) (8.977)

【023】11609952 Clamp-engine bottom deflector

【007】22766176 FASCIA,RR BPR(INCLS 4,15,16)(MOLDED PLUS REINFORCEMENTS)(ON NON REAR VIEW CAMERA

【007】22766177 FASCIA,RR BPR(INCLS 4,15,16)(SUB ASSEMBLY)(PAINT TO MATCH)(W/ B/U LAMP SLOTS)(ON

【006】22766258 Cover, rear bumper skin (for vehicles with or without camera)

【007】22780711 Rivet (including 4,16, 17) (sub-assy), rear bumper

【010】22846710 ABSORBER,RR BPR FASCIA ENGY

【001】22876136 BAR,RR BPR IMP

【019】92223721 Clip (part of 1) (7.831)

【026】92237347 SUPPORT,RR BPR FASCIA(7.831)

【016】92244076 REINFORCEMENT,RR BPR FASCIA(PART OF 6)

【020】92247763 GUIDE

【020】92247764 GUIDE

【008】9423101 Screw, tapping M6.3X1.81X16, outer diameter 14.55, 7114 M, PZ0R (front license plate)
