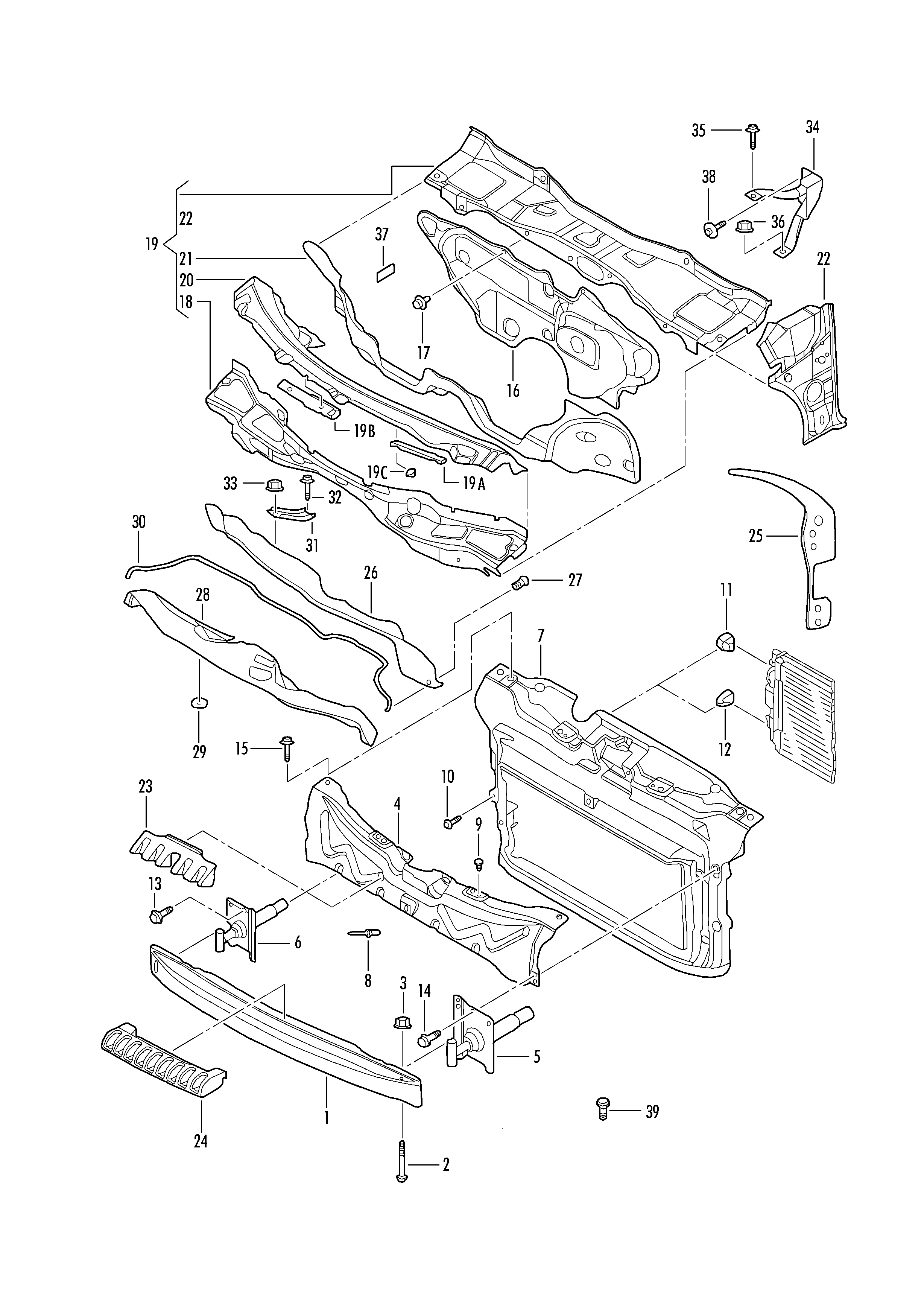

BRACKET ASSY-AIR INTAKE

【20】1C0803159E Reinforcement, bulkhead

【21】1C0803187A Frame, bulkhead

【1】1C0805551R MEMBER,CROSS

【1】1C0805551S MEMBER,CROSS

【7】1C0805594R Bracket, frt w/water Bracket, cooler Porsche panamera: F 9C-8-562 687

【4】1C0809424H SPACER-MAIN SHAFT

【30】1C0819142 SEALING GASKET

【11】1J0806155E Bracket Radiator For car models w/air condition

【12】1J0806157F BRACKET,HARNESS

【16】1J1721039T Plate, transverse

【27】N01028712 SCREW

【32】N0143441 Bolt, hexagon shoulder, Self-locking

【3】N0150816 NUT

【2】N10141003 BOLT

【19C】N10609204 NUT

【36】N90183802 Nut, self-locking hexagon

【8】N90437401 RIVET-BLIND

【35】N90471802 SCREW

【33】N90488001 NUT

【15】N90628902 BOLT

【29】N90796502 PROTECTOR

【10】N90808201 Bolt, hexagon no.1

【9】N90817902 NUT

【13】N90999502 BOLT
